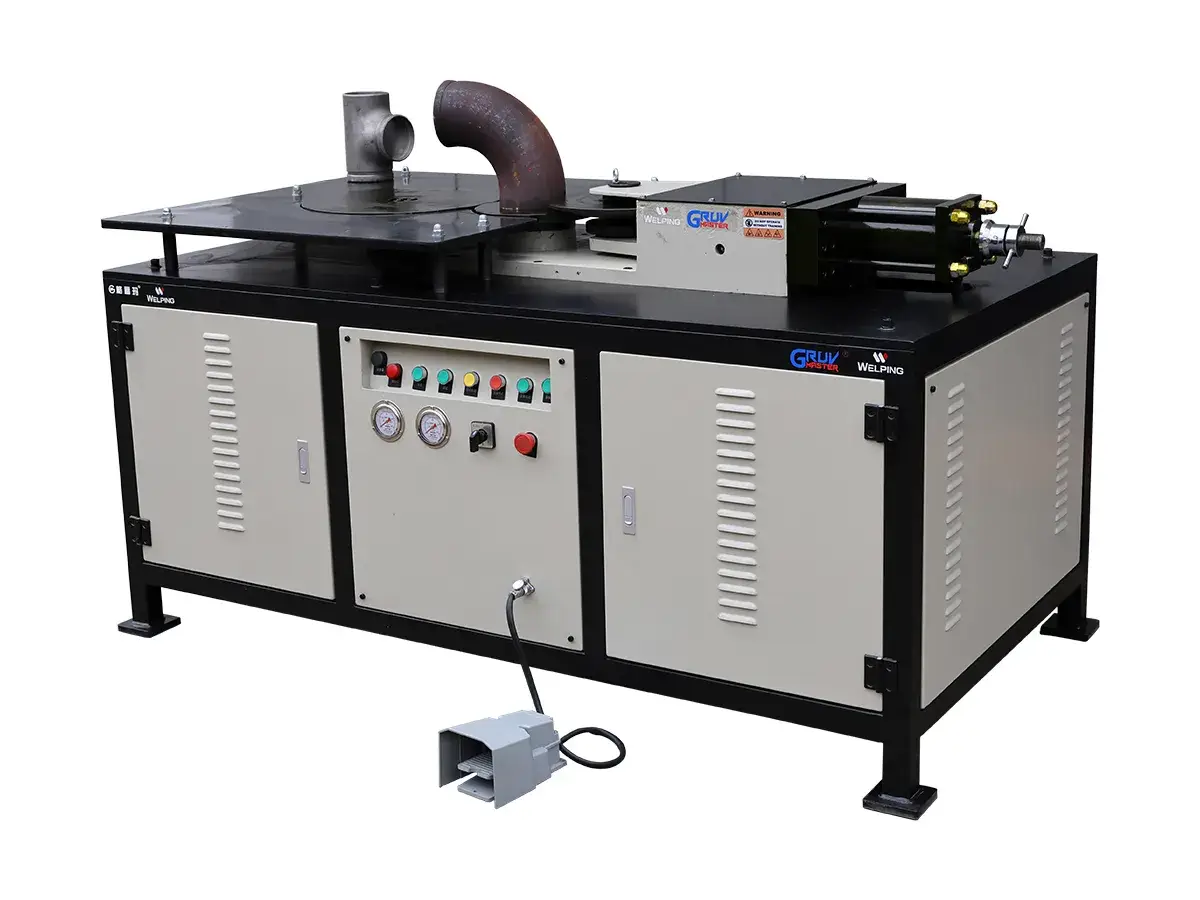

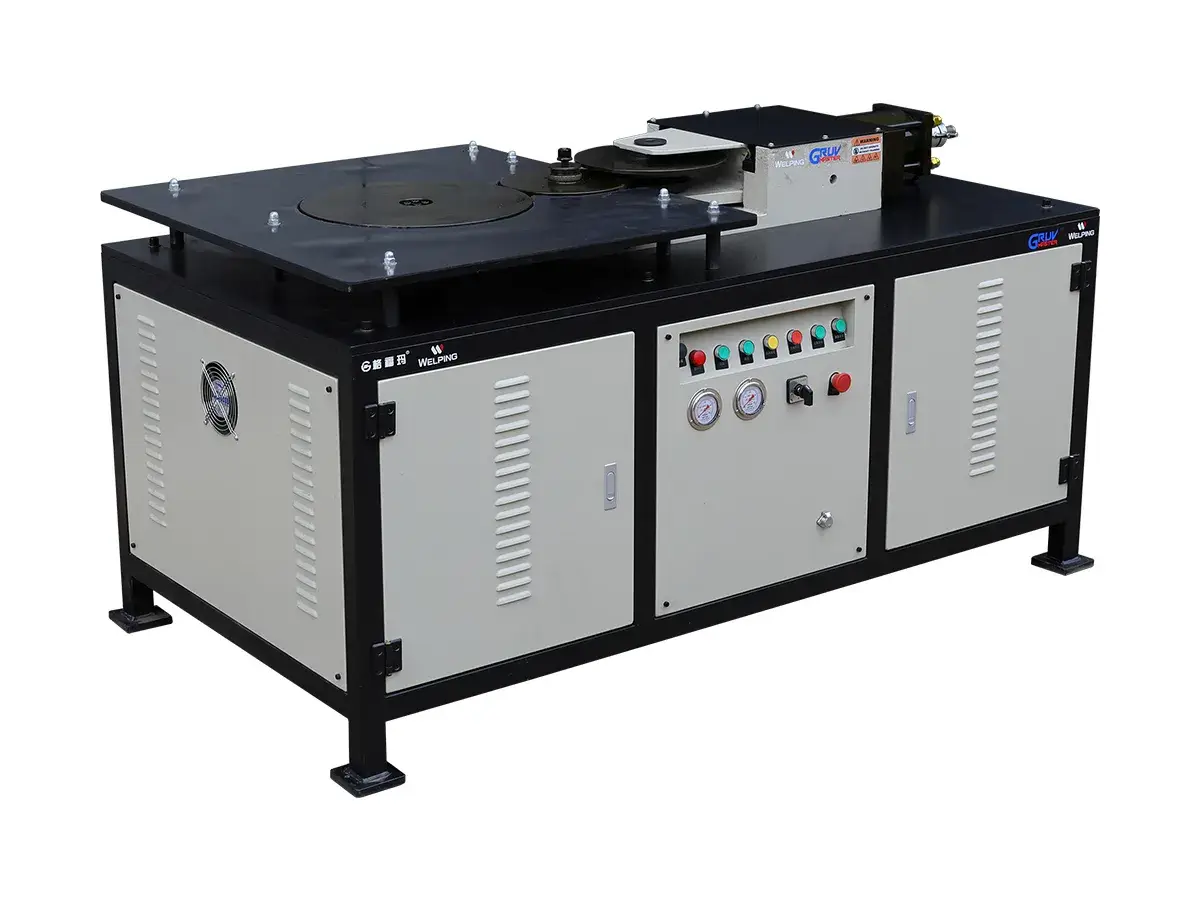

GF-2X 2"–12" Pipe Fitting Roll Grooving Machine
GF-2X pipe fitting roll grooving machine is designed for grooving 2"–12" pipe fittings, including elbows, tees, and reducers. It meets the requirements of engineering projects with batch fitting processing needs. The independent hydraulic and electrical control systems provide stable operation. The grooving machine features a horizontal roller structure and anti-pipe-slip design to maintain consistent groove dimensions and reliable joint performance.
- Capacity 2"–12", SCH 10/40
- Max. Wall Thickness 10 mm
- Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Specifications
| Model | |
| Applicable Materials | Carbon Steel Pipe Stainless Steel Pipe |
| Capacity | 2"–12", SCH 10/40 |
| Power Requirements | 380 V, 50 Hz |
| Max. Wall Thickness | 10 mm |
| Spindle Speed | 23 RPM |
| Motor Power | 2200 W |
| Packaging Dimensions (L×W×H) | 194 × 110 × 115 cm |
| Gross Weight | 1194 kg |
Features
-
- Independent hydraulic station and electrical control system provide stable operation and direct response.
- The system supports continuous and controlled grooving, improving processing consistency.

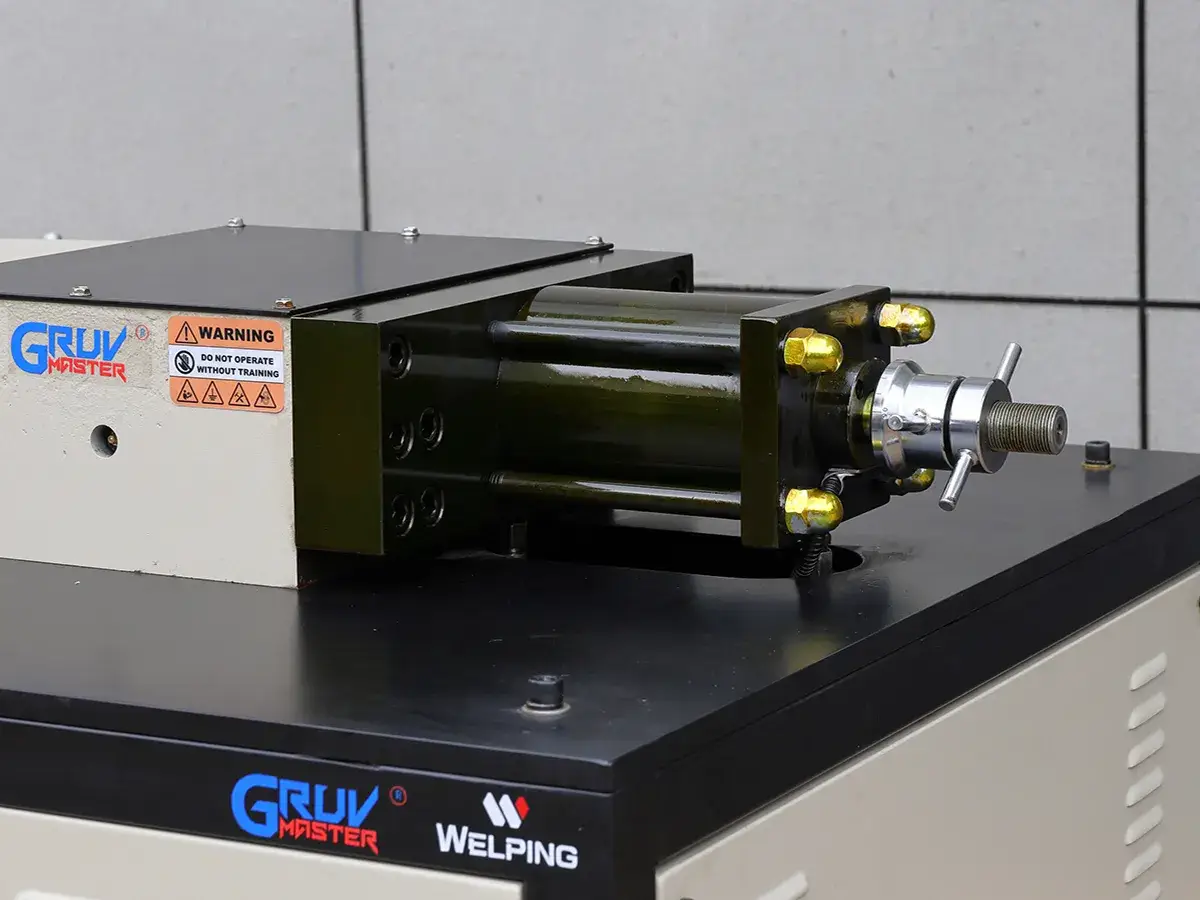

Hydraulic System -

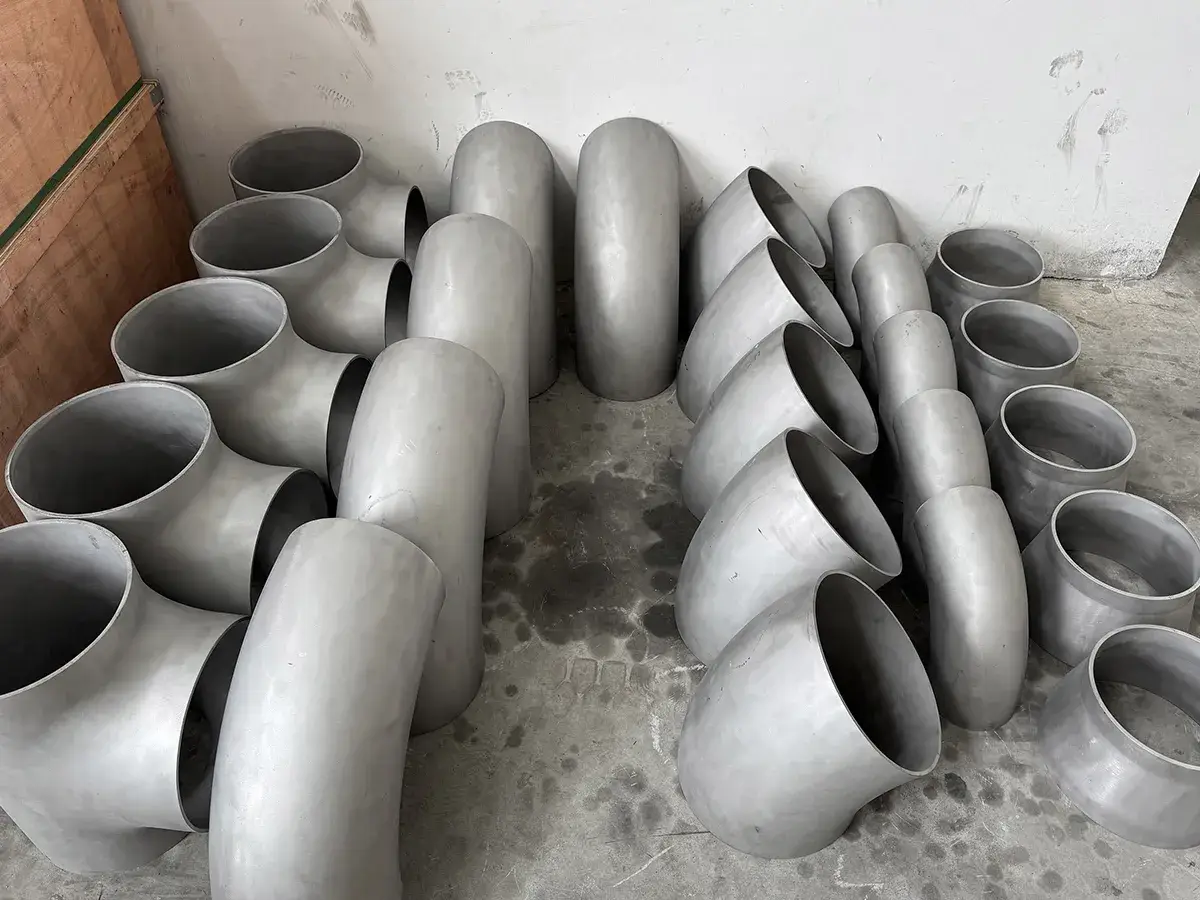

- Suitable for carbon steel and stainless-steel fittings.
- Complies with OGS (AWWA C606) standard requirements.
Compatible Materials -

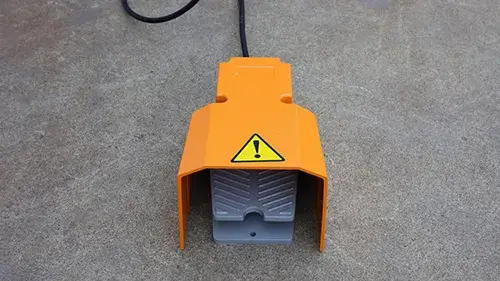

Foot Switch -

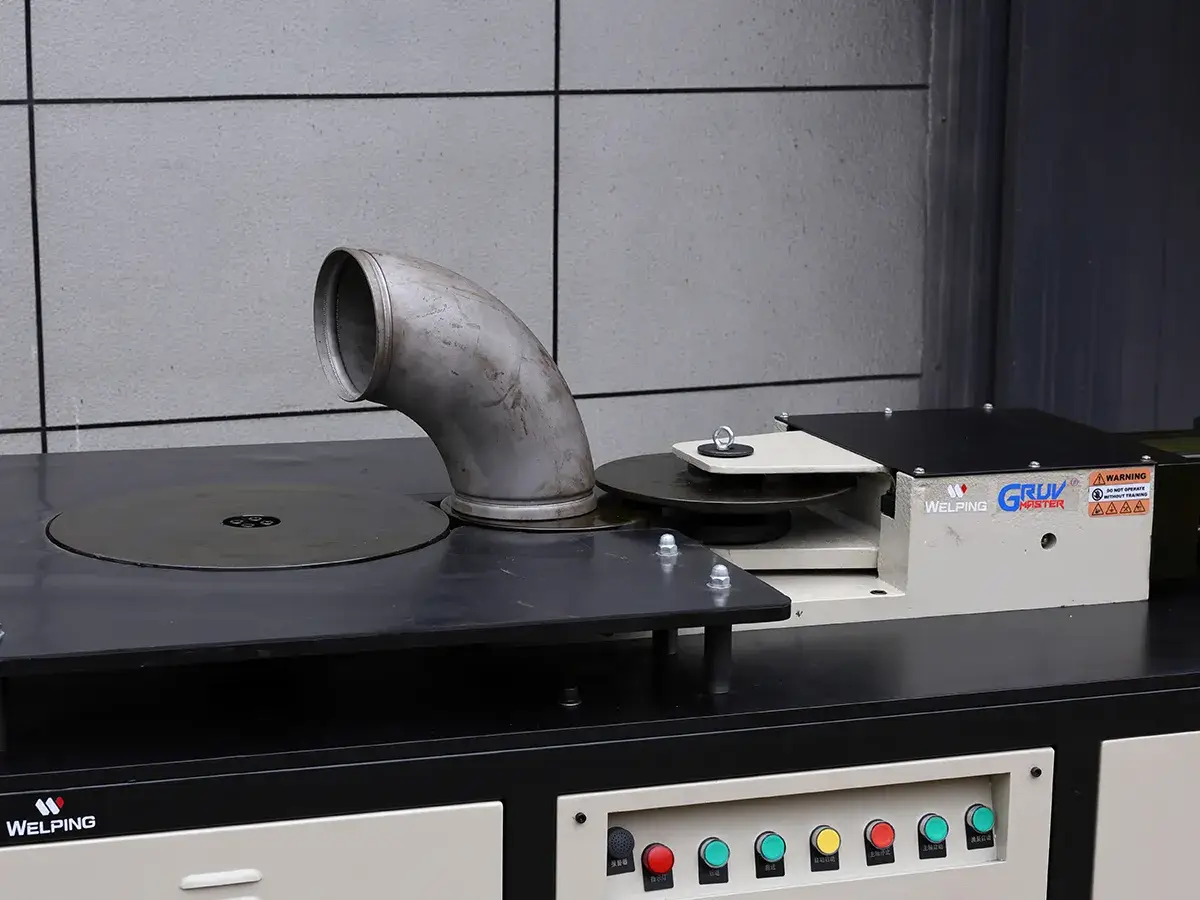

Roller Assembly
More
Standard Roll Sets Specifications
| Description | Net Weight |
| Drive Roll 1 ½" (O.D. 48.3 mm) | 1.50 kg |
| Drive Roll 2"–2 ½" (O.D. 60.3–73.0 mm) | 1.50 kg |
| Drive Roll 3"–3 ½" (O.D. 88.9–101.6 mm) | 2.00 kg |
| Drive Roll 4"–5" (O.D. 114.3–141.3 mm) | 1.20 kg |
| Drive Roll 6" (O.D. 168.3 mm) | 3.00 kg |
| Drive Roll 8"–12" (O.D. 219.1–323.9 mm) | 3.00 kg |
| Drive Roll 14"–16" (O.D. 355.6–406.4 mm) | 4.00 kg |
| Drive Roll 18"–24" (O.D. 457.2–609.6 mm) | 2.10 kg |
| Groove Roll 2"–5" (O.D. 60.3–141.3 mm) | 14.00 kg |
| Groove Roll 6" (O.D. 168.3 mm) | 14.00 kg |
| Groove Roll 8"–12" (O.D. 219.1–323.9 mm) | 13.50 kg |
