Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

1"–8" Hydraulic Roll Groover, RG-1X
  • 1"–8" Hydraulic Roll Groover, RG-1X
  • 1"–8" Hydraulic Roll Groover, RG-1X
  • 1"–8" Hydraulic Roll Groover, RG-1X
  • 1"–8" Hydraulic Roll Groover, RG-1X

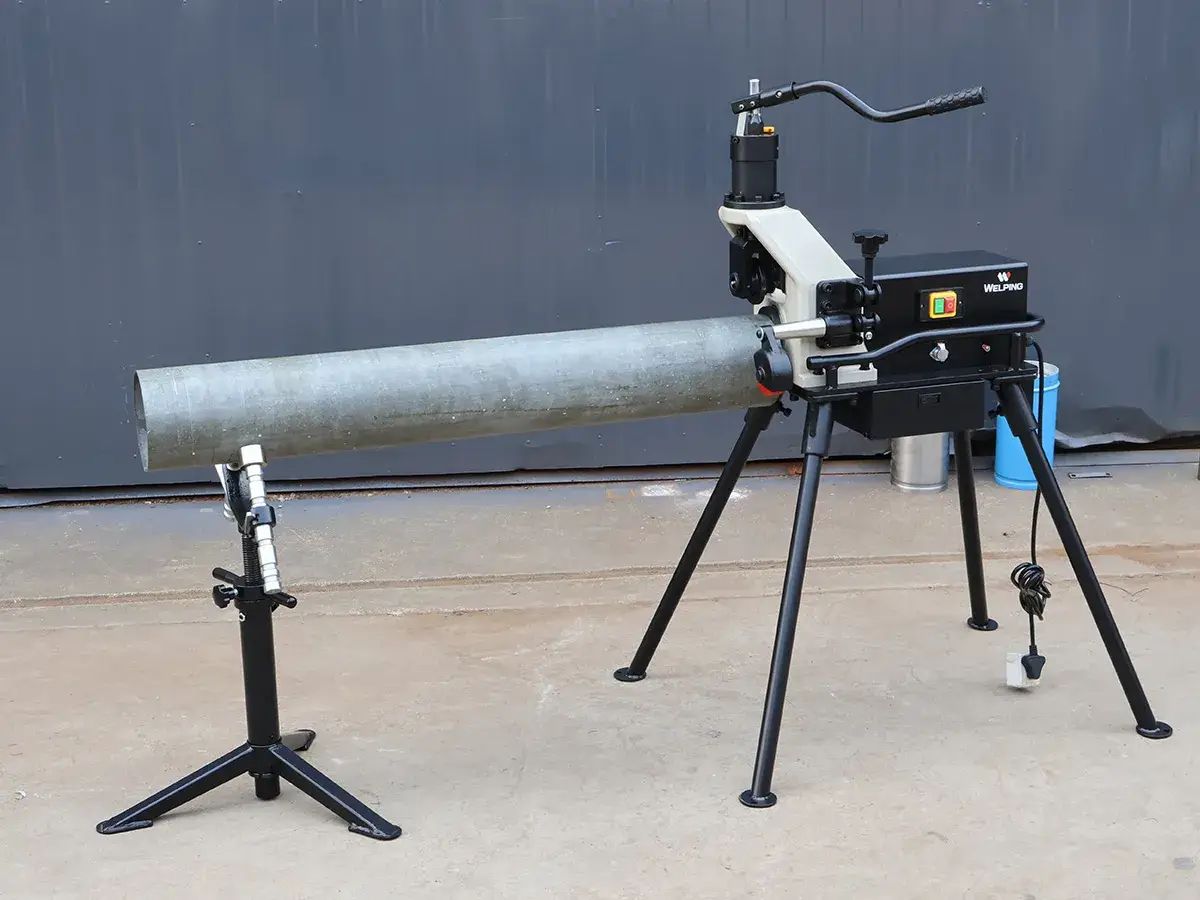

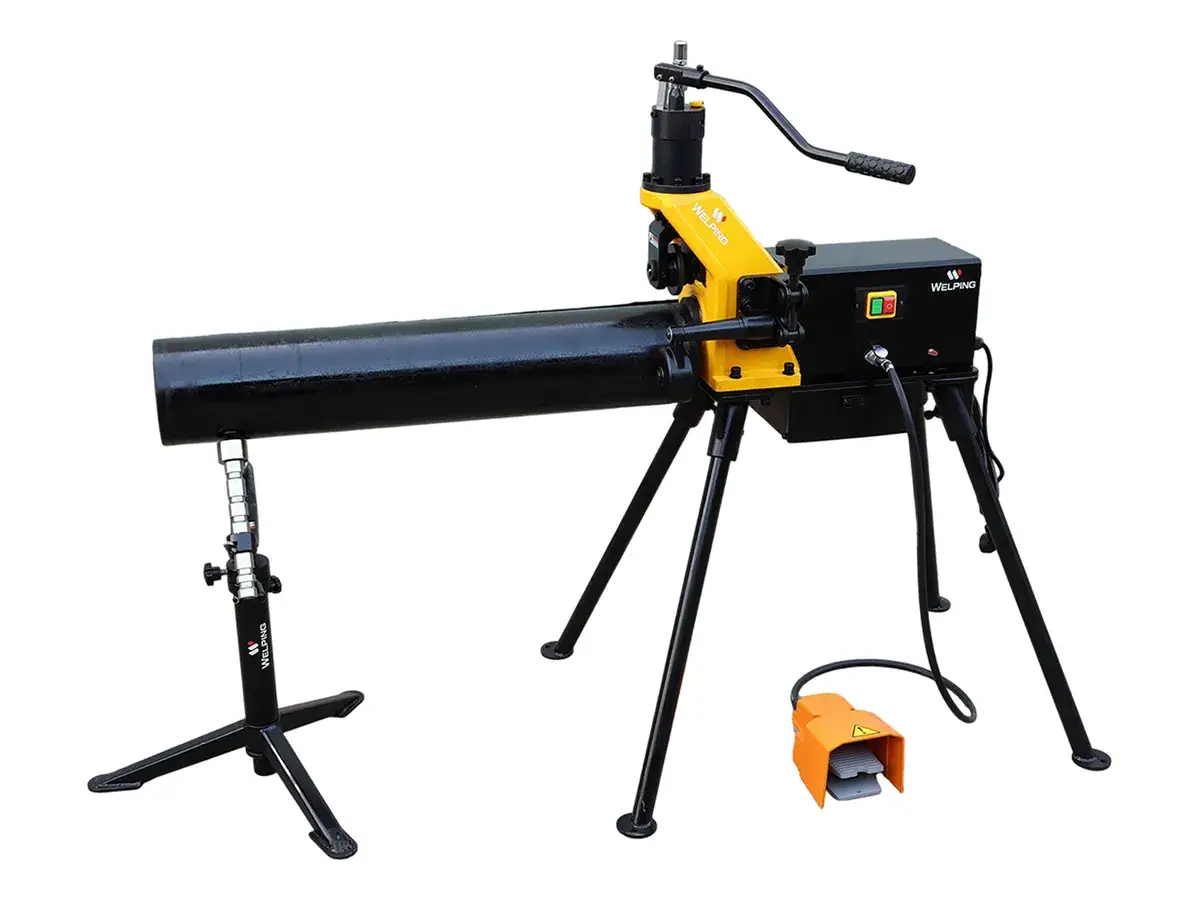

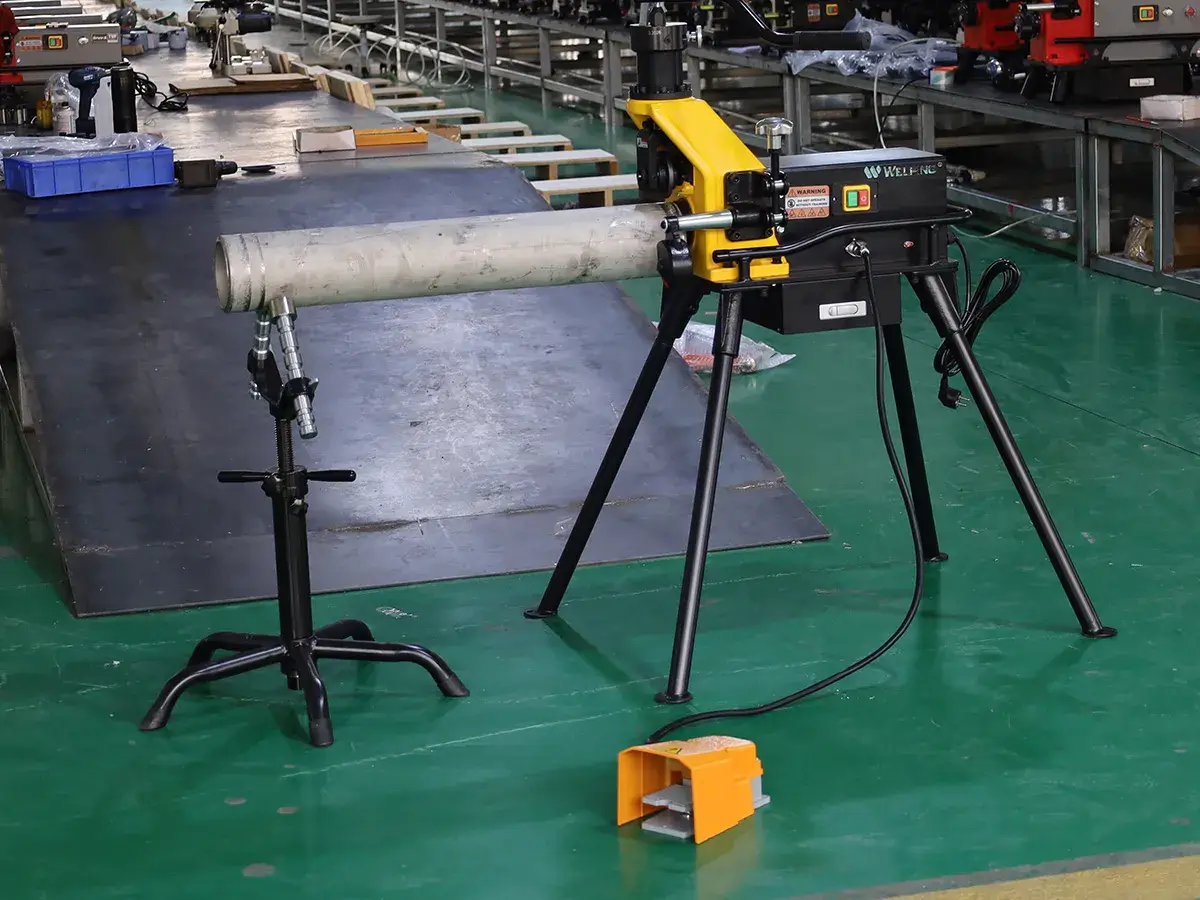

RG-1X 1"–8" Hydraulic Roll Groover

RG-1X is an integrated electric hydraulic roll groover that combines the motor, hydraulic feed pump, foot switch, and pipe stand into a single unit. It is widely used for fire protection systems, water supply systems, and pipe fabrication workshops.

  • Capacity 1"–8" (DN25–DN200 / O.D. 33–219 mm) Schedule 10/40
  • Max. Wall Thickness 8 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers PDF
Specifications
Model RG-1X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 1"–8" (DN25–DN200 / O.D. 33–219 mm) Schedule 10/40
Max. Wall Thickness 8 mm
Spindle Speed 23 RPM
Motor Power 800 W
Drive & Actuation Gear reducer drive with integrated hydraulic pump
Packaging Dimensions (L×W×H) 72 × 42 × 78 cm
Gross Weight 107 kg
Features
    • Hydraulic Pump
      Hydraulic Pump
      • High-quality sealing components reduce the risk of oil leakage during continuous operation.
      • Precision-machined cylinder maintains dimensional accuracy for smooth and reliable performance.
      • Surface-hardened piston rod improves wear resistance and extends service life.
      • Built-in groove depth adjustment rod enables quick parameter adjustment on site.
      • Dedicated hydraulic oil offers excellent resistance to aging and contamination, reducing maintenance requirements and downtime.
    • Cast Iron Housing
      Cast Iron Housing
      • The hydraulic pump, roll set, and pipe stabilizer are protected by heavy-duty cast iron housings.
      • High-rigidity cast iron construction resists deformation and performs reliably in heavy-duty operation.
      • Custom machine colors are available.
    • Roll Sets
      Roll Sets
      • Available sizes: 1"–1½", 2"–6", 3"–6", and 8".
      • Manufactured from high-strength steel with a hardened surface for excellent wear resistance.
      • Designed for consistent grooving performance during continuous operation.
    • Pipe Stand
      Pipe Stand
      • Quick adjustment lever adapts easily to different pipe diameters.
      • Precision-machined guide slots with a locking mechanism provide secure and accurate adjustment.
      • Ball transfer head supports smooth pipe rotation and forward/backward movement.
      • Adjustable stand height for different working requirements.
      • Three-leg and five-leg stands are available.

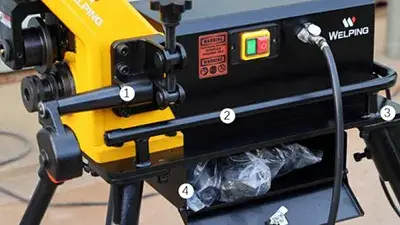

    • Base & Components
      Base & Components
      • Integrated steel base provides excellent rigidity and resistance to deformation.
      • Built-in toolbox keeps roll sets and commonly used tools organized and within easy reach.

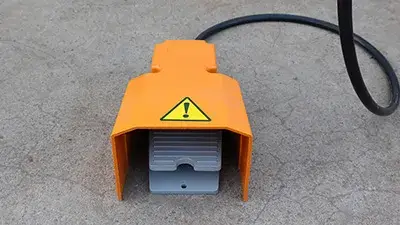

    • Foot Switch
      Foot Switch

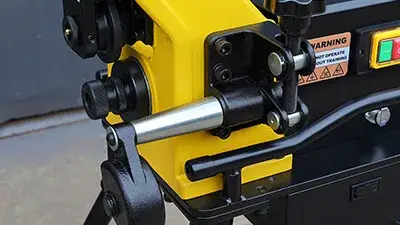

    • Pipe Stabilizer
      Pipe Stabilizer
More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 1"–1 ½" (O.D. 33–48 mm) 1.10 kg
Drive Roll 2"–6" (O.D. 60–168 mm) 1.30 kg
Drive Roll 3"–6" (O.D. 89–168.3 mm) 1.40 kg
Drive Roll 8" (O.D. 219 mm) 1.40 kg
Groove Roll 1"–1 ½" (O.D. 33–48 mm) 0.40 kg
Groove Roll 2"–6" (O.D. 60–168 mm) 0.45 kg
Groove Roll 8" (O.D. 219 mm) 0.45 kg
