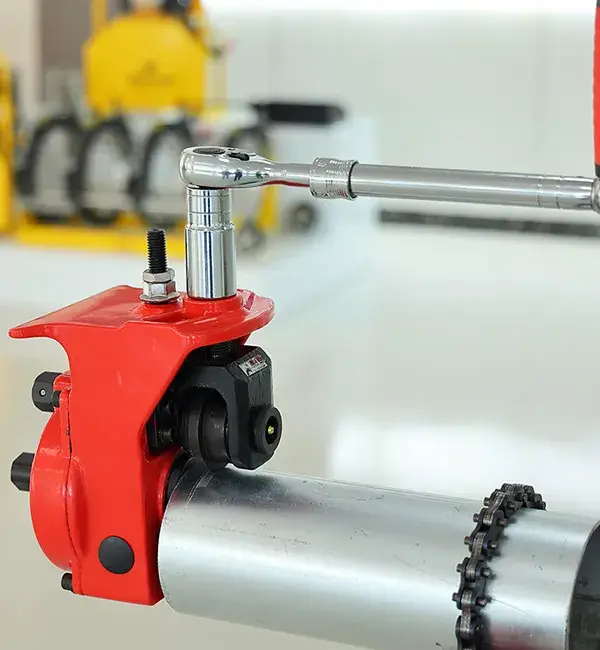

The manual roll groover is designed for hand-operated grooving or use with a pipe threading machine drive. It can also be used as an attachment for hydraulic roll grooving systems. The roll grooving machine applies radial pressure through upper and lower rollers, forcing the pipe wall material to plastically deform and form a circular groove at the pipe end for coupling connection. The grooving process produces no chips and does not affect the original pipe strength. Its compact structure supports easy transport and use in narrow spaces or job sites for medium-batch grooving operations. Its height can be adjusted according to site requirements. It is suitable for grooving 1"–12" (DN25–DN300) carbon steel and stainless steel pipes.
-
1"–12" Manual Roll Groover RG-1MRG-1M is a dual-operation manual roll groover designed for both hand operation and power-driven use.
Capacity 1"–12" (DN25–DN300 / O.D. 33.4–323.9 mm)Max. Wall Thickness 8 mm -
1"–6" Manual Roll Groover RG-2MRG-2M features a multifunctional design that can be used as a standalone manual roll groover or combined with a power drive unit or pipe threading machine for integrated operation.
Capacity Standard: 1"–6" (DN25–DN150 / O.D. 33.4–168.3 mm), Optional: 8"–12" (O.D. 219.1–323.9 mm) Roll SetsMax. Wall Thickness 7 mm -
1¼"–6" Manual Roll Groover RG-3MRG-3M is a compact combination-type manual roll groover. It supports both hand operation and connection with a pipe threading machine for powered use, adapting to different working methods.
Capacity 1 ¼"–4" (O.D. 42.2–114.3 mm) SCH 10/40;
5"–6" (O.D. 141.3–168.3 mm) SCH 10/20Max. Wall Thickness 7 mm -
2"–8" Hydraulic Roll Groover Accessory RG-H1XThe manual hydraulic roll grooving accessory is designed for use with a pipe threading machine.
Capacity 2"–4" SCH 10/40; 5"–8" SCH 10/20Max. Wall Thickness 6 mm -
2"–12" Hydraulic Roll Groover Accessory RG-H2XDesigned for use with a power drive unit or pipe threading machine, the heavy-duty manual hydraulic roll grooving assembly is suitable for 2"–12" steel pipe grooving.
Capacity Standard: 2"–12" SCH 10/40;
Optional: 1" Roll SetMax. Wall Thickness 10 mm
