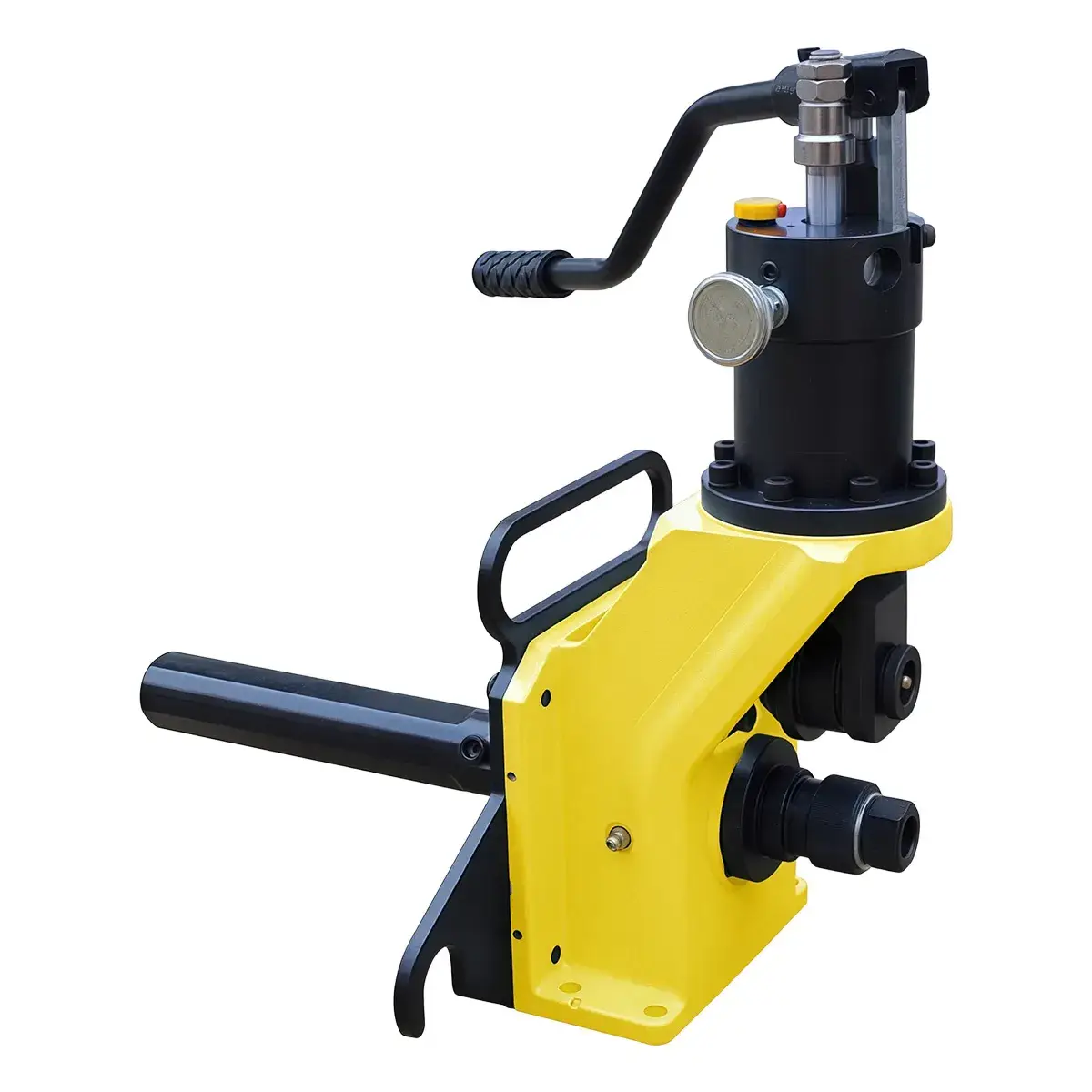

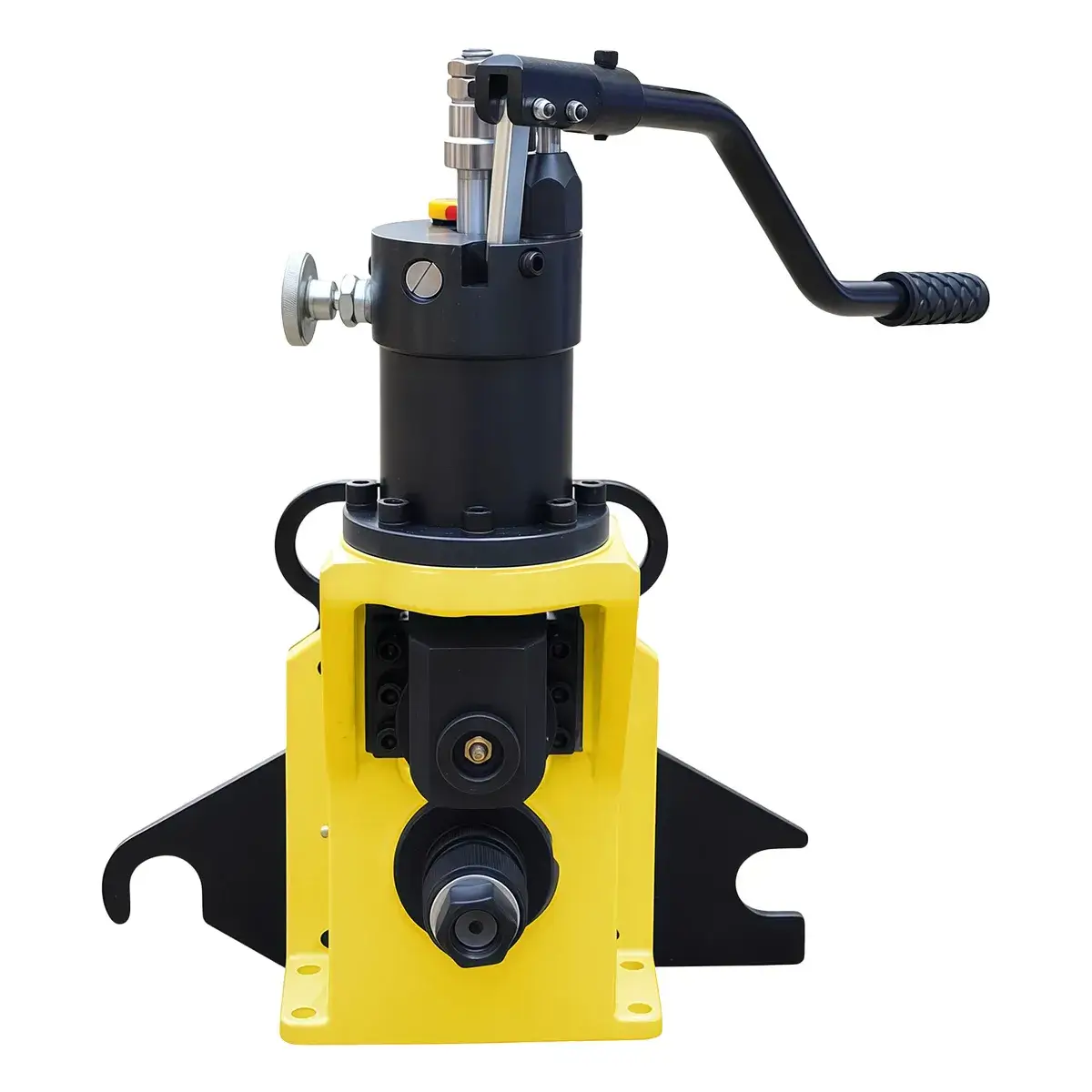

RG-H1X 2"–8" Hydraulic Roll Groover Accessory
The manual hydraulic roll grooving accessory is designed for use with a pipe threading machine. It replaces manual pressure with hydraulic feed control and provides more stable grooving as well as more consistent depth control. Its simple and easy-to-use structure is suitable for on-site continuous operation and standard steel pipe grooving tasks.
- Capacity 2"–4" SCH 10/40; 5"–8" SCH 10/20
- Max. Wall Thickness 6 mm
- Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Specifications
| Model | |
| Applicable Materials | Carbon Steel Pipe Stainless Steel Pipe |
| Capacity | 2"–4" SCH 10/40; 5"–8" SCH 10/20 |
| Max. Wall Thickness | 6 mm |
| Packaging Dimensions (L×W×H) | 37 × 32 × 52 cm |
| Gross Weight | 31 kg |
Features
-
- The grooving process is controlled by hydraulic feed instead of manual force.
- Operation is more stable and less dependent on operator experience.
- Once the groove depth is set, it can be locked for continuous processing without repeated adjustment.
Hydraulic Feed Instead of Manual Pressure -

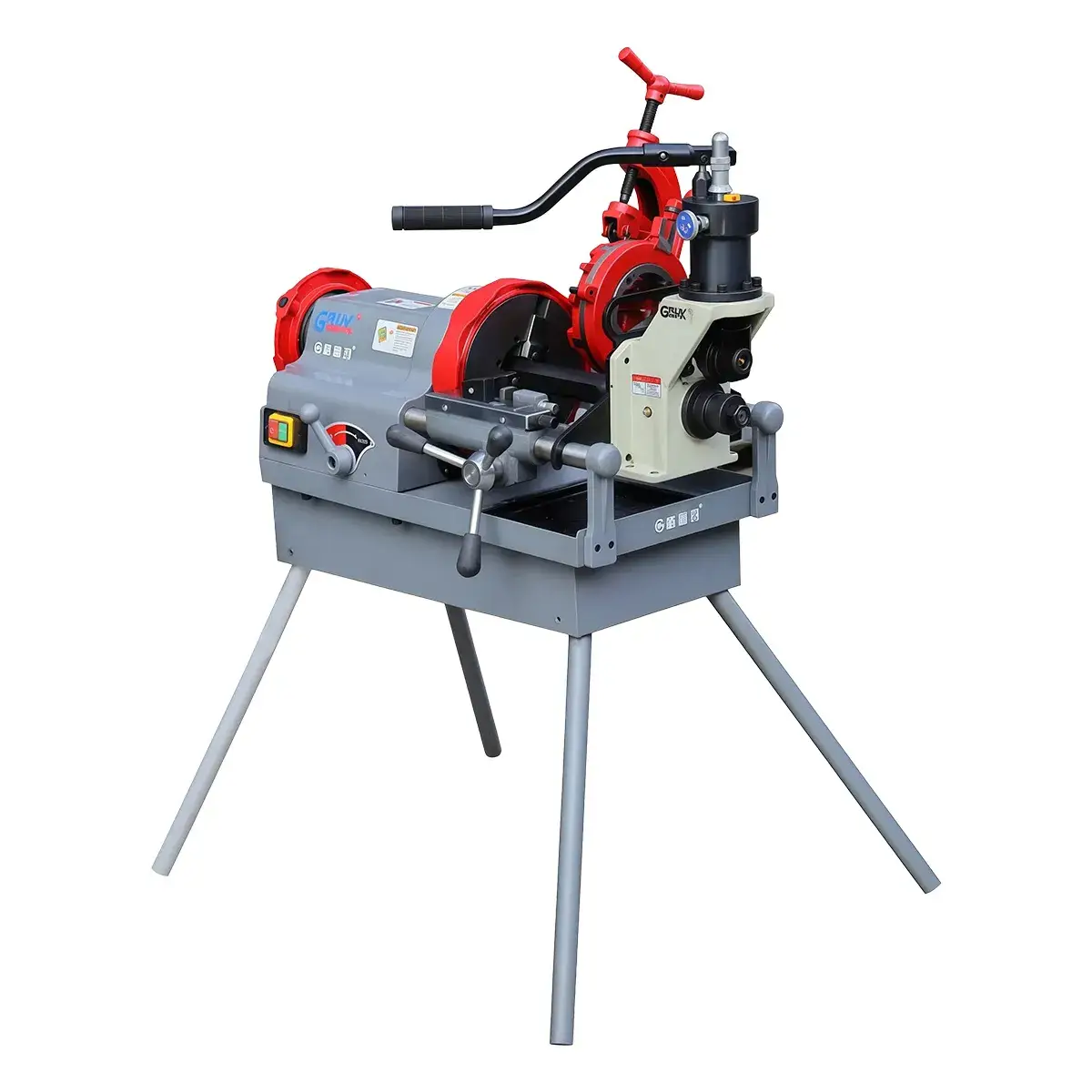

- Designed as an accessory unit, it connects directly to a 300-type pipe threading machine, reducing equipment investment and space requirements.
- By changing mounting plates, it can also be adapted to other threading machine models.
Direct Compatibility with Pipe Threading Machines
More
Standard Equipment
| Description | Net Weight |
| Drive Roll 2"–6" (O.D. 60.3–168.3 mm) | 1.30 kg |
| Drive Roll 8" (O.D. 219.1 mm) | 1.30 kg |
| Groove Roll 2"–6" (O.D. 60.3–168.3 mm) | 0.45 kg |
| Groove Roll 8" (O.D. 219.1 mm) | 0.45 kg |
| Drive Bar Adapter | 2.30 kg |
| Pipe Stand | 2.30 kg |

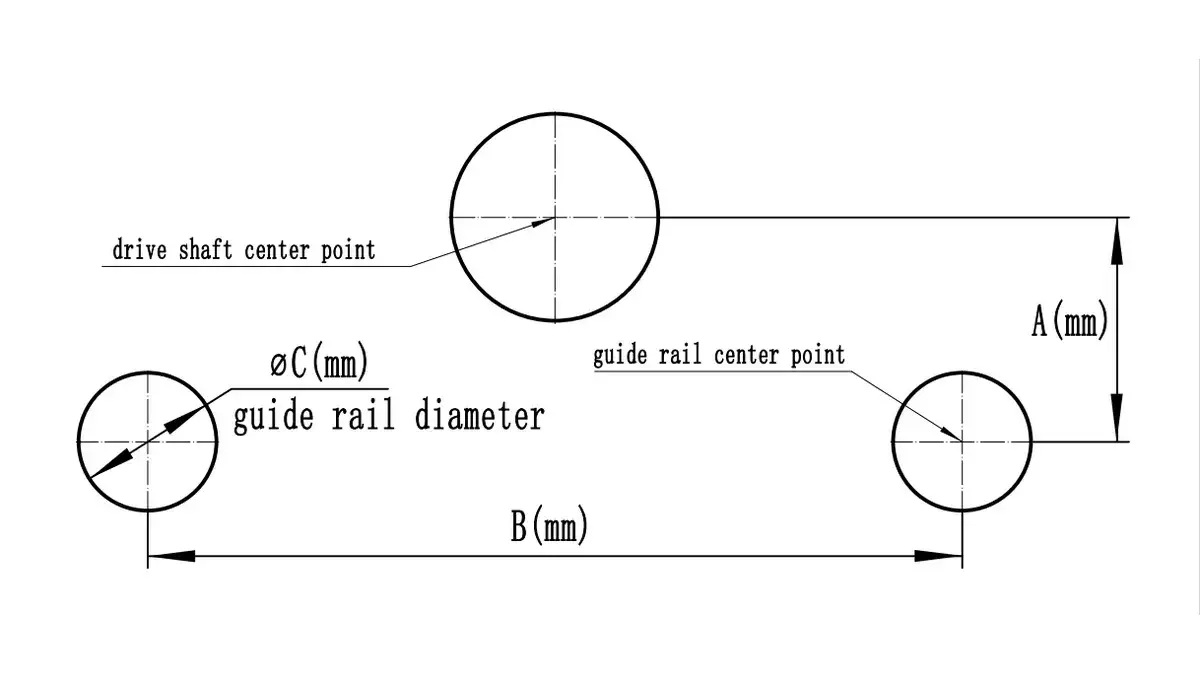

Mounting Plate & Transmission Alignment

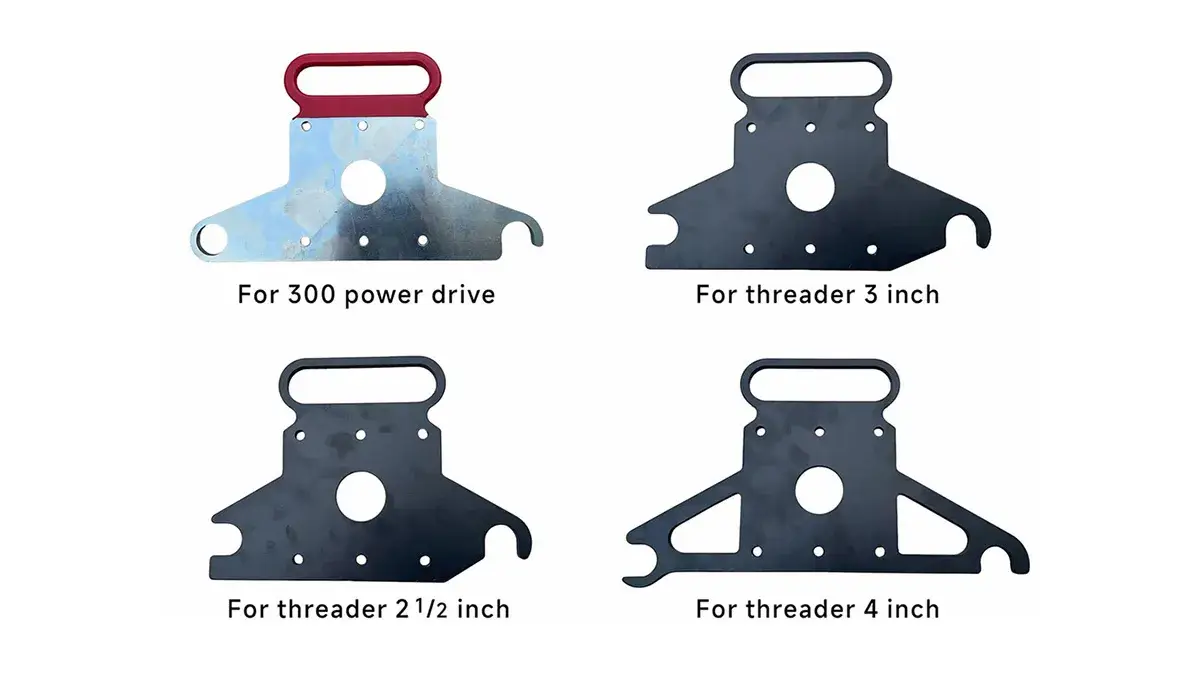

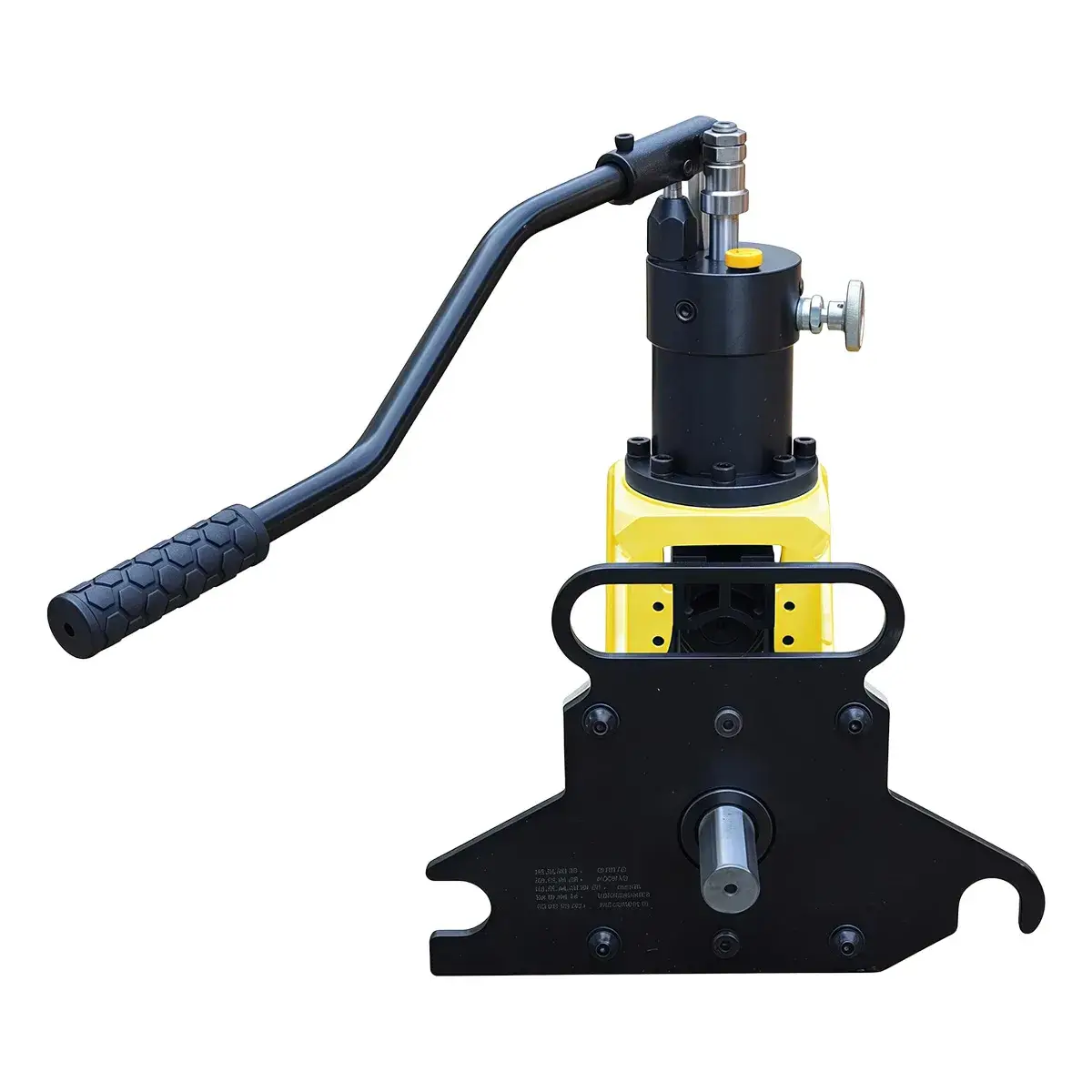

The RG-H1X and RG-H2X pipe grooving accessories are equipped with a detachable mounting plate. The plate is manufactured using precision laser cutting technology and is designed to adapt to different machine models and equipment combinations. It is compatible with various pipe threading machines and drive units, including 300-type drive systems as well as other well-known brands.
