Manual Roll Groover

Its compact structure supports easy transport and use in narrow spaces or job sites for medium-batch grooving operations.

1"–6" Manual Roll Groover, RG-2M
  • 1"–6" Manual Roll Groover, RG-2M
  • 1"–6" Manual Roll Groover, RG-2M
  • 1"–6" Manual Roll Groover, RG-2M
  • 1"–6" Manual Roll Groover, RG-2M
  • 1"–6" Manual Roll Groover, RG-2M
  • 1"–6" Manual Roll Groover, RG-2M

RG-2M 1"–6" Manual Roll Groover

RG-2M features a multifunctional design that can be used as a standalone manual roll groover or combined with a power drive unit or pipe threading machine for integrated operation. Its lightweight design keeps handling easy, while shaft replacement can be completed as quick as within about 30 seconds.

  • Capacity Standard: 1"–6" (DN25–DN150 / O.D. 33.4–168.3 mm), Optional: 8"–12" (O.D. 219.1–323.9 mm) Roll Sets
  • Max. Wall Thickness 7 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers PDF
Specifications
Model RG-2M
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity Standard: 1"–6" (DN25–DN150 / O.D. 33.4–168.3 mm)
Optional: 8"–12" (O.D. 219.1–323.9 mm) Roll Sets
Operating Radius 8 ¼" (210 mm)
Max. Wall Thickness 7 mm
Packaging Dimensions (L×W×H) 50 × 22 × 40 cm
Gross Weight 24 kg
Features
    • Heavy-Duty Cast Iron Housing
      Heavy-Duty Cast Iron Housing
      • The groover uses a reinforced cast iron housing designed to support roller sets, ratchet drive components, and depth rod assemblies.
      • Its heavy-duty structure delivers strong rigidity for demanding working conditions and supports custom color options.

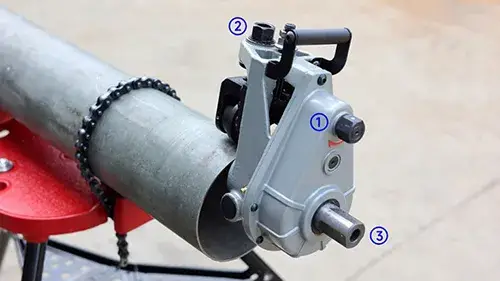

    • Multi-Function Design
      Multi-Function Design

      The unit works as a standalone manual groover or can be paired with a power drive system or pipe threading machine for combined operation, with flexible use in different jobsite conditions.

    • Roller Assembly
      Roller Assembly
      • Available sizes include 1", 1¼"–1½", and 2"–6", with optional 8"–12" roller sets.
      • Suitable for 1"–4" Sch10 & Sch40 and 5"–6" Sch10/20 steel pipes.
      • Hardened high-strength steel rollers provide stable performance under long-term use.

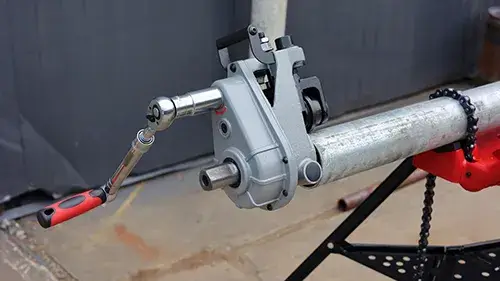

    • Drive & Control System
      Drive & Control System
      • Manual feed operation with ratchet wrench support improves working efficiency.
      • The standard two-section ratchet wrench is adjustable in length, offering flexible handling and easier operation.

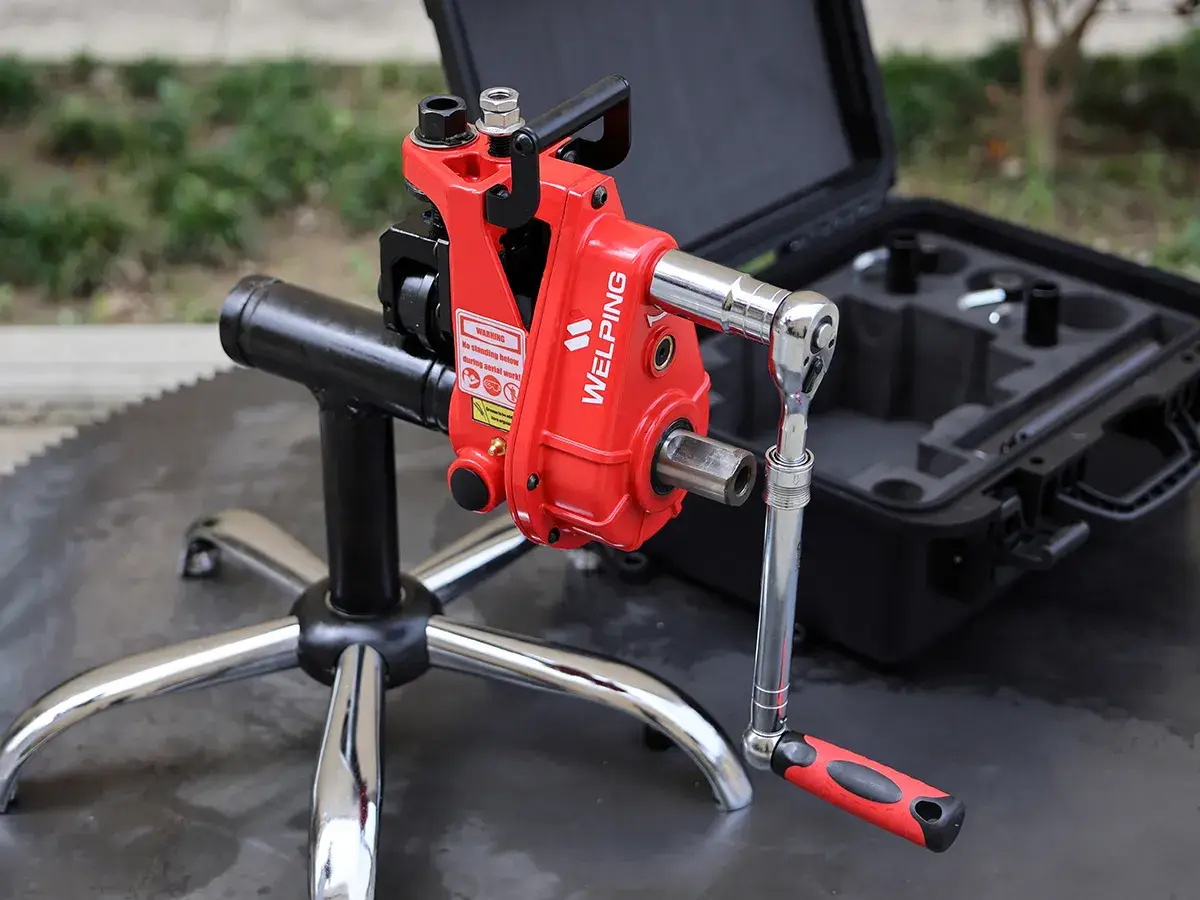

    • Portable Storage Case
      Portable Storage Case
      • The heavy-duty HDPE case provides strong impact resistance for frequent field use.
      • Internal compartments keep accessories and roller sets organized and easy to access.
More
Standard Equipment
Description Net Weight
Drive Roll 1" (O.D. 33.4 mm) 0.70 kg
Drive Roll 1 ¼"–1 ½" (O.D. 42.2–48.3 mm) 0.70 kg
Drive Roll 2"–6" (O.D. 60.3–168.3 mm) 0.70 kg
Groove Roll 1"–6" (O.D. 33.4–168.3 mm) 0.30 kg
Model 300 Support Arms (2 pcs) 1.40 kg
Drive Bar Adapter 2.50 kg
Heavy-Duty HDPE Carrying Case 2.70 kg
Socket Ratchet Wrench 1.50 kg
Optional Equipment
Description Net Weight
Stand Kit for Horizontal Threading Machine 1.00 kg
Groove Roll 8"–12" (O.D. 219.1–323.9 mm) 0.40 kg
Drive Roll 8"–12" (O.D. 219.1–323.9 mm) 0.85 kg
