Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

2"–8" Hydraulic Roll Groover, RG-7X
  • 2"–8" Hydraulic Roll Groover, RG-7X
  • 2"–8" Hydraulic Roll Groover, RG-7X
  • 2"–8" Hydraulic Roll Groover, RG-7X
  • 2"–8" Hydraulic Roll Groover, RG-7X
  • 2"–8" Hydraulic Roll Groover, RG-7X

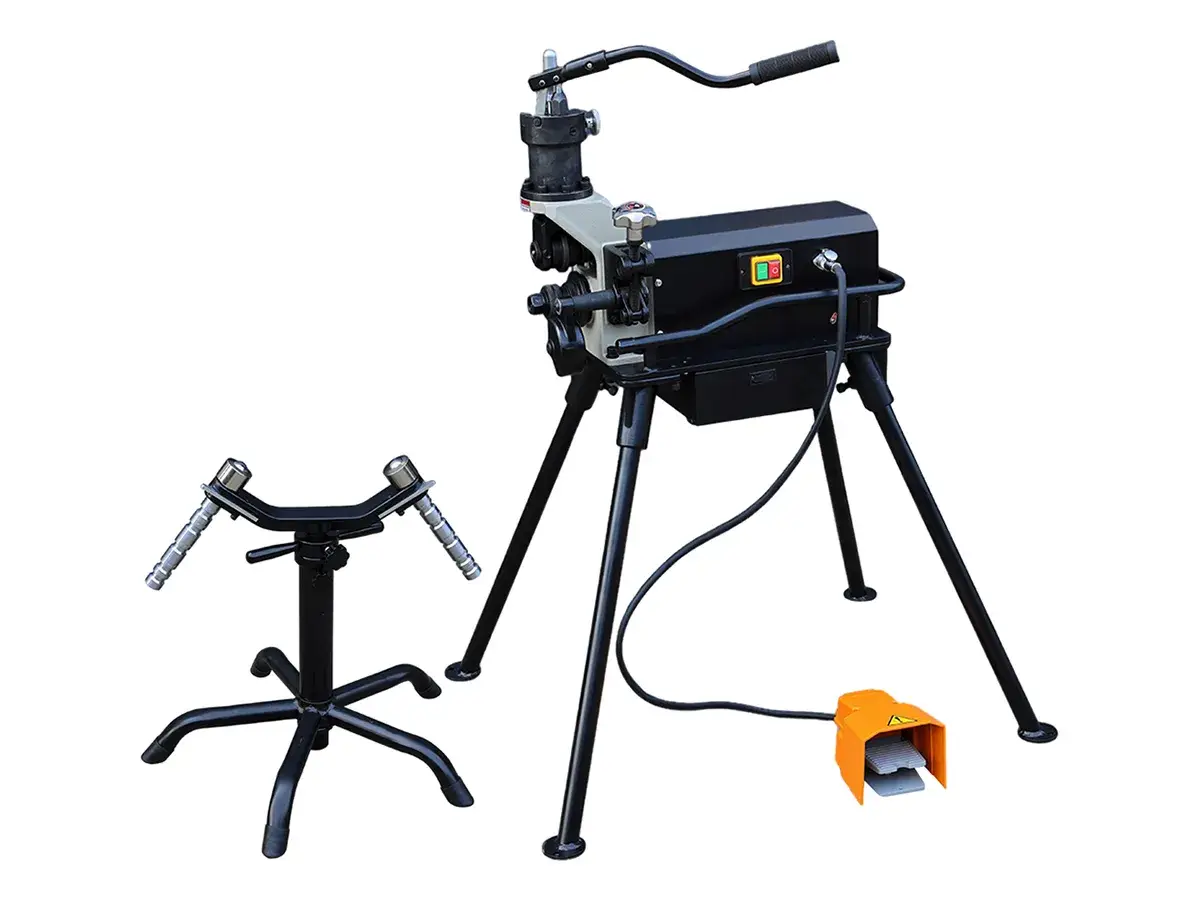

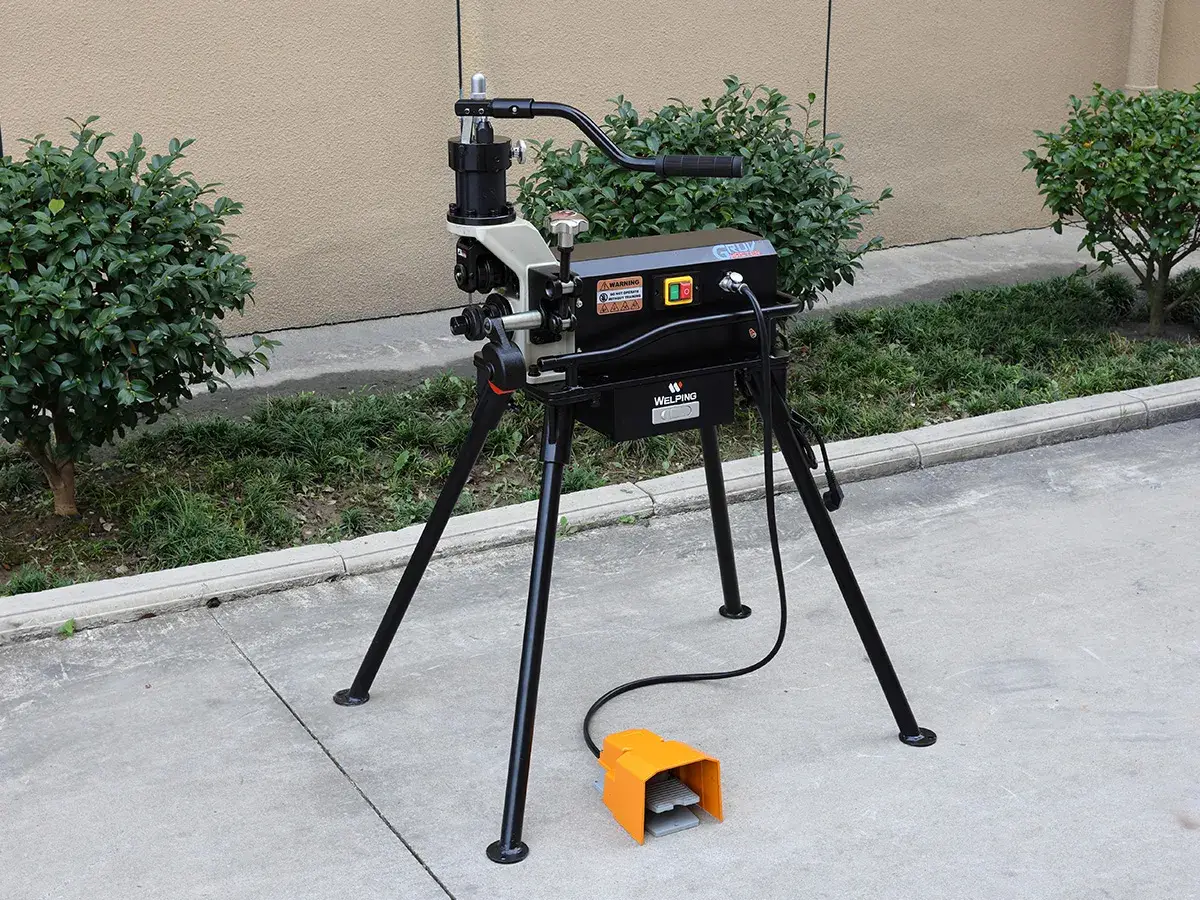

RG-7X 2"–8" Hydraulic Roll Groover

RG-7X is a compact, integrated hydraulic roll groover with a floor-standing design. It is designed for grooving 2"–8" carbon steel and stainless-steel pipes, and is a practical choice for pipe fabrication and installation work.

  • Capacity 2"–8" (DN50–DN200 / O.D. 60–219 mm) Schedule 10/40
  • Max. Wall Thickness 8 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-7X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 2"–8" (DN50–DN200 / O.D. 60–219 mm) Schedule 10/40
Power Requirements 220 V/110 V, 50/60 Hz, Single Phase
Max. Wall Thickness 8 mm
Spindle Speed 30 RPM
Motor Power 800 W
Drive & Actuation Gear reducer drive with hydraulic feed system
Packaging Dimensions (L×W×H) 72 × 42 × 80 cm
Gross Weight 88 kg
Features
    • Gear Reduction Motor

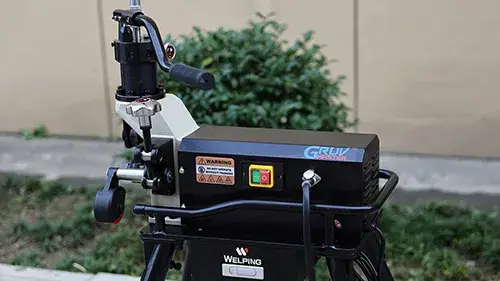

      Gear Reduction Motor

      Built-in high-performance gear reduction motor with a compact structure and low operating noise. It is suitable for everyday pipe grooving applications.

    • Interlocking Rollers

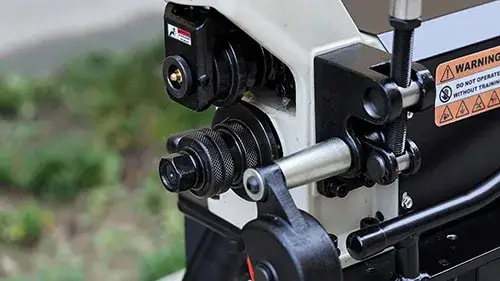

      Interlocking Rollers

      The pressure roll and drive roll feature an interlocking design that helps maintain a consistent sealing surface length and improves groove consistency.

    • Five-Leg Pipe Stand
      Five-Leg Pipe Stand

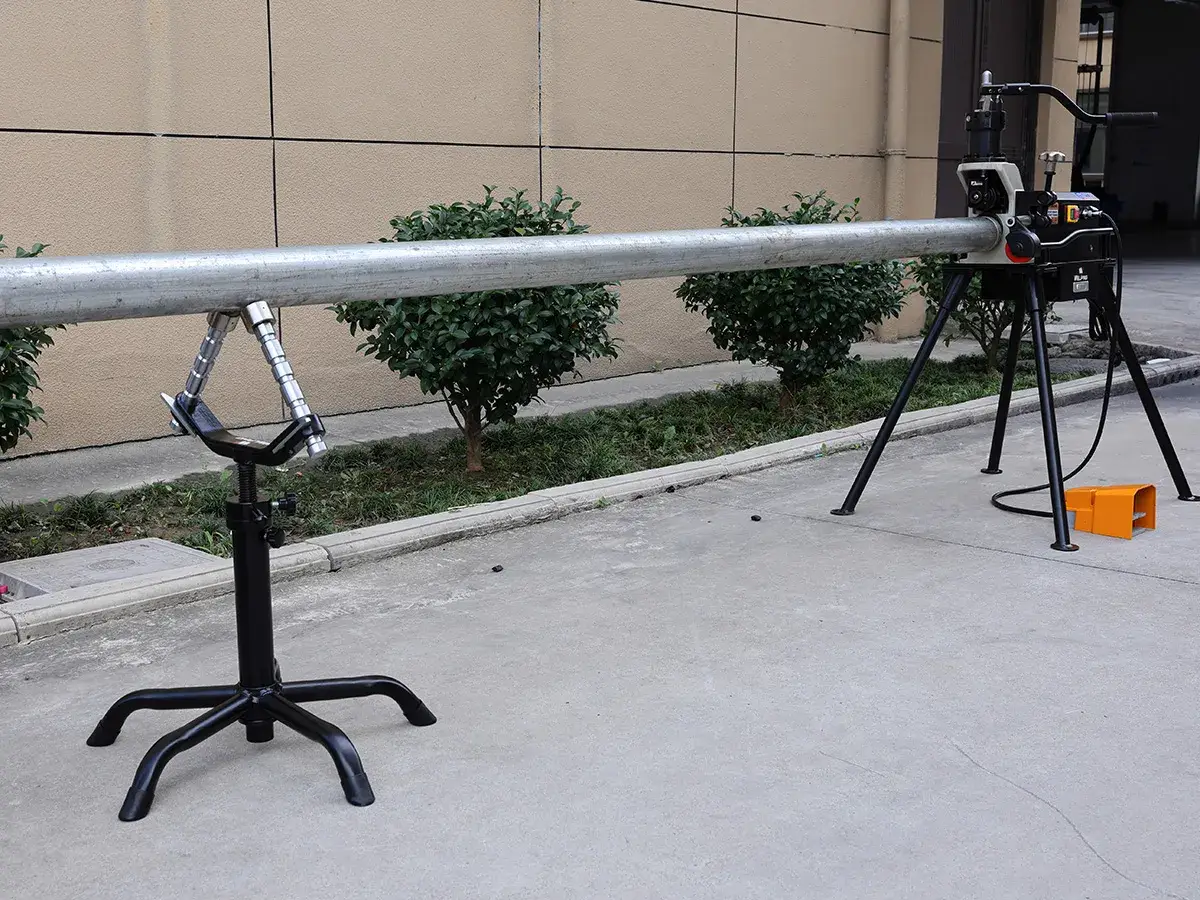

      Equipped with an adjustable pipe stand for supporting 2"–8" pipes. The stable stand works together with the pipe stabilizer to reduce pipe movement and keep the grooving process steady.

    • Foot Switch
      Foot Switch

      The foot switch controls start and stop functions of the groover that allows the operator to focus on pipe support and groove alignment during operation.

More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 2"-2 ½" (O.D. 60–73 mm) 0.40 kg
Drive Roll 3"–6" (O.D. 89–168 mm) 0.80 kg
Drive Roll 8" (O.D. 219 mm) 1.00 kg
Groove Roll 2"–6" (O.D. 60–168 mm) 0.50 kg
Groove Roll 8" (O.D. 219 mm) 0.60 kg
