Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16", RG-8X
  • 1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16", RG-8X
  • 1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16", RG-8X
  • 1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16", RG-8X
  • 1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16", RG-8X
  • 1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16", RG-8X

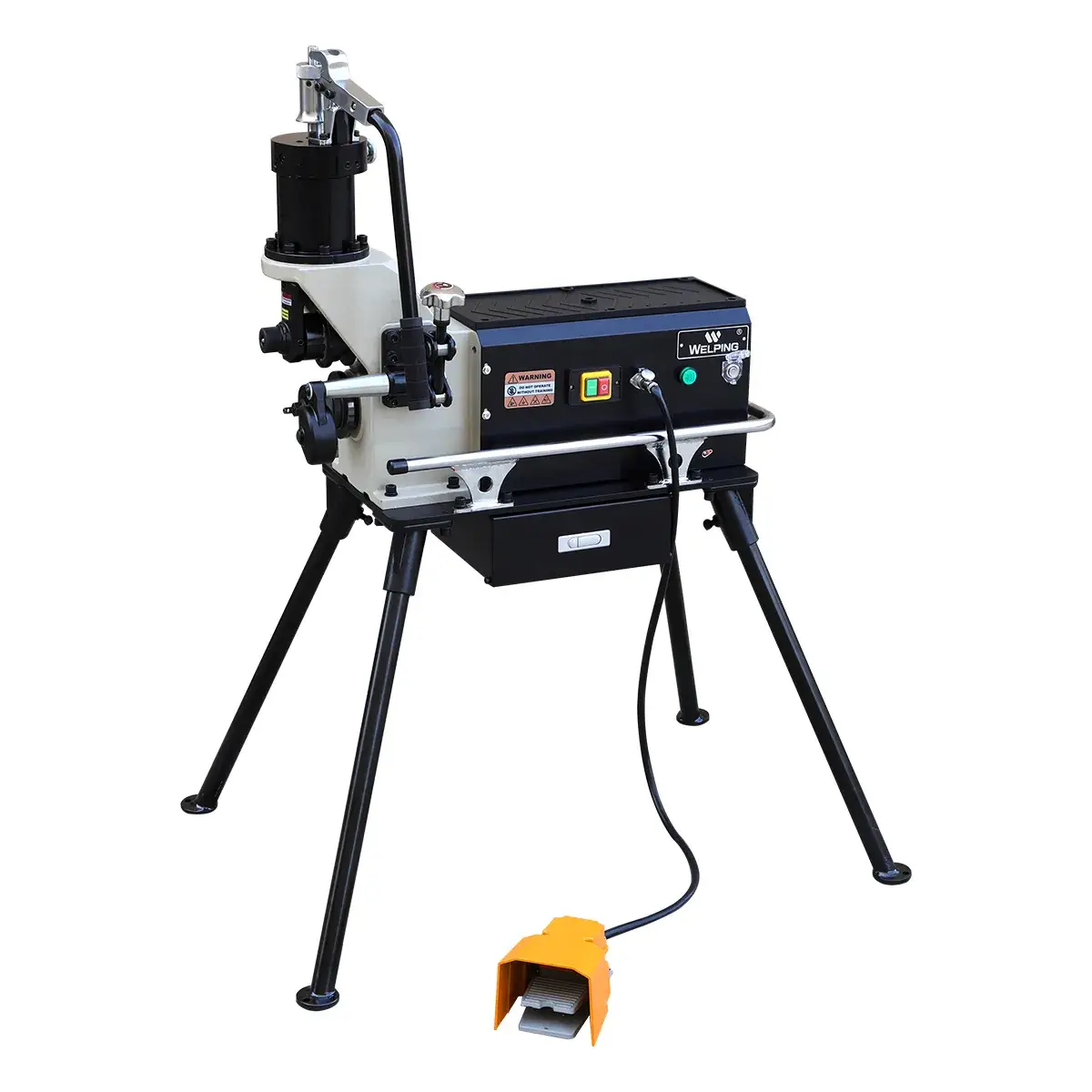

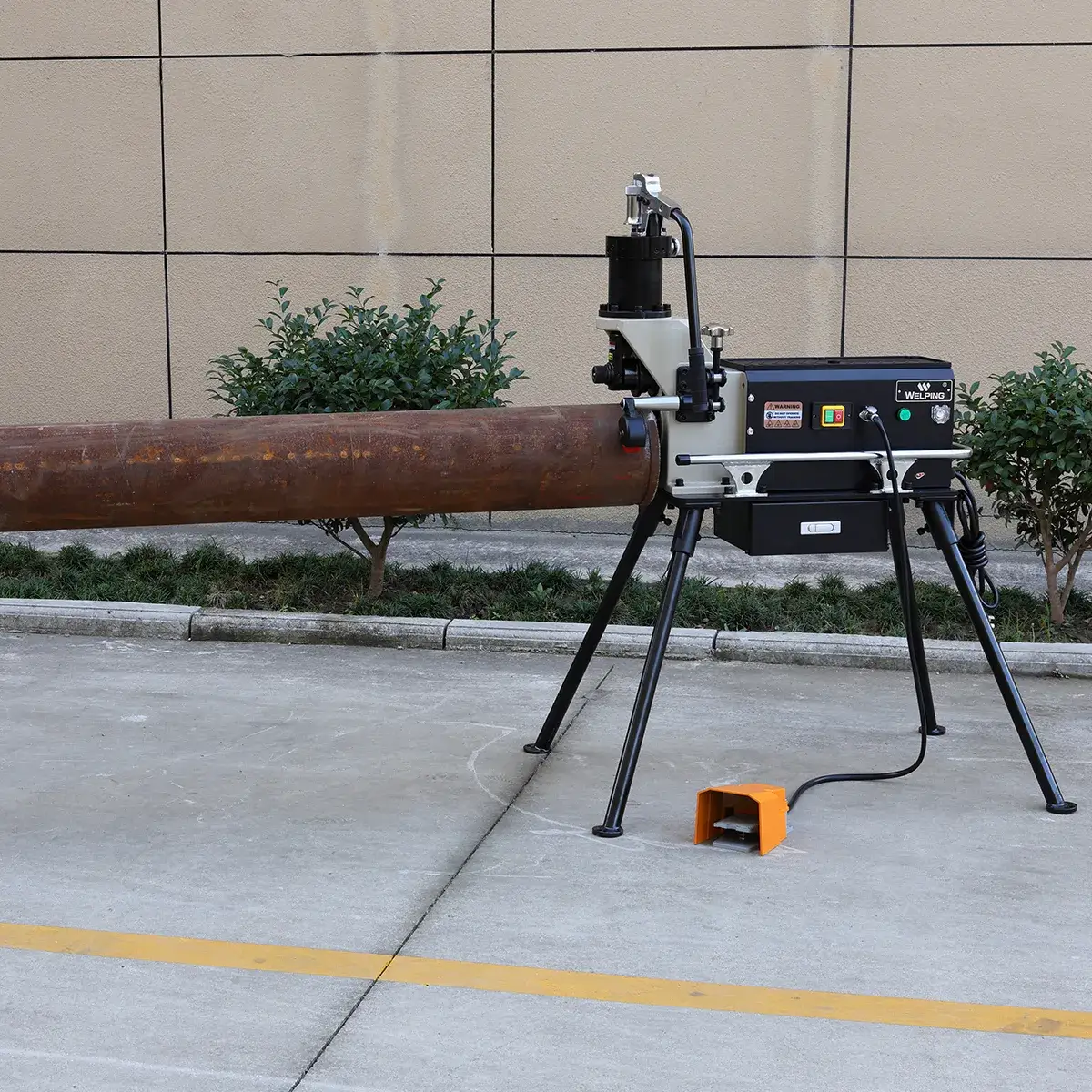

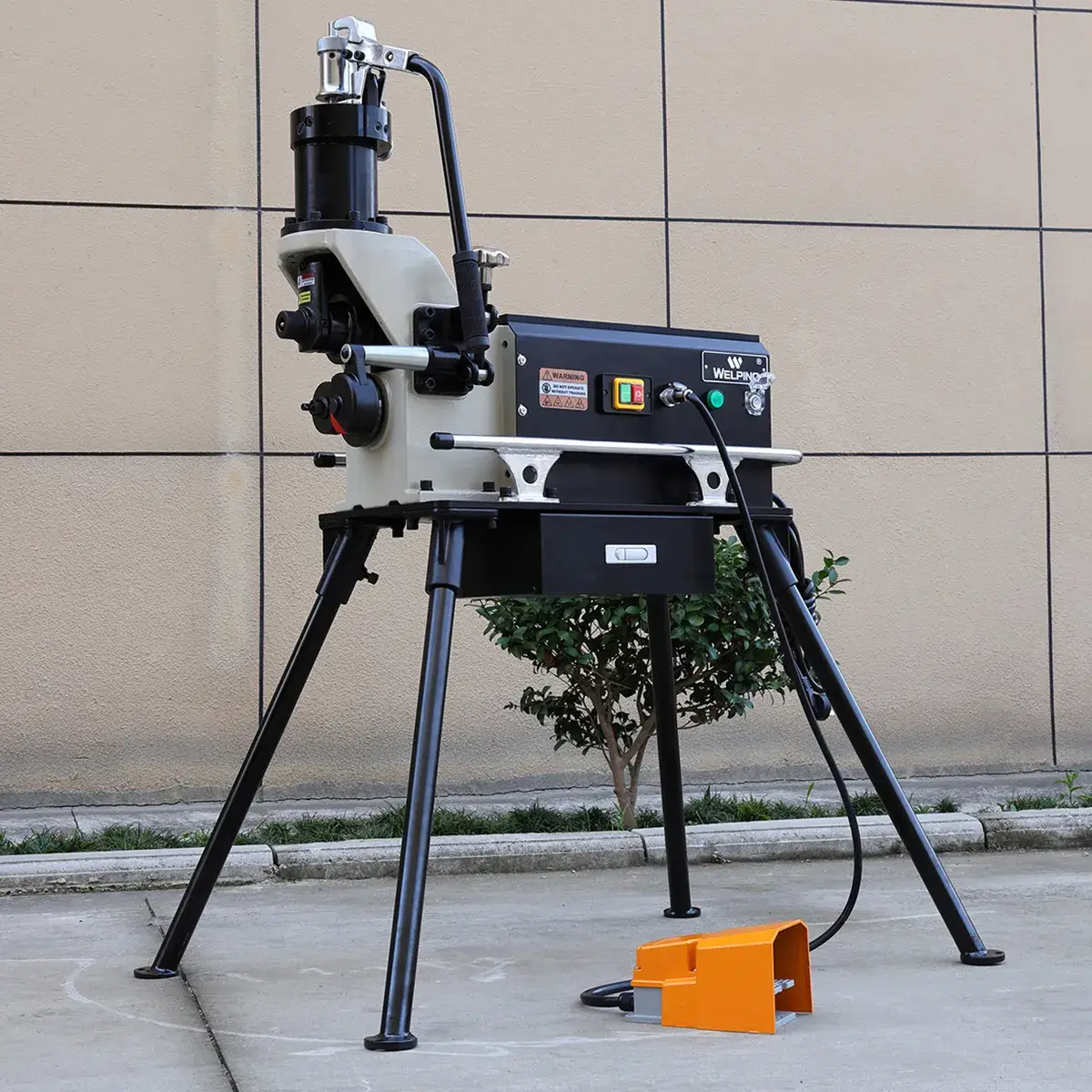

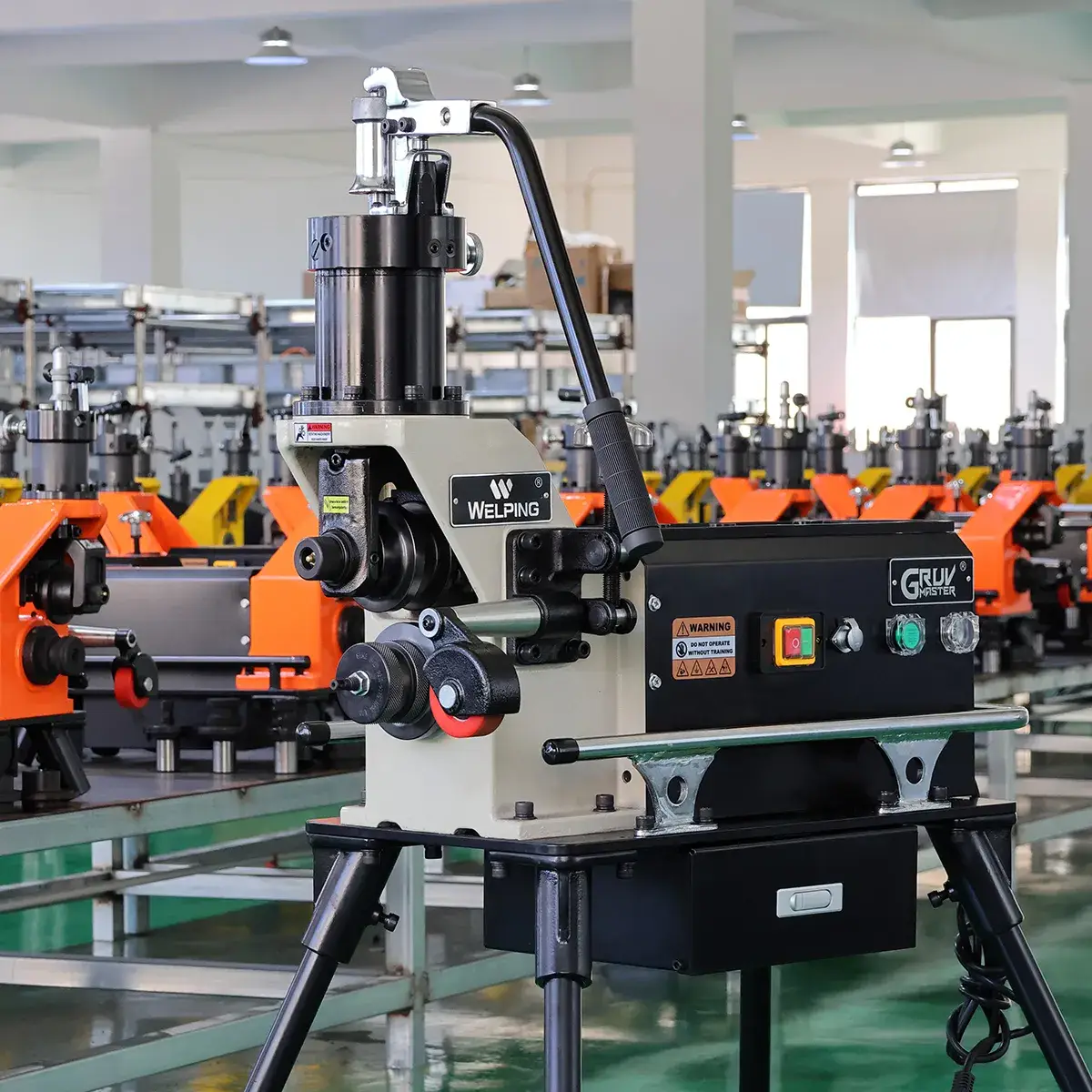

RG-8X 1"–12" Hydraulic Roll Grooving Tool, Optional 14"-16"

RG-8X is a hydraulic roll grooving tool for 1"–12" pipes, with an optional 14"–16" roller set. It integrates One-Push™ quick feed system, Gruv-X hydraulic technology, and a fully enclosed oil pump. The grooving machine is designed for batch grooving of steel pipes in workshop environments.

  • Capacity Standard: 1"–12" (O.D. 33–324 mm) Schedule 10/40, Optional: 14"–16"
  • Max. Wall Thickness 12 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-8X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity Standard: 1"–12" (O.D. 33–324 mm) Schedule 10/40
Optional: 14"–16"
Power Requirements 220 V/110 V (Custom voltages available), 50/60 Hz, Single Phase
Max. Wall Thickness 12 mm
Spindle Speed 32 RPM
Motor Power 1500 W
Packaging Dimensions (L×W×H) 88 × 44 × 96 cm
Net Weight 185 kg
Drive & Actuation Gear reducer drive with hydraulic system
Features

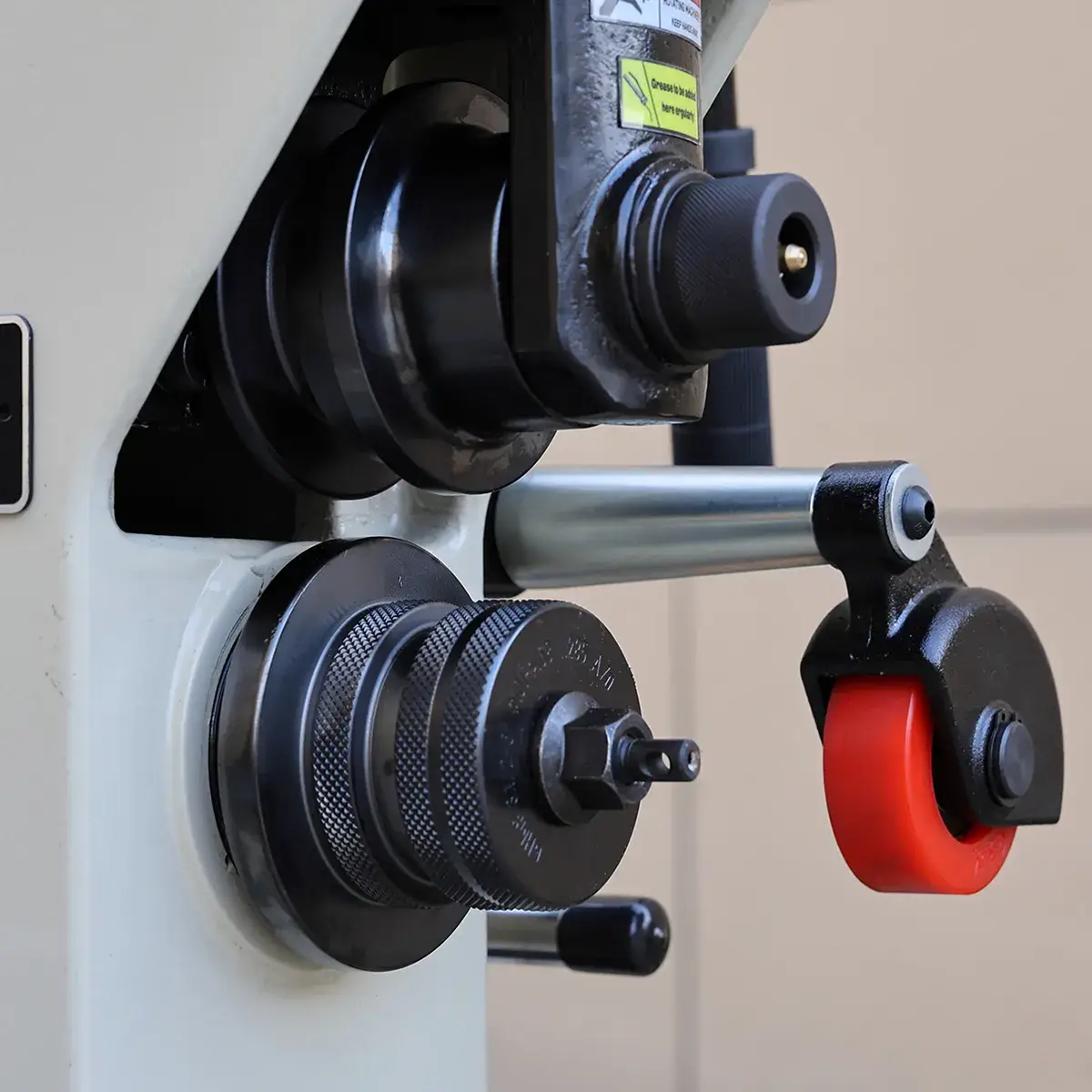

    • Wide Range Grooving & Heavy-Duty Interlocking Rollers
      Wide Range Grooving & Heavy-Duty Interlocking Rollers

      Suitable for 1"–12" steel pipes (DN25–DN300, Φ33–Φ325), with optional 14"–16" roller set. The upper and lower rollers use a heavy-duty interlock that helps maintain stable groove dimensions for batch processing.

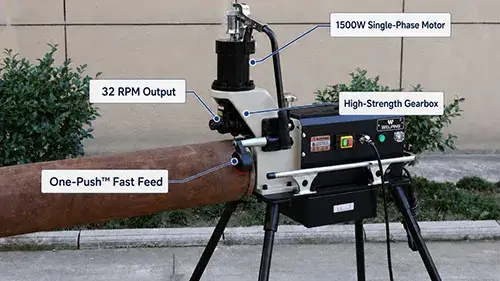

    • Gearbox
      Gearbox

      Equipped with a 1500W single-phase motor and high-strength gearbox, delivering 32 RPM. The One-Push™ roller feed system allows quick contact with the pipe for more direct and efficient operation.

    • Durable Hydraulic System & Heat-Treated Cylinder
      Durable Hydraulic System & Heat-Treated Cylinder

      Uses Gruv-X hydraulic technology with a fully enclosed oil pump, dual oil chamber, and TitanSeal™ double sealing design. The cylinder is heat-treated with hardness up to HRC50, suitable for high-frequency operation and long service life.

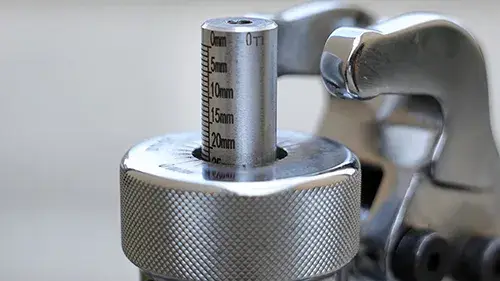

    • Groove Depth Adjustment
      Groove Depth Adjustment

      The groove depth scale allows quick adjustment and improves repeat positioning accuracy during batch production.

    • Adjustable Pipe Stand
      Adjustable Pipe Stand

      The pipe stand adjusts quickly to different heights and supports 1"–8" standard pipes. Precision guide slots and locking structure ensure stable adjustment, while the ball-type support allows smooth pipe rotation and movement. Three-leg and five-leg stands are available.

    • Foot Switch
      Foot Switch

      The foot switch is equipped with a protective guard to prevent accidental operation. It provides easy start/stop control, freeing both hands for pipe handling and improving working efficiency.

More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 1"–1 ½" (O.D. 33–48 mm) 1.13 kg
Drive Roll 2"–3" (O.D. 60–89 mm) 1.30 kg
Drive Roll 3 ½"–6" (O.D. 102–168 mm) 1.30 kg
Drive Roll 8"–12" (O.D. 219–324 mm) 1.40 kg
Groove Roll 1"–1 ½" (O.D. 33–48 mm) 0.45 kg
Groove Roll 2"–3" (O.D. 60–89 mm) 0.45 kg
Groove Roll 3 ½"–6" (O.D. 102–168 mm) 0.45 kg
Groove Roll 8"–12" (O.D. 219–324 mm) 0.45 kg
Optional Groove Roll Specifications
Description Net Weight
Groove Roll 14"–16" 0.45 kg
Groove Roll 14"–16" for SCH 10 0.45 kg
