Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

8"–24" Hydraulic Roll Groover, RG-4X PRO
  • 8"–24" Hydraulic Roll Groover, RG-4X PRO
  • 8"–24" Hydraulic Roll Groover, RG-4X PRO
  • 8"–24" Hydraulic Roll Groover, RG-4X PRO
  • 8"–24" Hydraulic Roll Groover, RG-4X PRO
  • 8"–24" Hydraulic Roll Groover, RG-4X PRO

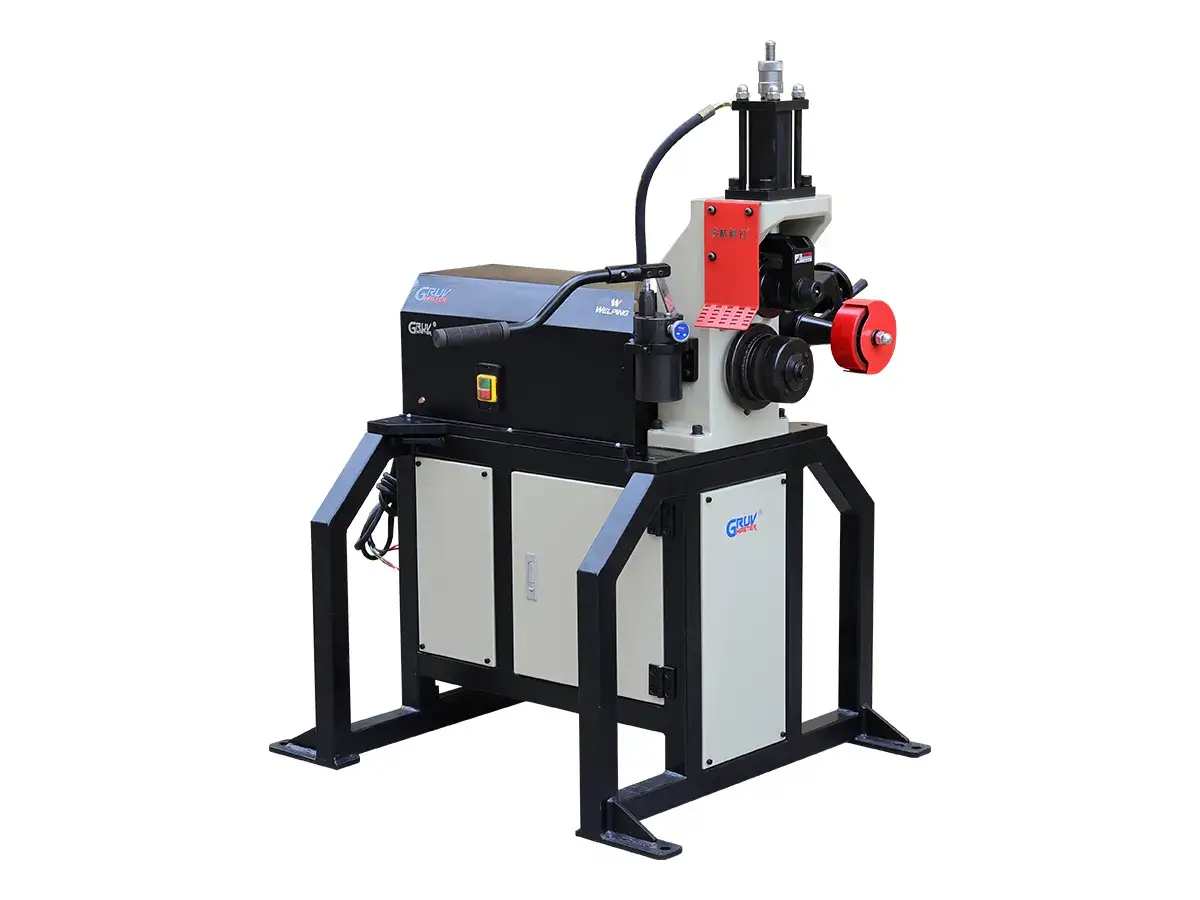

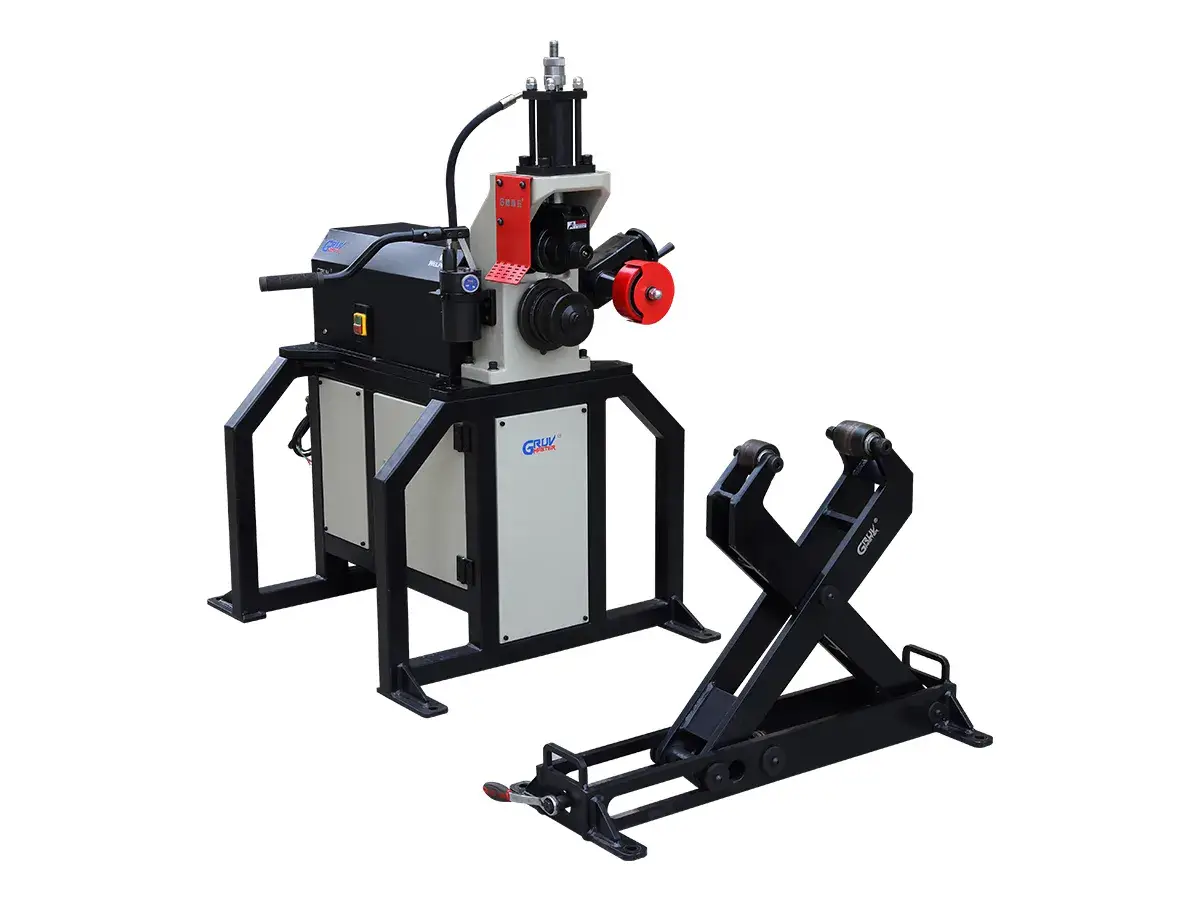

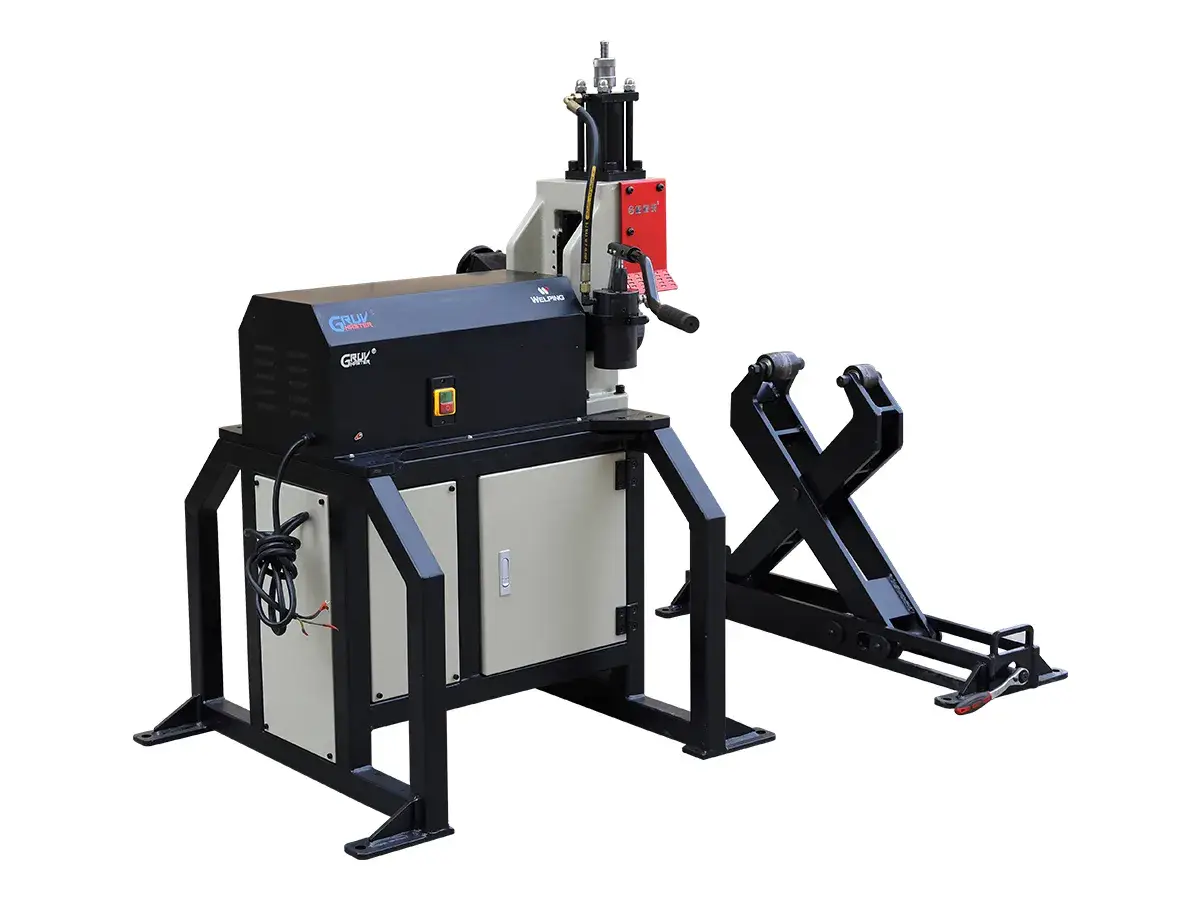

RG-4X PRO 8"–24" Hydraulic Roll Groover

RG-4X PRO is a heavy-duty hydraulic roll groover for 8"–24" pipes equipped with a fully enclosed hydraulic system, enlarged reinforced roller assembly, and upgraded guide rollers. It is designed for continuous high-load grooving of large-diameter steel pipes, with improved control over pipe flaring and lateral deviation.

  • Capacity 8"–16" Schedule 10/40, 18"–24" Schedule 10/20
  • Max. Wall Thickness 13 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-4X PRO
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 8"–16" Schedule 10/40
18"–24" Schedule 10/20
Groove System Standard: OGS Roll Sets
Optional: AGS Roll Sets (14"–24")
Power Requirements 380 V/440 V, 50/60 Hz, Three Phase
Max. Wall Thickness 13 mm
Spindle Speed 20 RPM
Motor Power 2200 W
Packaging Dimensions (L×W×H) 122 × 102 × 154 cm
Gross Weight 389 kg
Features

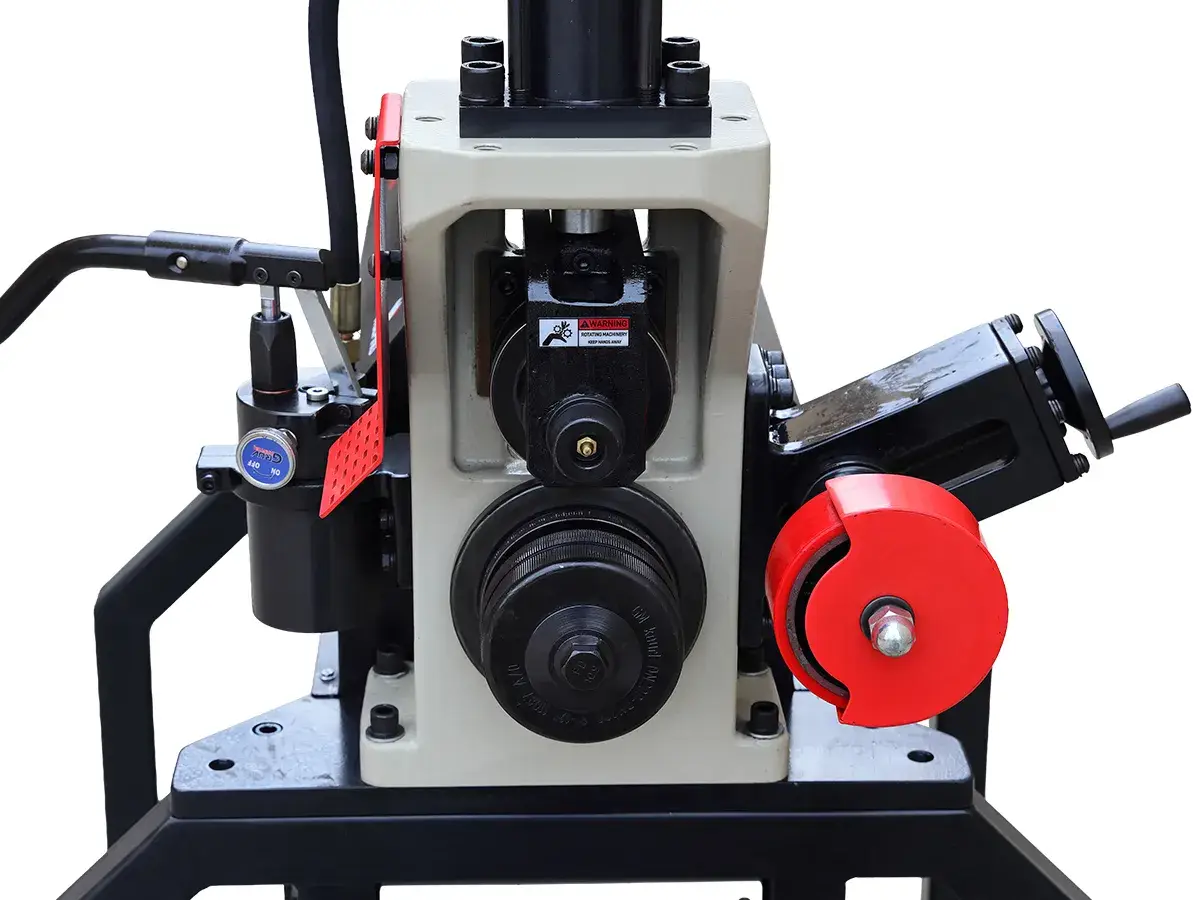

    • Hydraulic System
      Hydraulic System
      • Split hydraulic system with separate pump and cylinder design.
      • The fully enclosed pump requires no venting port, which helps reduce dust ingress, lower hydraulic oil maintenance frequency, and extend service life.
      • The upper and lower rollers use an interlocking structure that helps maintain consistent groove length, suitable for large-diameter pipe processing.
      • Built-in graduated depth adjustment screw provides clear indication and easy operation.

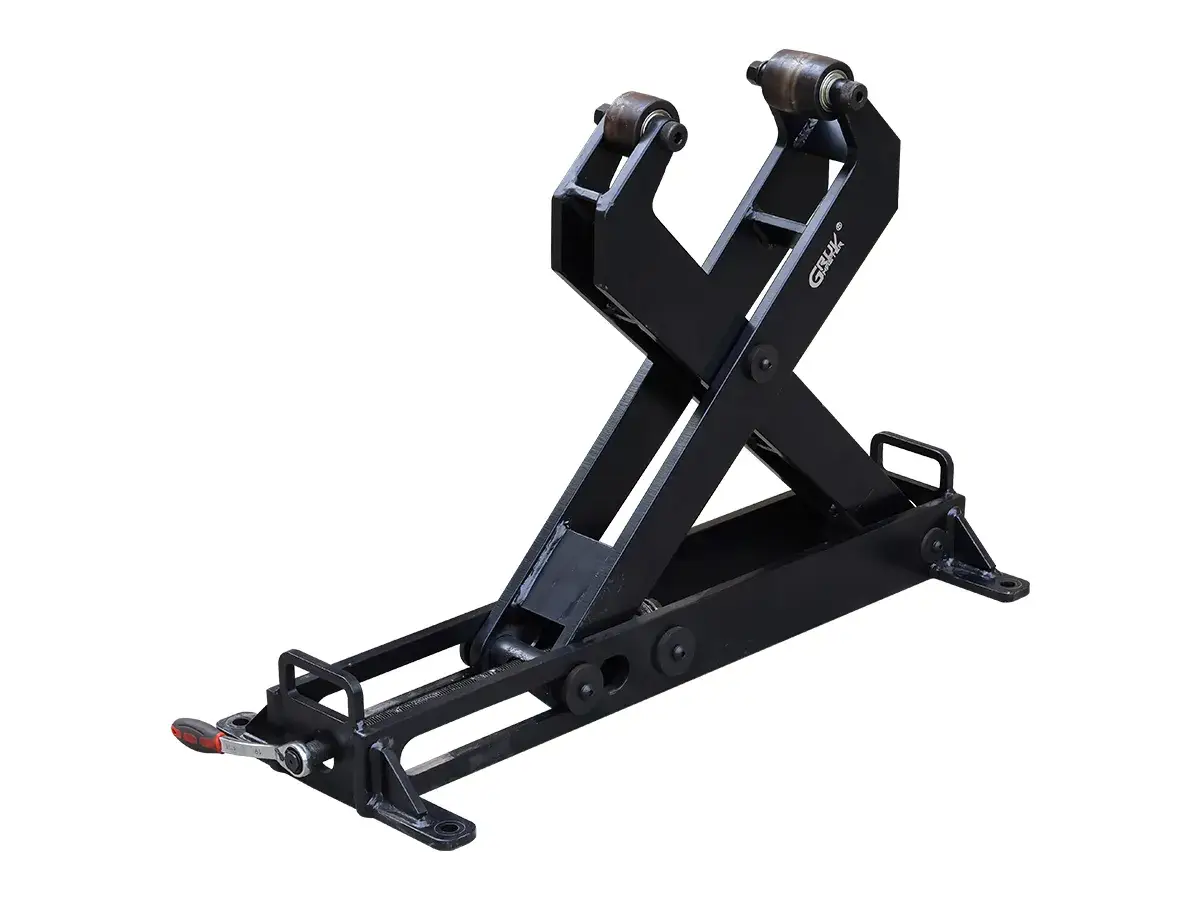

    • Pipe Stand

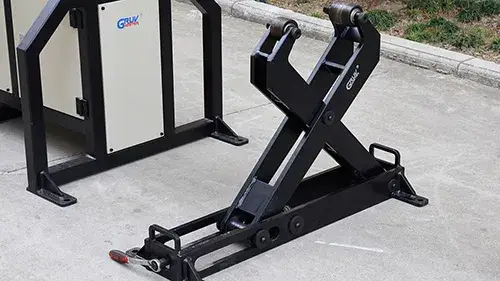

      Pipe Stand
      • Reinforced structure designed for high load capacity and large-diameter pipes.
      • Reduces vibration during operation and maintains stable grooving under continuous heavy-duty use.
    • Ductile Iron Housing

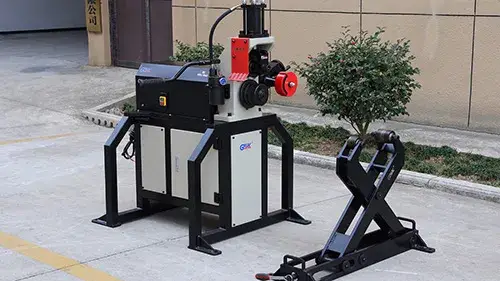

      Ductile Iron Housing
      • Constructed of large-size thick ductile iron casting with high rigidity and strong resistance to deformation.
      • The wide frame provides a stable base with increased ground contact area.
      • An integrated storage cabinet allows convenient storage of roller sets and tools.
    • Guide Rollers
      Guide Rollers

      Reinforced guide rollers help control pipe deviation during operation, reduce machining errors, and improve groove consistency.

More
Standard Equipment
Description Net Weight
Standard Equipment Drive Roll 8"–12" (O.D. 219–324 mm) 3.5 kg
Drive Roll 14"–16" (O.D. 356–406 mm) 3.5 kg
Drive Roll 18"–24" (O.D. 457–610 mm) 3.5 kg
Groove Roll 8"–12" (O.D. 219–324 mm) 2.0 kg
Groove Roll 14"–16" (O.D. 356–406 mm) 2.0 kg
Groove Roll 18"–24" (O.D. 457–610 mm) 2.0 kg
Optional Roll Sets Specifications
Description Net Weight
AGS Drive Roll 14"–24" (O.D. 356–610 mm) 3.5 kg
AGS Groove Roll 14"–24" (O.D. 356–610 mm) 2.0 kg
