Hydraulic Roll Groover

These machines are widely used in fire protection systems, HVAC installations, drainage systems, industrial piping, and other applications where efficient pipe installation is required.

2"–16" Hydraulic Roll Groover, RG-6X
  • 2"–16" Hydraulic Roll Groover, RG-6X
  • 2"–16" Hydraulic Roll Groover, RG-6X
  • 2"–16" Hydraulic Roll Groover, RG-6X
  • 2"–16" Hydraulic Roll Groover, RG-6X

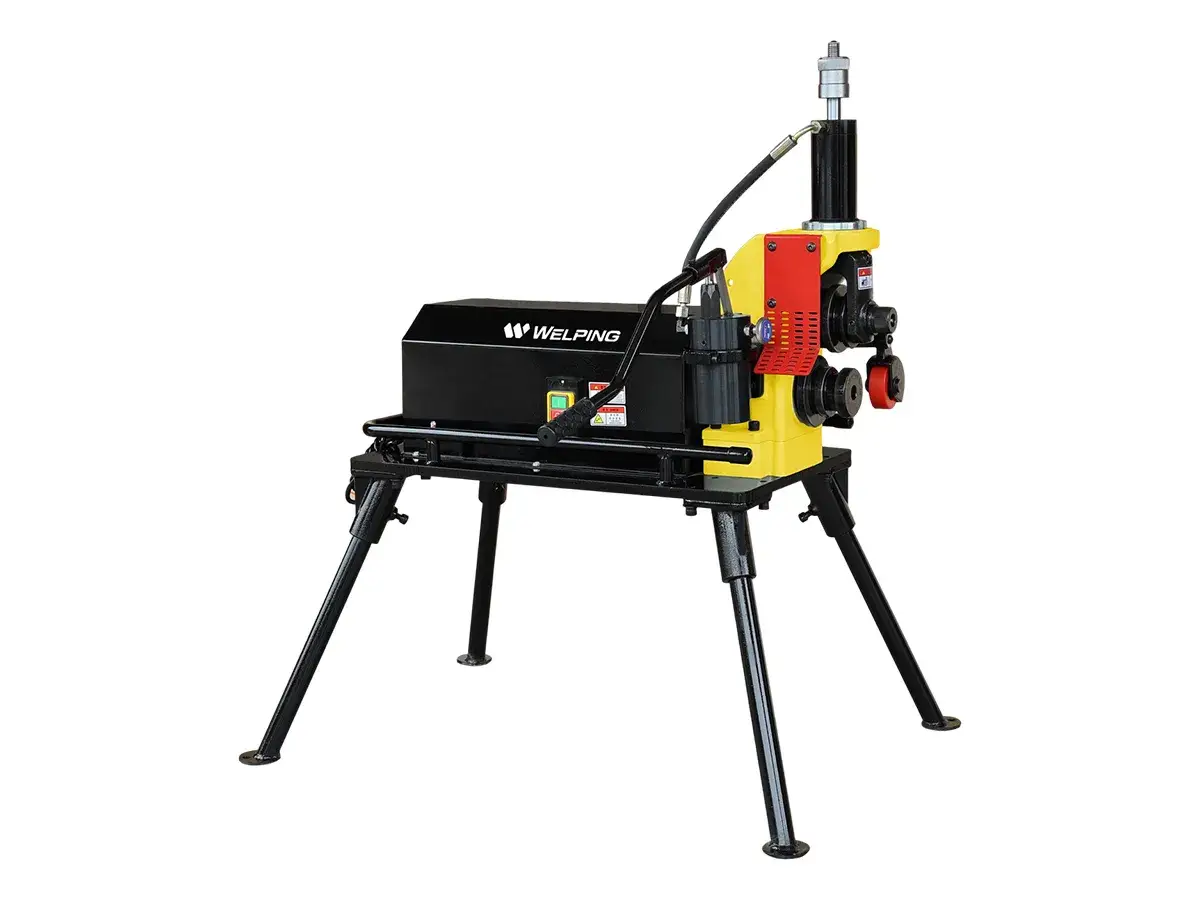

RG-6X 2"–16" Hydraulic Roll Groover

This compact heavy-duty hydraulic roll groover for 2"–16" pipes integrates a low-noise gear reduction motor and a split hydraulic system with leak-resistant design. The grooving machine is equipped with a heavy-duty pipe stand, depth locking nut, and anti-flaring rollers for stable grooving across multiple pipe sizes.

  • Capacity 2"–12" Schedule 10/40, 14"–16" Schedule 10/20
  • Max. Wall Thickness 10 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-6X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 2"–12" Schedule 10/40
14"–16" Schedule 10/20
Power Requirements 220 V/110 V, 50/60 Hz, Single Phase
Max. Wall Thickness 10 mm
Spindle Speed 23 RPM
Motor Power 1100 W
Packaging Dimensions (L×W×H) 93 × 73 × 90 cm
Gross Weight 195 kg
Drive & Actuation Split fully-sealed hydraulic system, gear reducer drive
Features

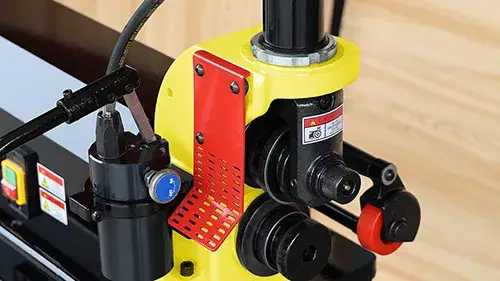

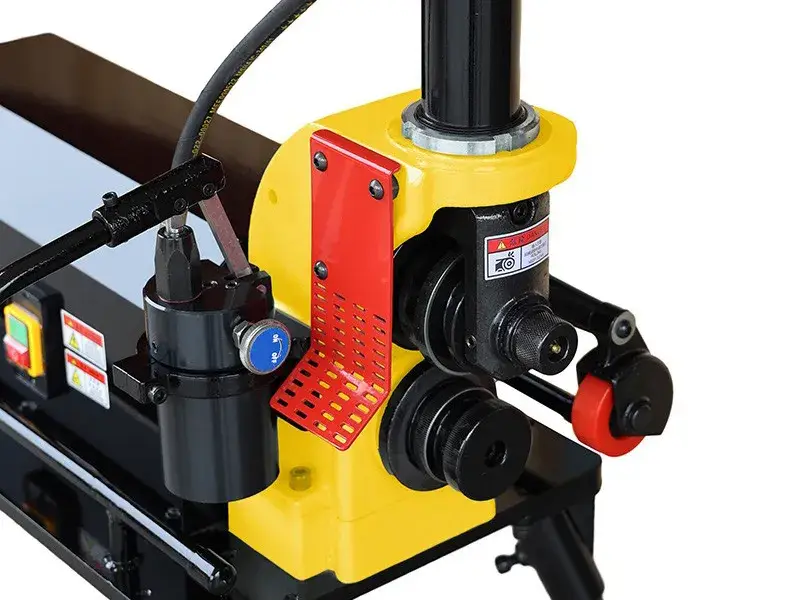

    • Hydraulic Pump
      Hydraulic Pump
      • Split hydraulic system with independent pump and cylinder structure.
      • Fully enclosed pump design helps reduce dust ingress, lowers hydraulic oil maintenance frequency, and extends service life.
      • Precision-machined cylinder with hardened piston rod for long-term durability.
      • Built-in graduated depth adjustment screw provides clear and easy groove depth control.

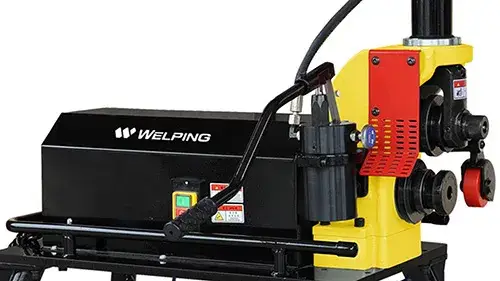

    • Ductile Iron Machine Head
      Ductile Iron Machine Head
      • The head is made of thick ductile iron casting.
      • Ductile iron provides strong rigidity and excellent resistance to deformation under heavy loads.
      • Custom machine colors are available.

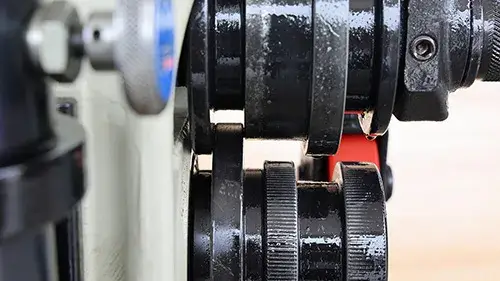

    • Roller Assembly
      Roller Assembly
      • Standard roller range covers 2"–3", 3½"–6", 8"–12", and 14"–16" pipes.
      • Upper and lower rollers use an interlocking design that helps maintain stable groove length and consistent results.

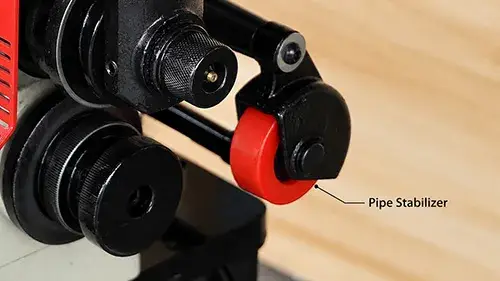

    • Pipe Stabilizer
      Pipe Stabilizer

      The pipe stabilizer helps reduce pipe movement during operation, limits deviation, and improves grooving stability.

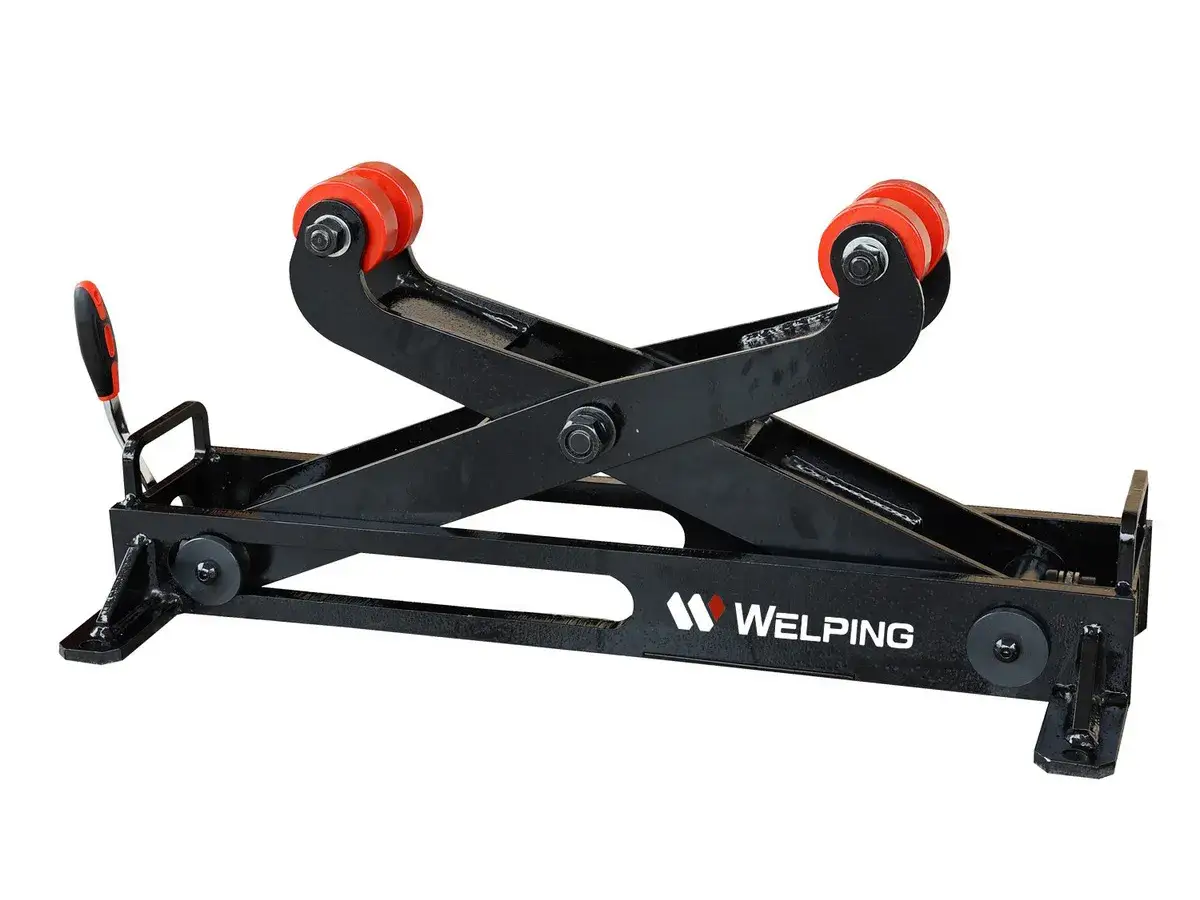

    • Pipe Stand
      Pipe Stand

      Heavy-duty adjustable pipe stand with ratchet adjustment structure for quick height setting. It supports stable pipe positioning during grooving operations.

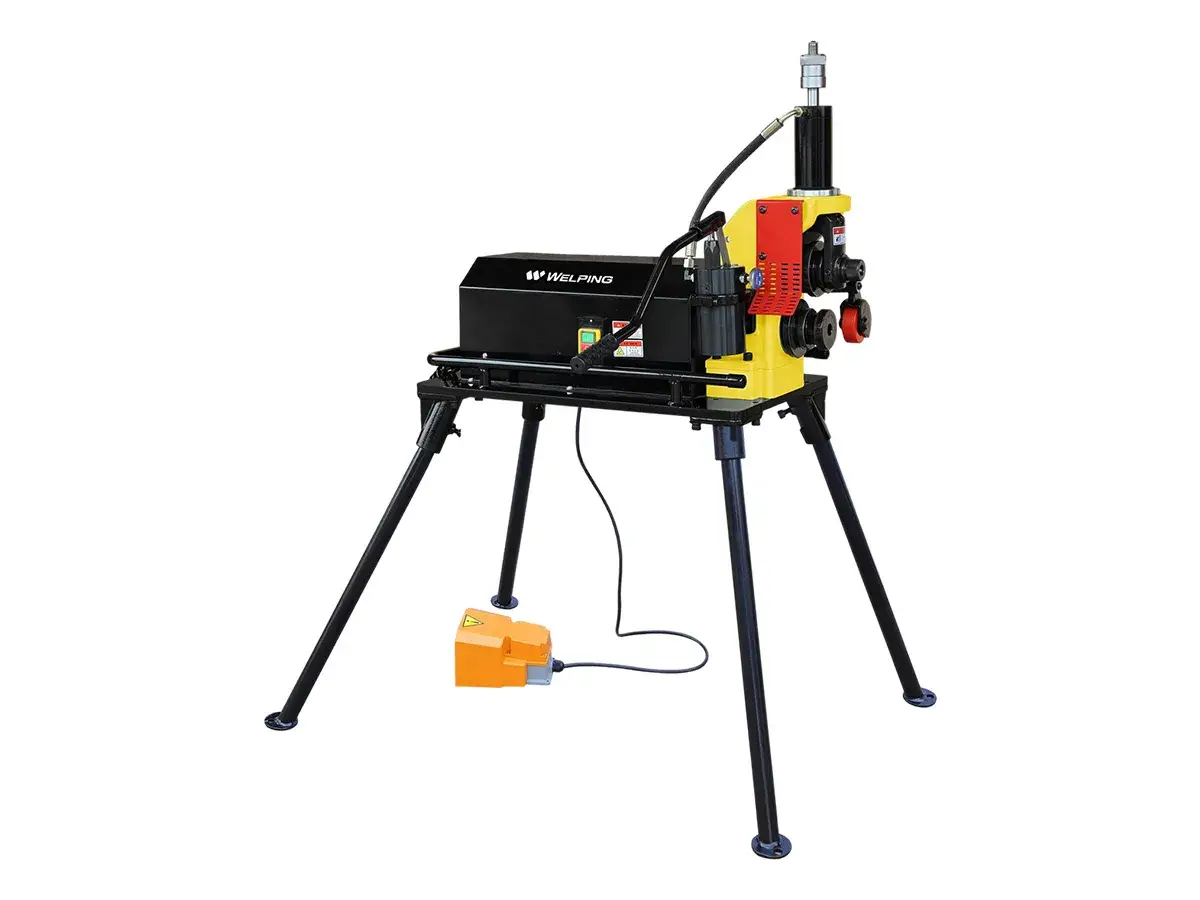

    • Foot Switch
      Foot Switch

      The foot switch provides simple start/stop control, allowing the operator to focus on pipe alignment and groove condition during operation.

More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 2"–3" (O.D. 60–89 mm) 1.30 kg
Drive Roll 3 ½"–6" (O.D. 102–168 mm) 1.30 kg
Drive Roll 8"–12" (O.D. 219–324 mm) 1.40 kg
Drive Roll 14"–16" (O.D. 356–406 mm) 1.60 kg
Groove Roll 2"–3" (O.D. 60–89 mm) 0.45 kg
Groove Roll 3 ½"–6" (O.D. 102–168 mm) 0.45 kg
Groove Roll 8"–12" (O.D. 219–324 mm) 0.45 kg
Groove Roll 14"–16" (O.D. 356–406 mm) 0.45 kg
Optional Anti-Flare Groove Roll Specifications
Description Net Weight
Anti-Flare Groove Roll 2"–3" for SCH10 0.45 kg
Anti-Flare Groove Roll 3 ½"–6" for SCH10 0.45 kg
Anti-Flare Groove Roll 8"–12" for SCH10 0.45 kg
Anti-Flare Groove Roll 14"–16" for SCH10 0.45 kg
