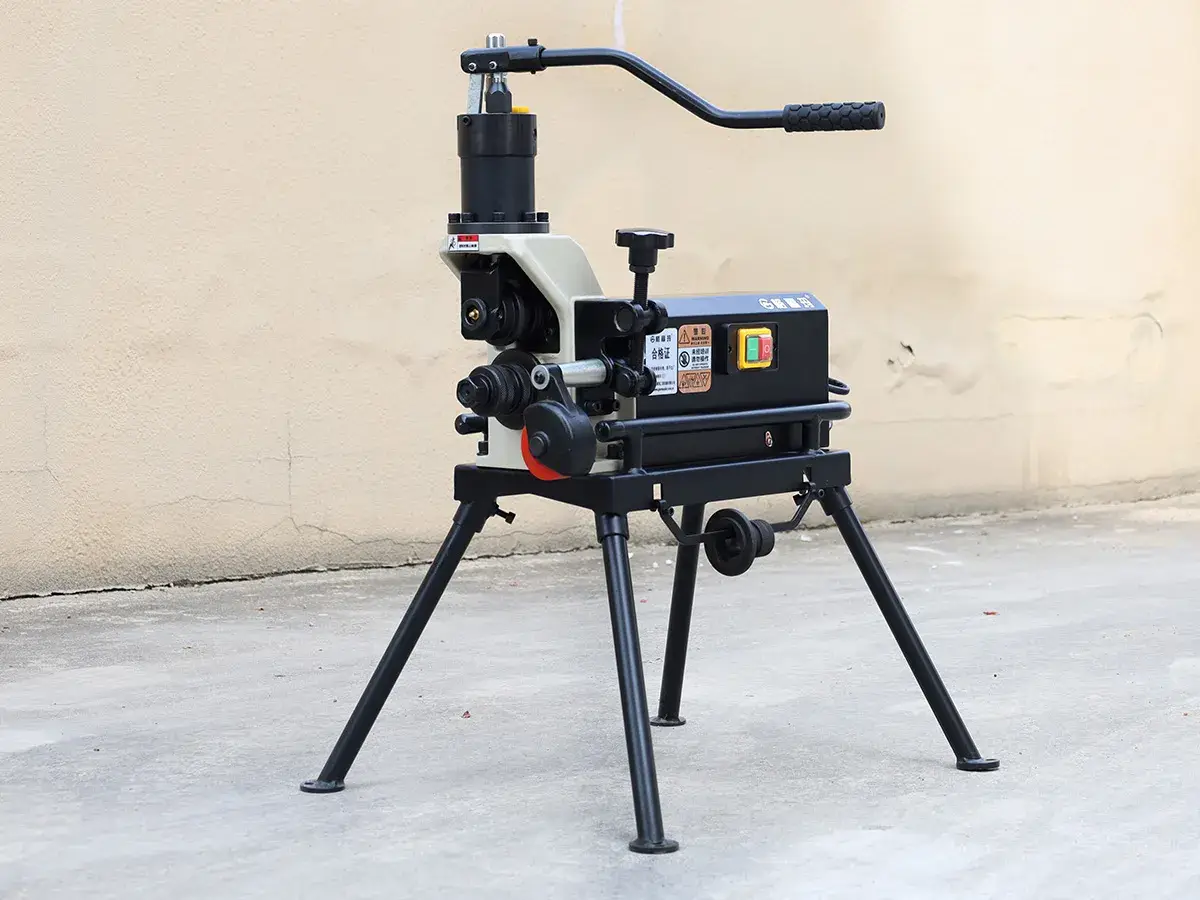

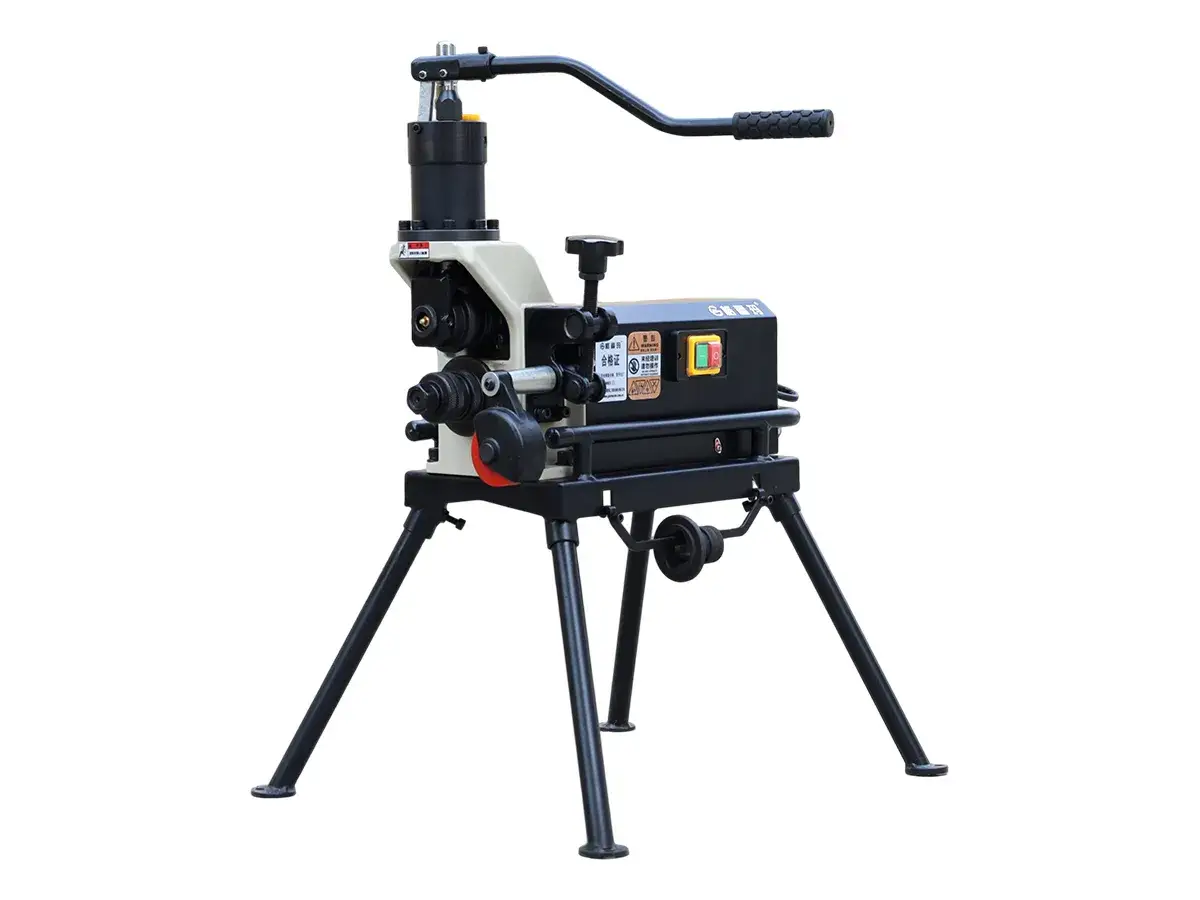

RG-3C 2"–8" Hydraulic Roll Grooving Tool

RG-3C is a portable electric hydraulic roll grooving machine for 2"–8" pipes. It features an interlocking roller design and a graduated groove depth stop that provides consistent grooving results on thin-wall pipes, short pipes, coated pipes, and galvanized pipes. Its lightweight design is ideal for on-site installation and flexible pipe processing.

  • Capacity 2"–6" (O.D. 60.3–168.3 mm) Schedule 10/40, 8" (O.D. 219.1 mm) Schedule 20
  • Max. Wall Thickness 7.1 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model RG-3C
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 2"–6" (O.D. 60.3–168.3 mm) Schedule 10/40
8" (O.D. 219.1 mm) Schedule 20
Power Requirements 220 V/110 V, 50/60 Hz, Single Phase
Max. Wall Thickness 7.1 mm
Spindle Speed 23 RPM
Motor Power 800 W
Packaging Dimensions (L×W×H) 57 × 34 × 68 cm
Gross Weight 60 kg
Features

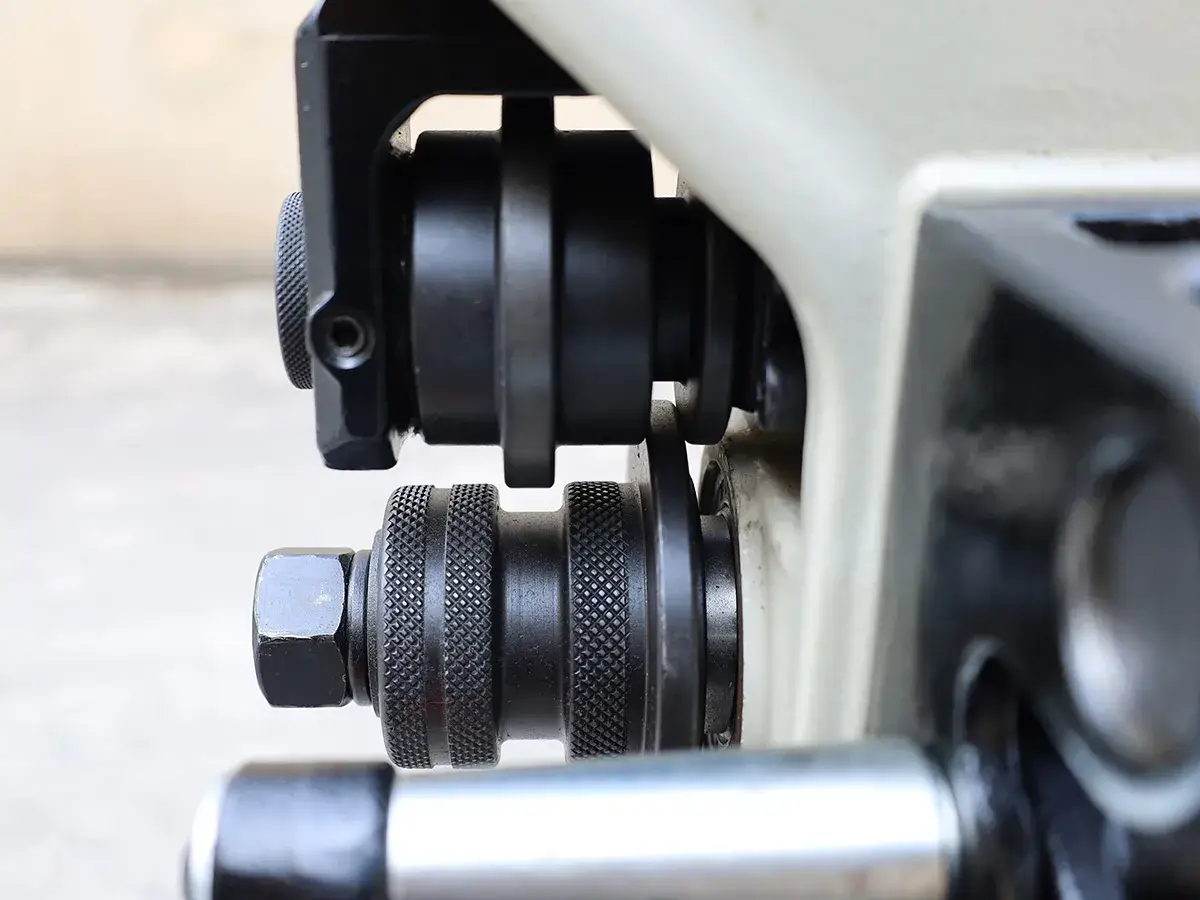

    • Rollers
      Rollers

      The upper and lower rollers feature an interlocking design that helps maintain a consistent sealing surface length and improves groove consistency.

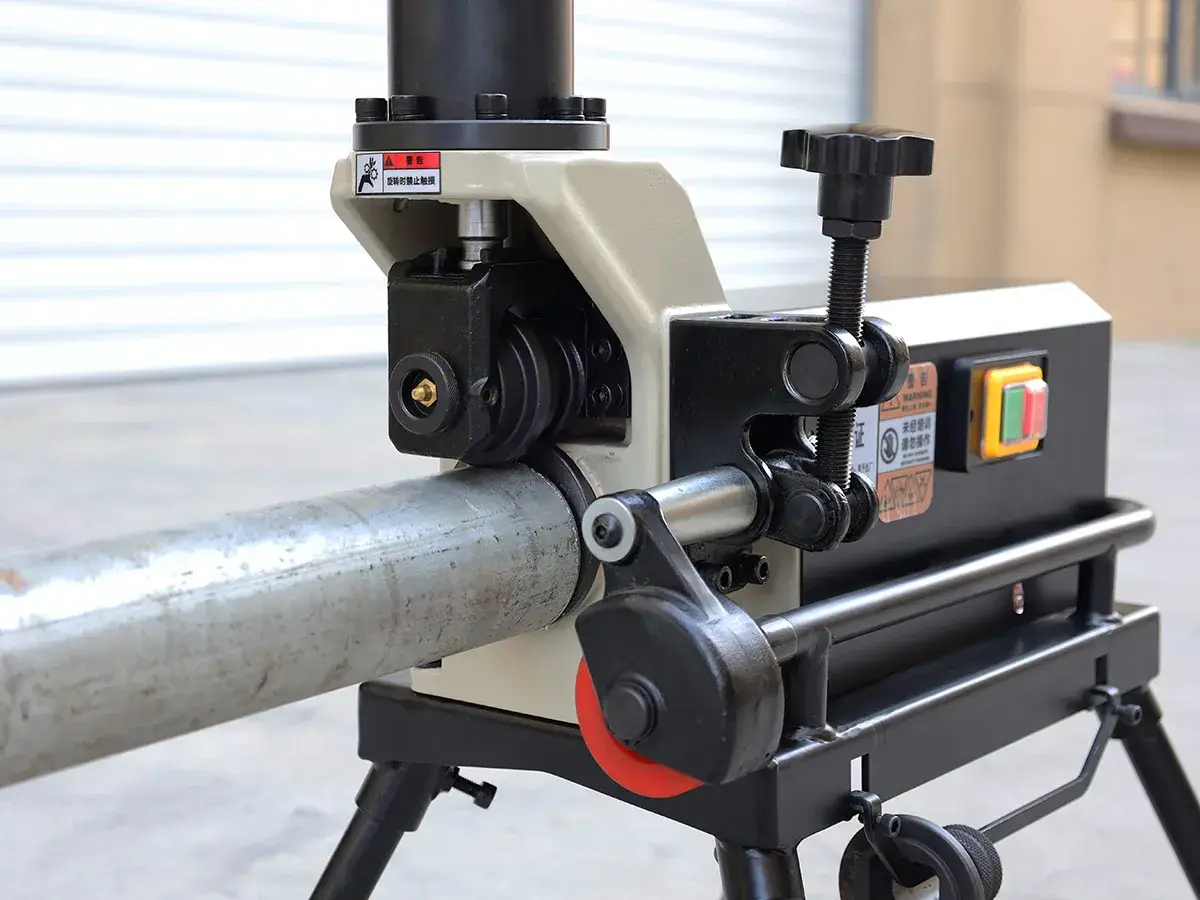

    • Graduated Groove Depth Stop
      Graduated Groove Depth Stop

      The graduated groove depth stop allows quick depth adjustment and clear visual reference. It also helps maintain consistent groove depth during repeated processing.

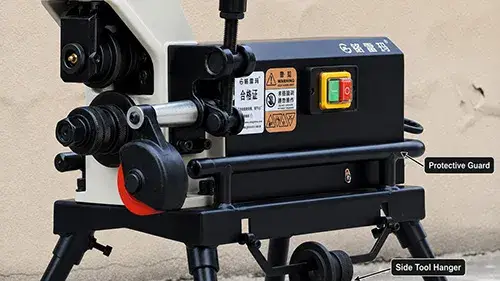

    • Protective Guard & Side Tool Holder
      Protective Guard & Side Tool Holder

      A protective guard improves operator safety and makes the machine easier to transport. The side-mounted tool holder provides convenient storage for commonly used tools during operation.

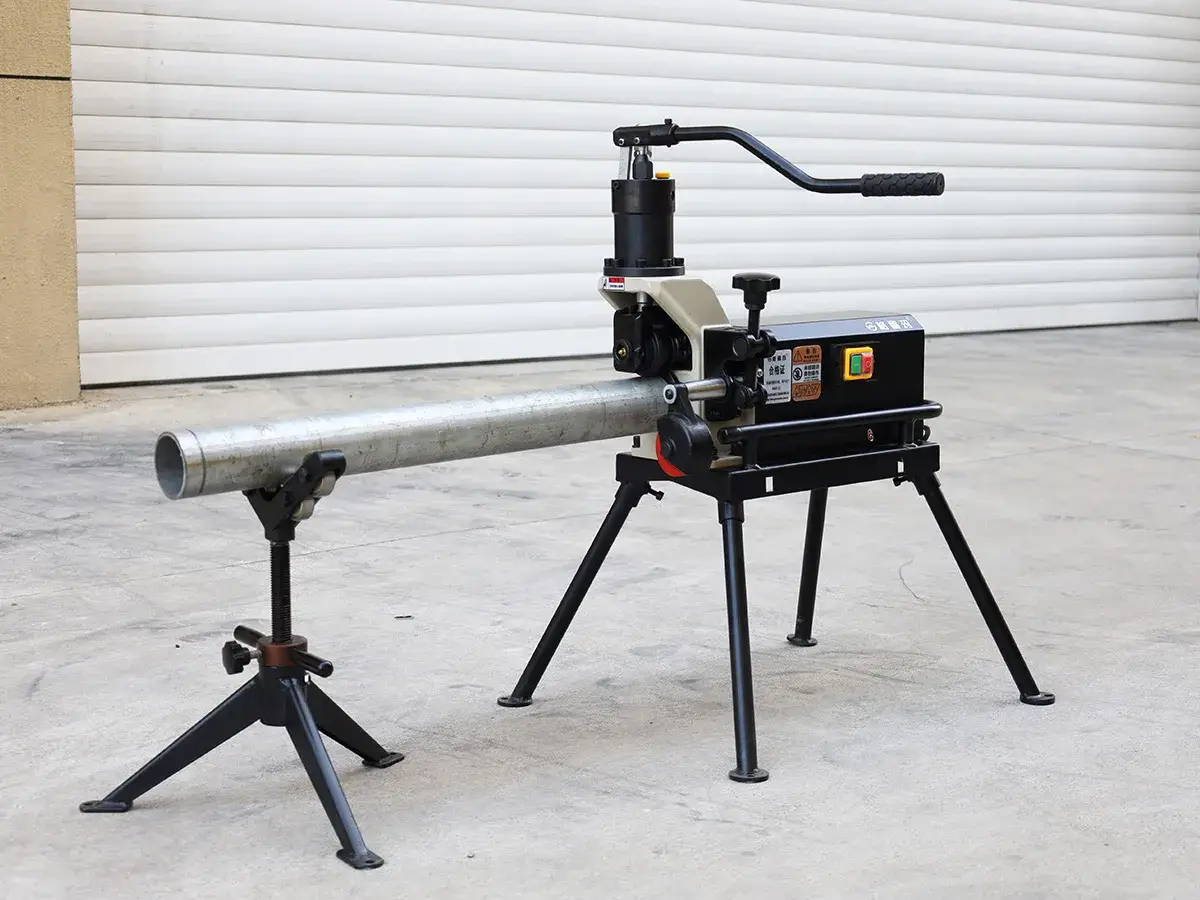

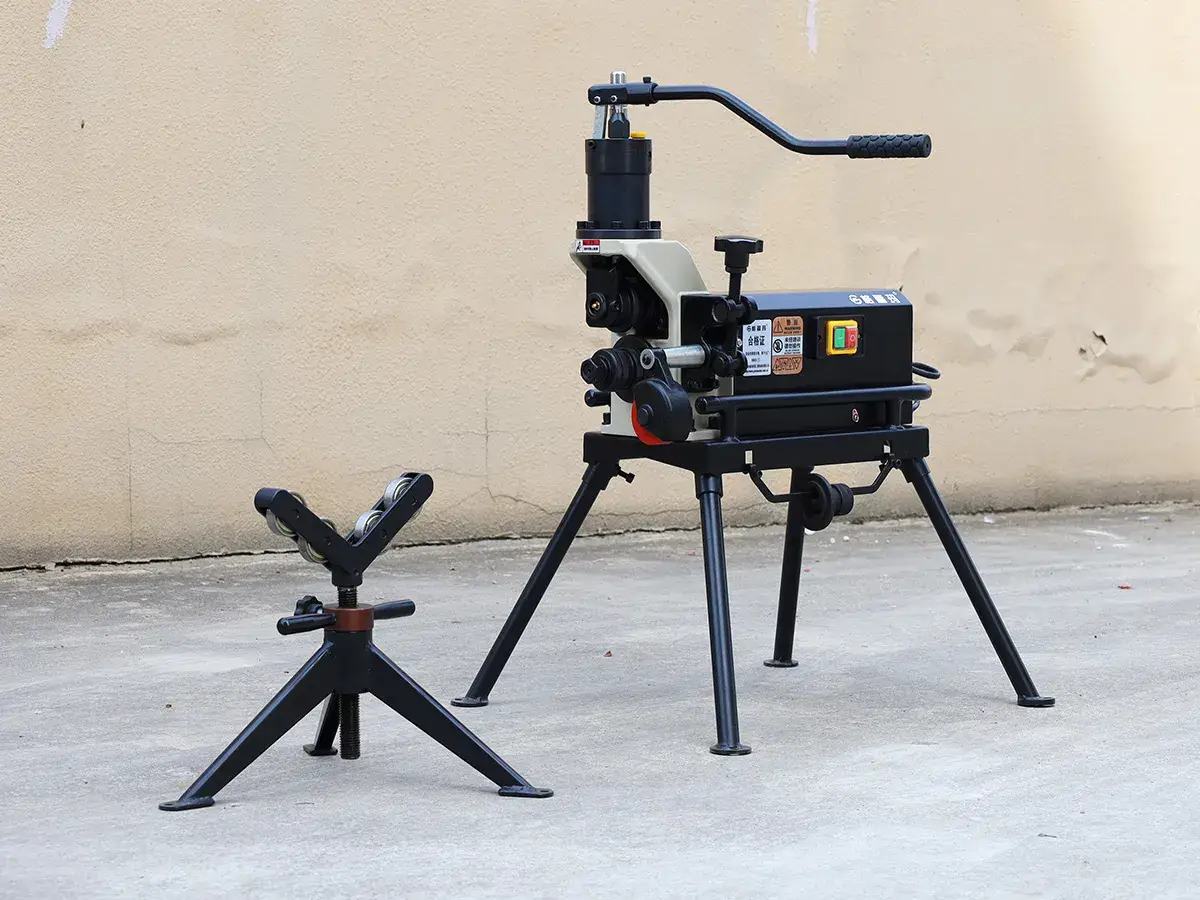

    • Pipe Stand
      Pipe Stand

      The simple pipe stand design is easy to use on site and supports smooth pipe rotation during grooving.

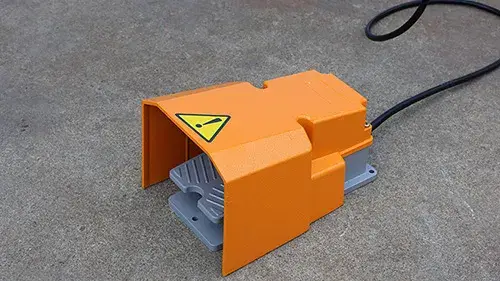

    • Foot Switch
      Foot Switch

      The foot switch controls the start and stop functions, so the operator can focus on pipe support and groove alignment during operation.

More
Standard Roll Sets Specifications
Description Net Weight
Standard Roll Sets Specifications Drive Roll 2"-2 ½" (O.D. 60–73 mm) 0.40 kg
Drive Roll 3"–6" (O.D. 89–168 mm) 0.80 kg
Drive Roll 8" (O.D. 219 mm) 1.00 kg
Groove Roll 2"–6" (O.D. 60–168 mm) 0.50 kg
Groove Roll 8" (O.D. 219 mm) 0.60 kg
