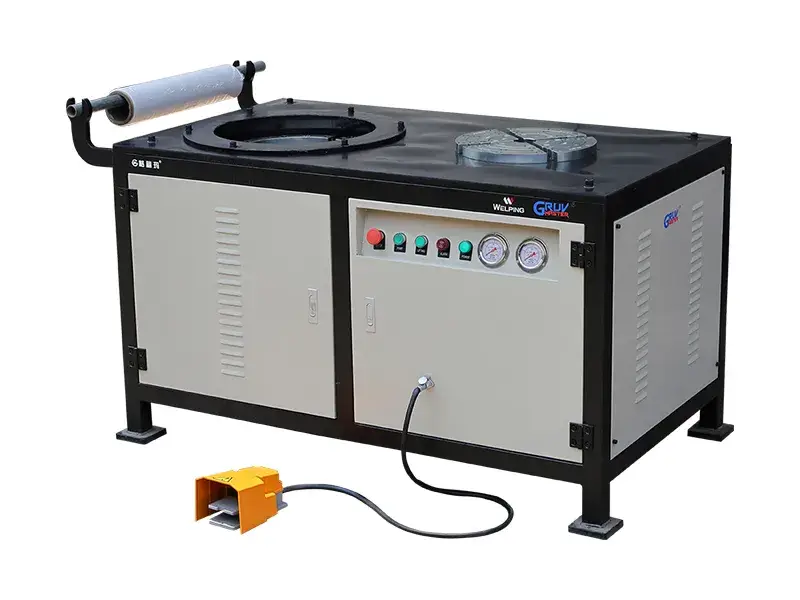

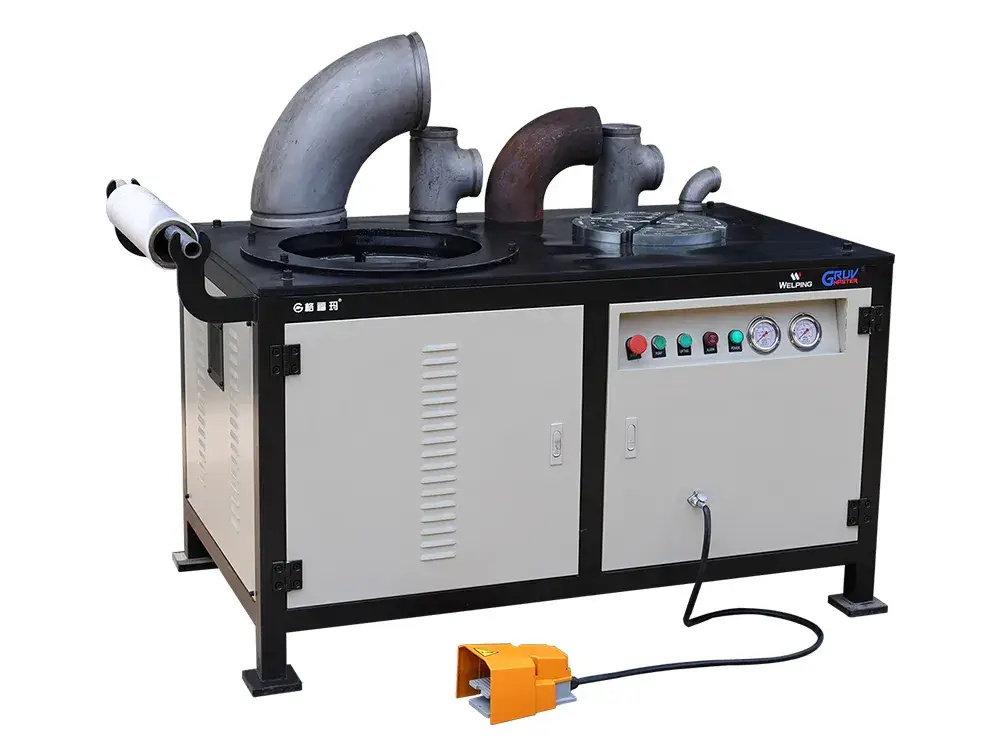

GM-4X 2"–24" Groove End Reforming Machine

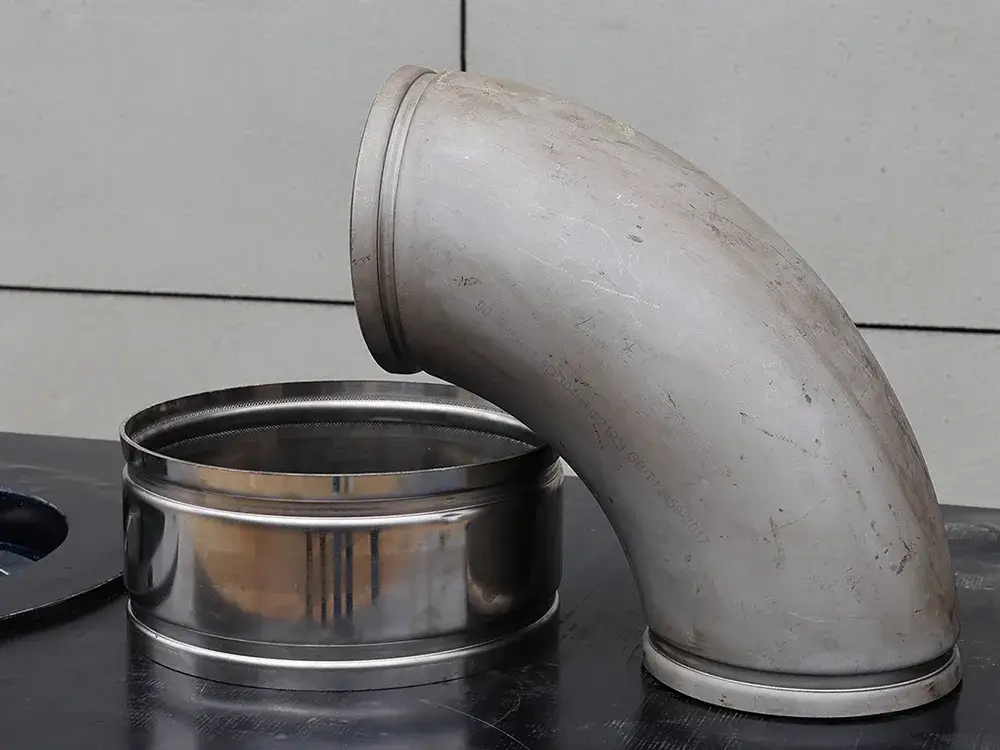

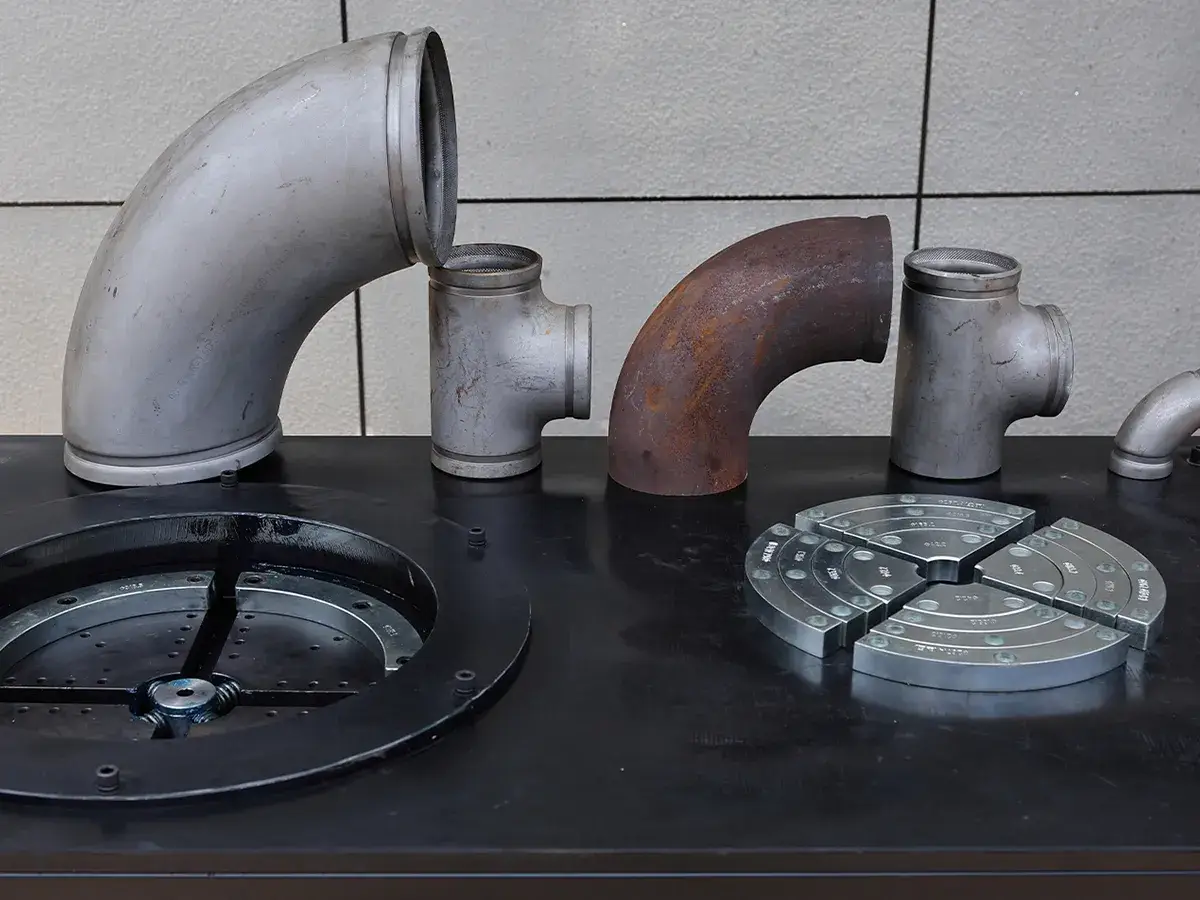

This groove end reforming machine is designed for groove end correction of 2"–24" pipe fittings. It is suitable for elbows, tees, and reducers. It performs end surface correction and repair to ensure dimensional accuracy and consistency before installation, suitable for heavy-duty and continuous working conditions.

  • Capacity 2"–24", SCH 10/40
  • Max. Wall Thickness 10 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Roll Groovers
Specifications
Model GM-4X
Applicable Materials Carbon Steel Pipe
Stainless Steel Pipe
Capacity 2"–24", SCH 10/40
Power Requirements 380 V, 50 Hz
Max. Wall Thickness 10 mm
Max. Cylinder Force 20 Tons
Motor Power 2200 W
Packaging Dimensions (L×W×H) 195 × 110 × 120 cm
Gross Weight 1160 kg
Features

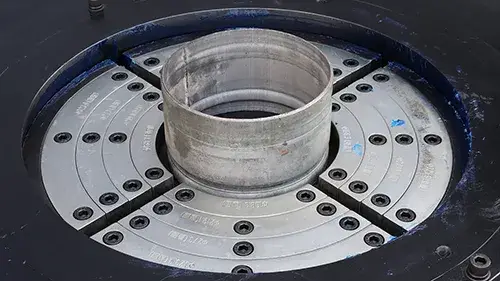

    • Hydraulic Driven Forming Process
      Hydraulic Driven Forming Process
      • The groove end reforming machine uses a built-in hydraulic system to complete the reforming process in a single operation.
      • It reduces manual adjustment and improves processing efficiency and stability.
    • Non-Damaging Surface Treatment
      Non-Damaging Surface Treatment
      • The reforming process is fully controlled and does not damage the sealing surface of pipe fittings.
      • It helps maintain sealing reliability in grooved pipe connections.
    • Stable Power System
      Stable Power System

      Equipped with a 2200W branded motor and hydraulic power unit, the system delivers stable output and supports continuous operation under heavy-duty working conditions.

    • Easy & Safe Operation
      Easy & Safe Operation
      • Button control combined with a foot switch provides direct response during operation.
      • It improves ease of use and enhances operational safety in field and workshop environments.
More

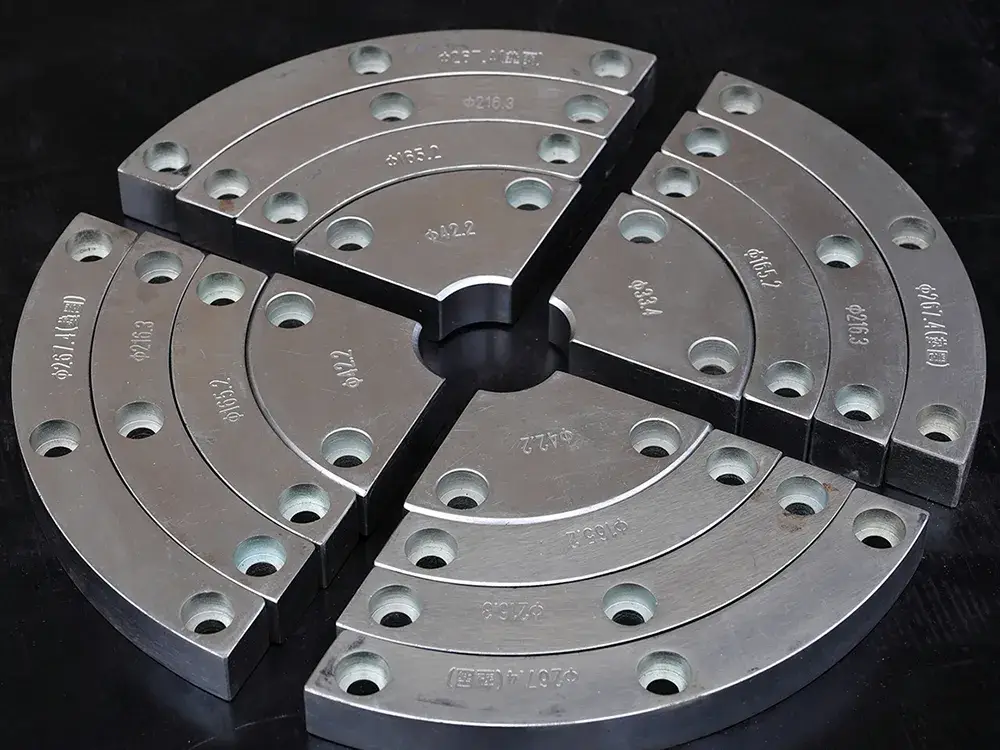

Standard Equipment
Description Net Weight

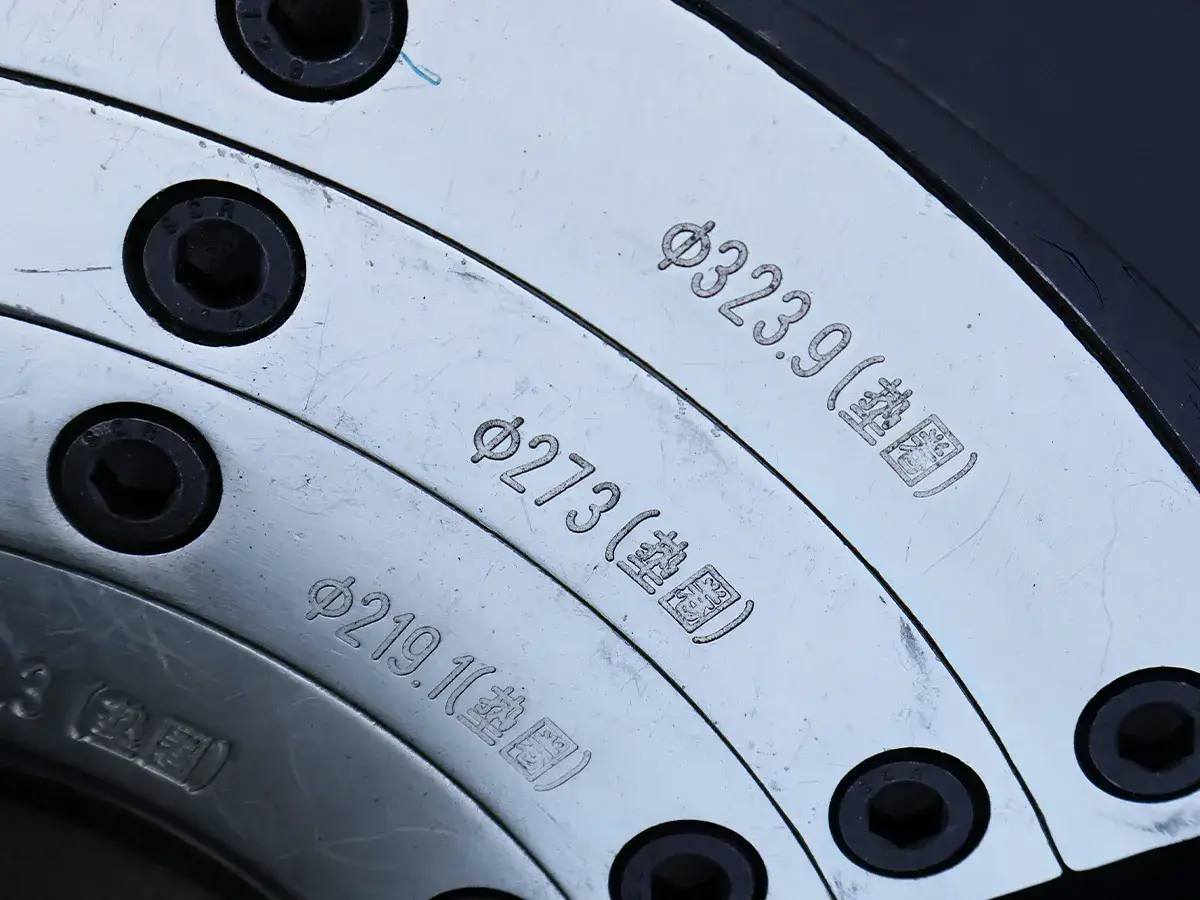

Pipe Rounding Die 2" (O.D. 60.3 mm) 0.25 kg
Pipe Rounding Die (O.D. 70.0 mm) 0.35 kg
Pipe Rounding Die 3" (O.D. 88.9 mm) 0.50 kg
Pipe Rounding Die 4" (O.D. 114.3 mm) 0.60 kg
Pipe Rounding Die 5" (O.D. 141.3 mm) 0.70 kg
Pipe Rounding Die 6" (O.D. 168.3 mm) 0.80 kg
Pipe Rounding Die (O.D. 216.3 mm) 1.00 kg
Pipe Rounding Die (O.D. 219.1 mm) 1.20 kg
Pipe Rounding Die (O.D. 267.4 mm) 1.50 kg
Pipe Rounding Die (O.D. 273.0 mm) 1.60 kg
Pipe Rounding Die (O.D. 318.5 mm) 1.80 kg
Pipe Rounding Die (O.D. 323.9 mm) 2.00 kg
