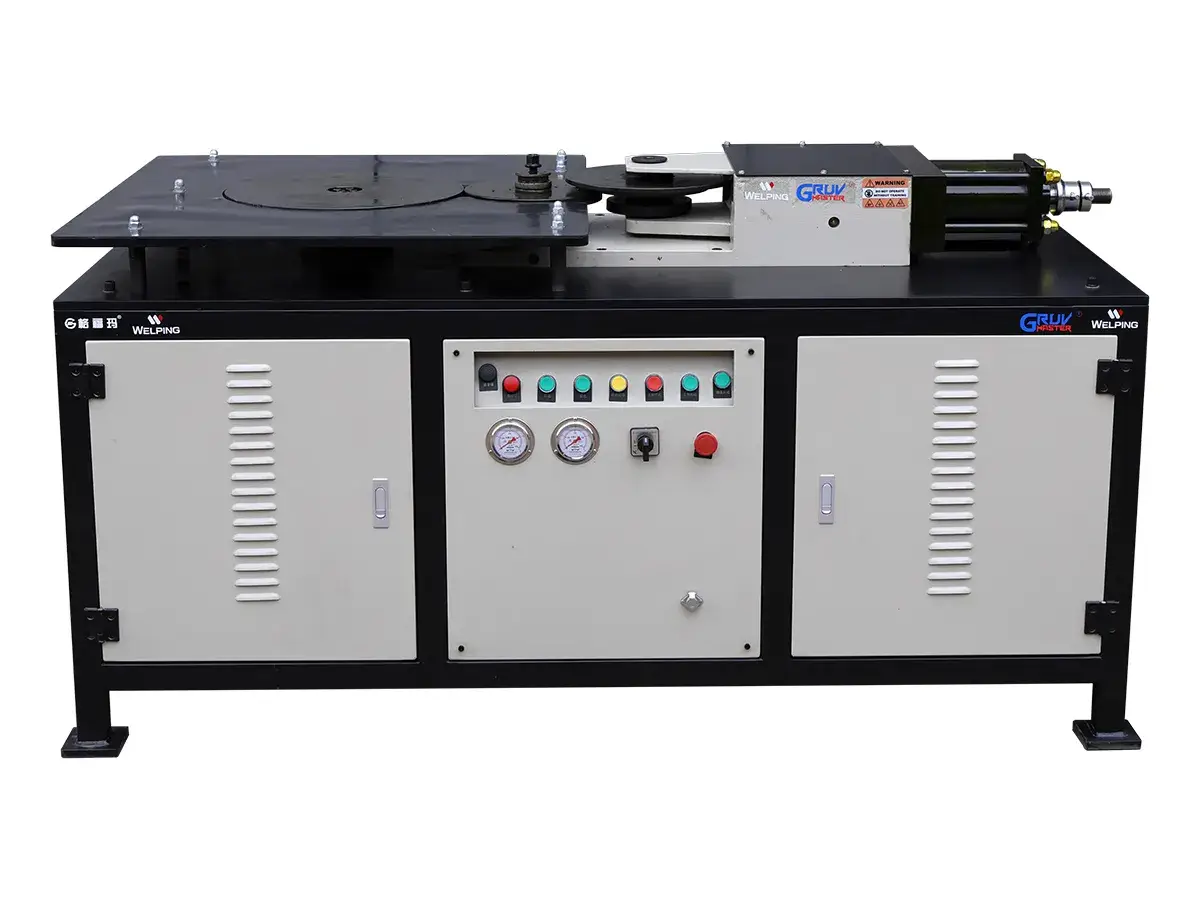

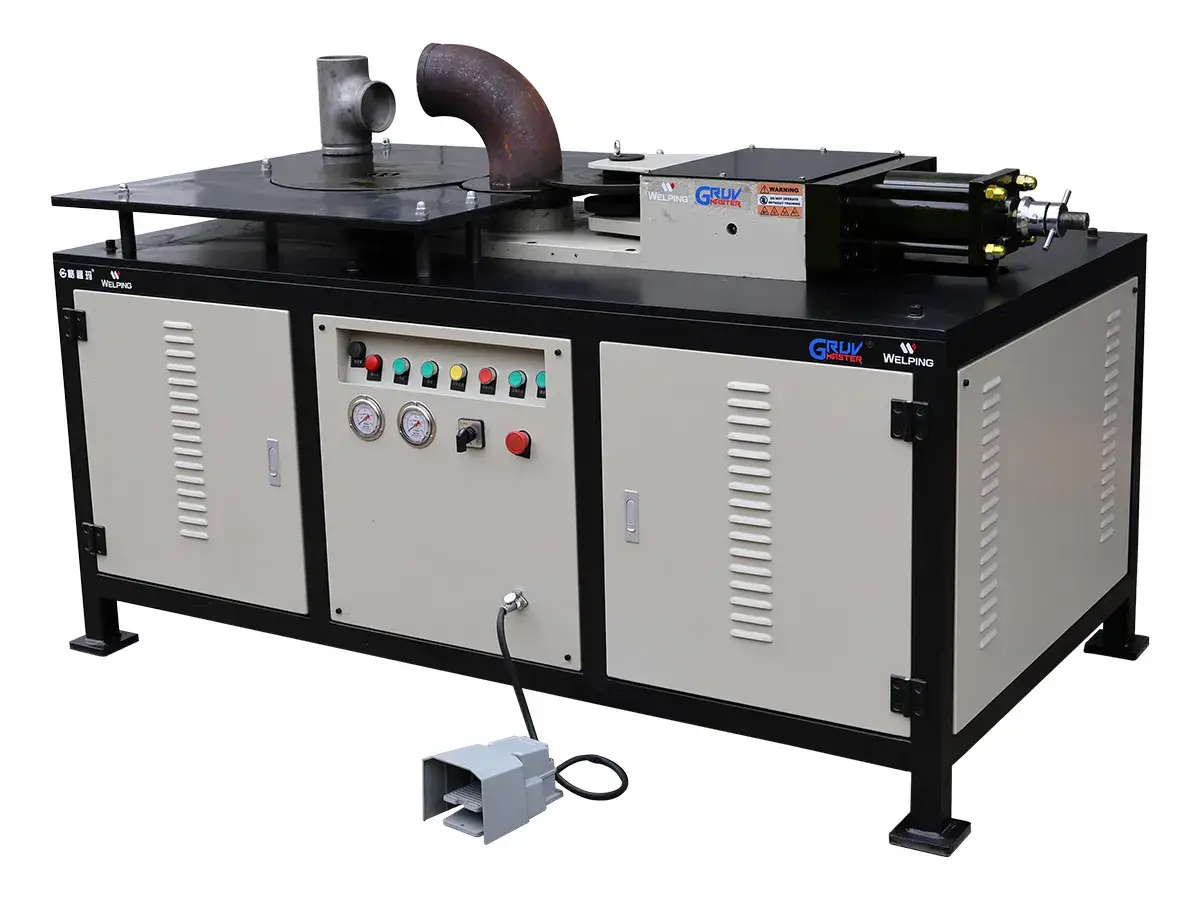

GF-4X 2"–24" Pipe Fitting Roll Grooving Machine

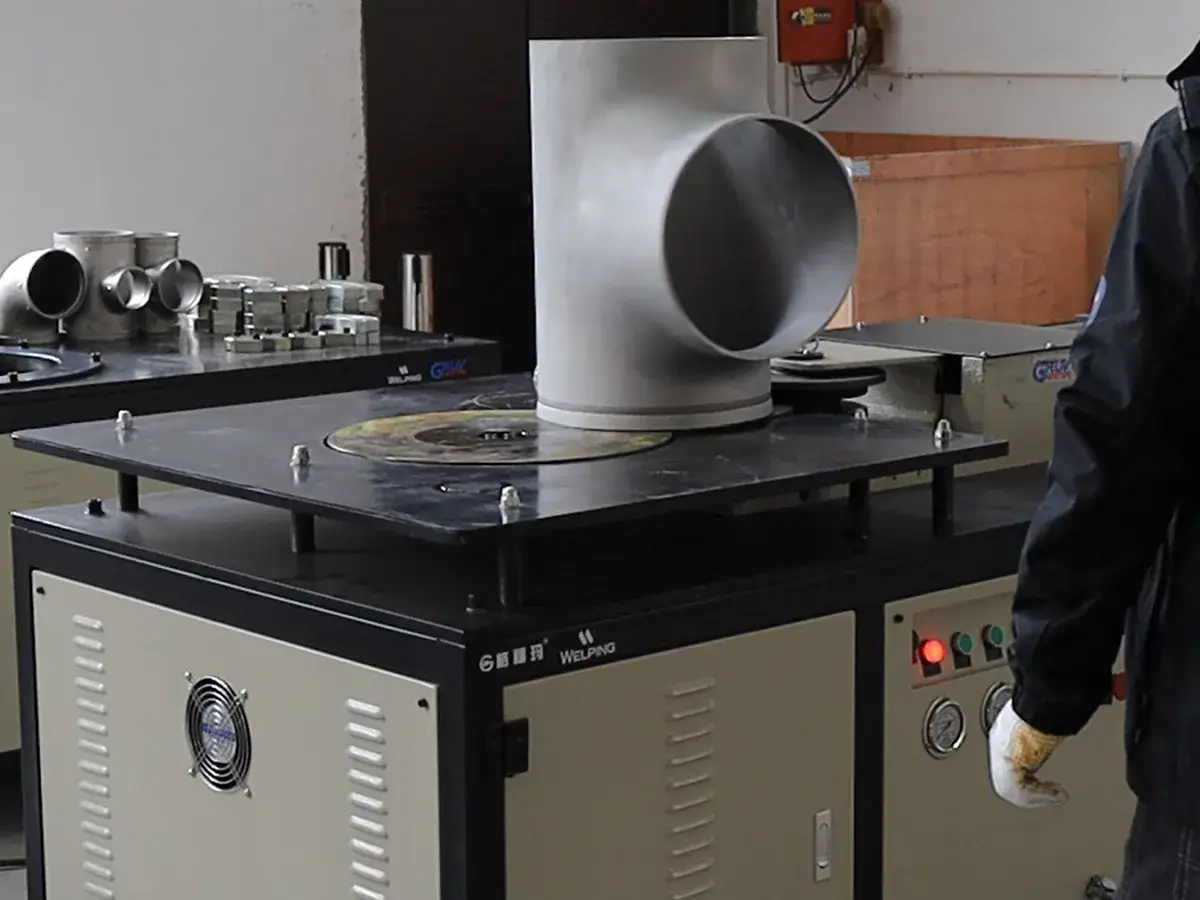

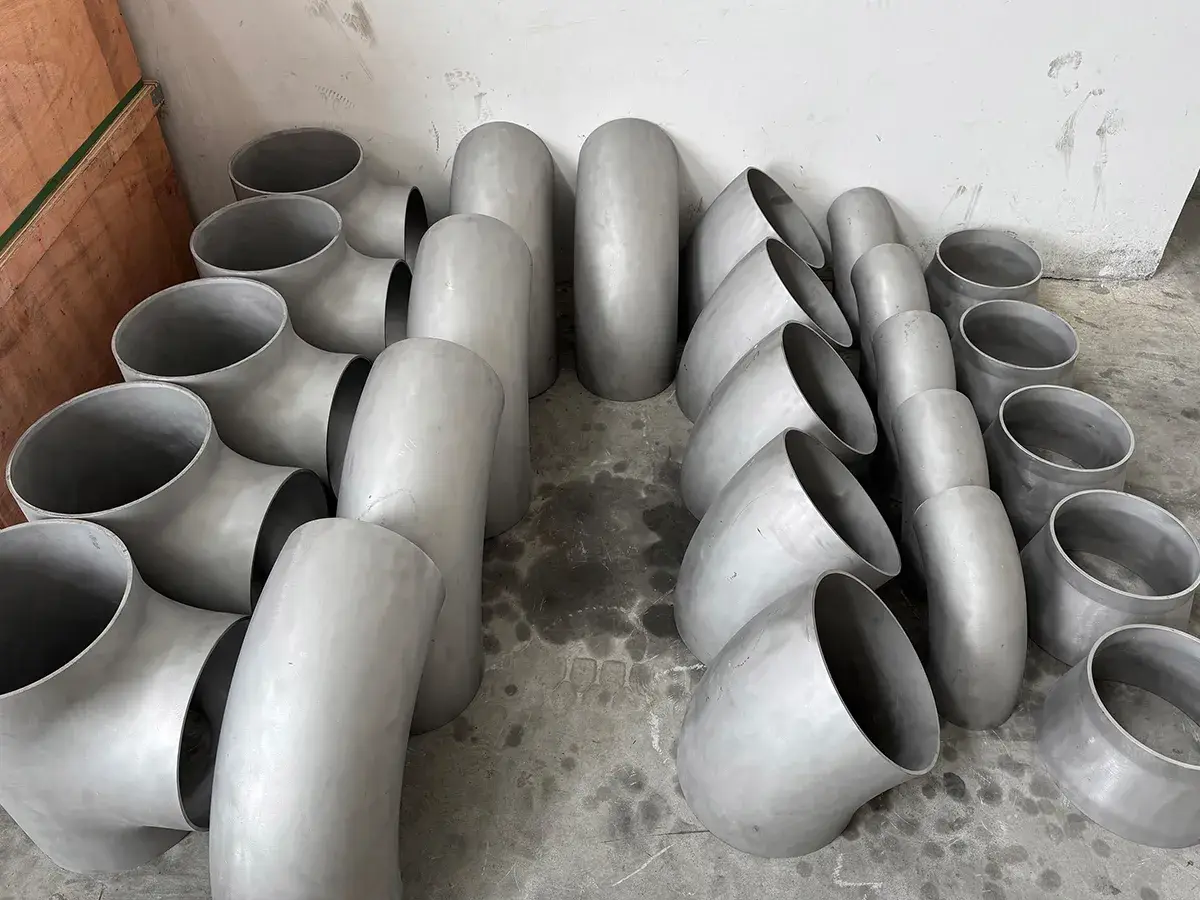

GF-4X is a fully automatic pipe fitting roll grooving machine designed for 2"–24" carbon steel and stainless steel fittings, including elbows, tees, and reducers. It supports heavy-wall processing up to 13 mm and is suitable for industrial batch production. It features an automatic grooving control system and an anti-pipe-slip design that helps prevent movement during rotation. Groove dimensions comply with OGS (AWWA C606) standards and ensures consistent performance in large-diameter fitting processing.
- Capacity 2"–24", SCH 10/40
- Max. Wall Thickness 13 mm
- Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Specifications
| Model | |
| Applicable Materials | Carbon Steel Pipe, Stainless Steel Pipe |
| Capacity | 2”–24”, SCH 10/40 |
| Power Requirements | 380 V, 50 Hz |
| Max. Wall Thickness | 13 mm |
| Spindle Speed | 23 RPM |
| Motor Power | 2200 W |
| Packaging Dimensions (L×W×H) | 195 × 110 × 120 cm |
| Gross Weight | 1150 kg |
Features
-
- Independent hydraulic station works together with the electrical control system to deliver stable output.
- The system maintains controlled grooving operation and reduces fluctuations that may affect machining quality.

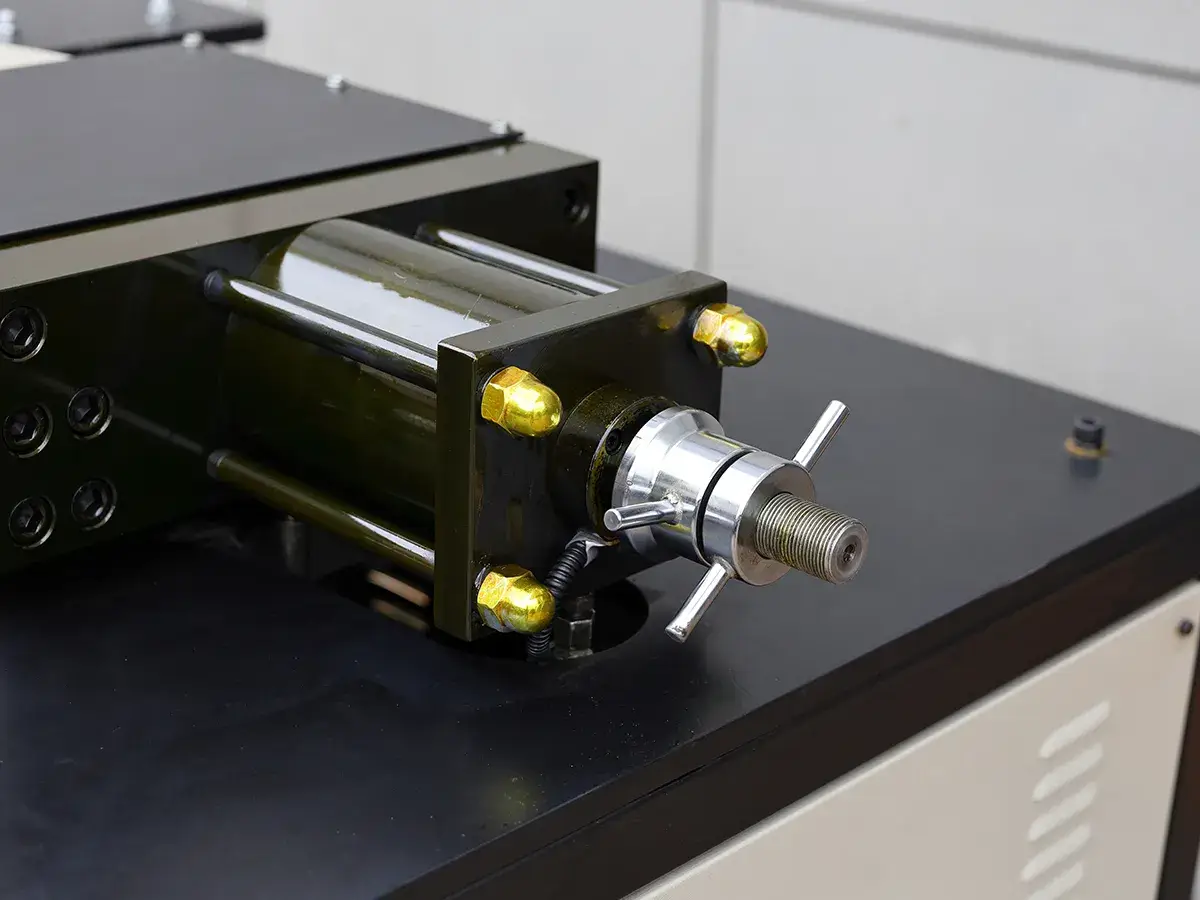

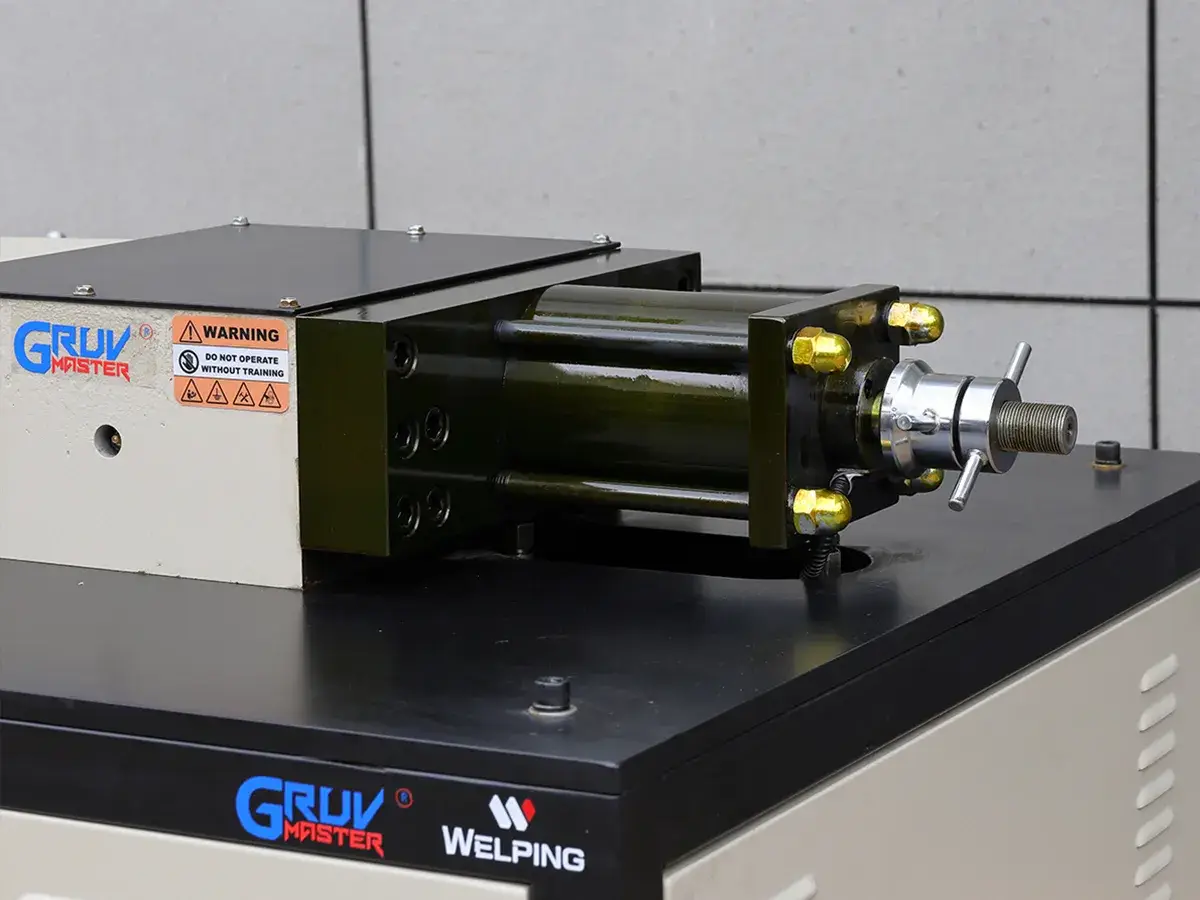

Hydraulic System
-

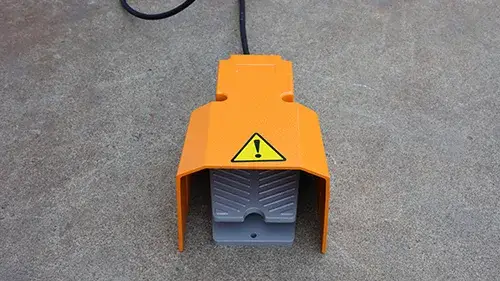

Foot Switch -

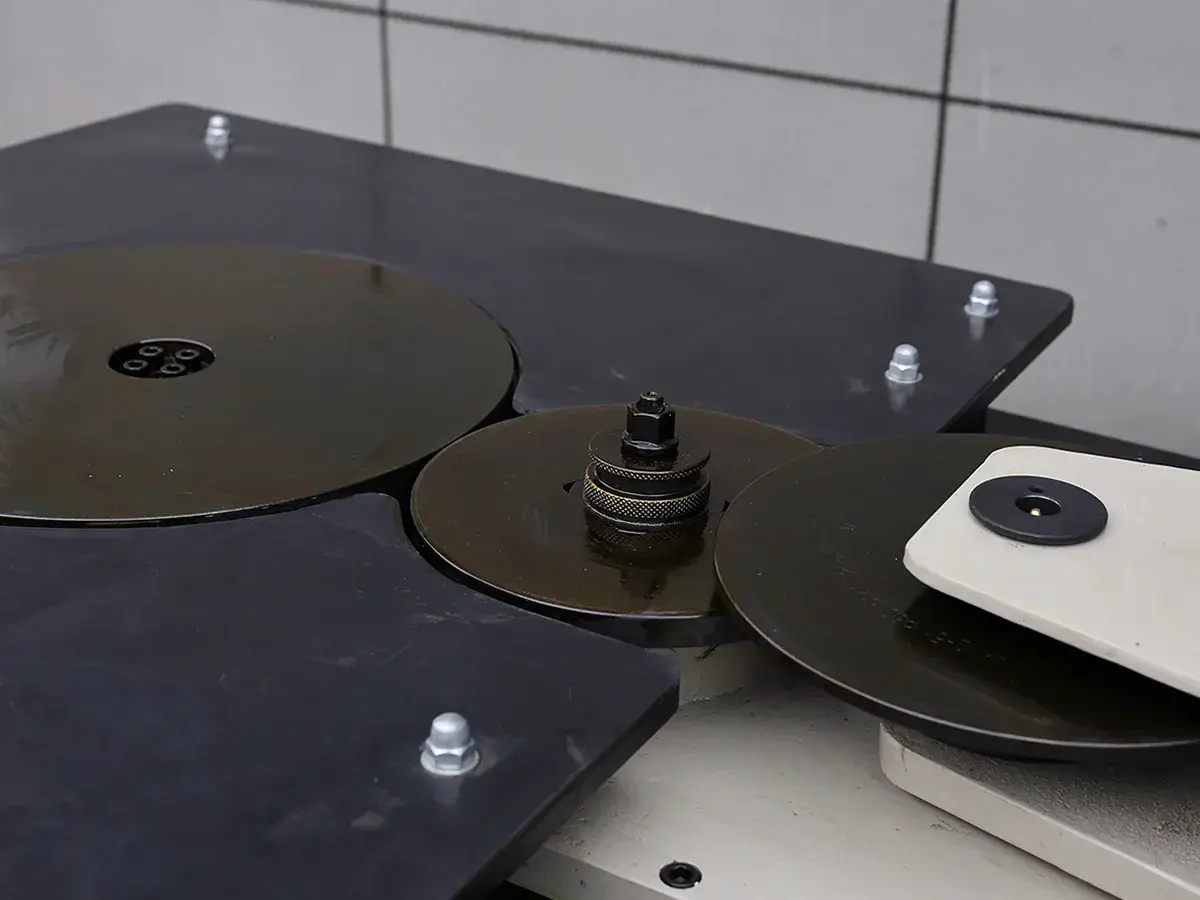

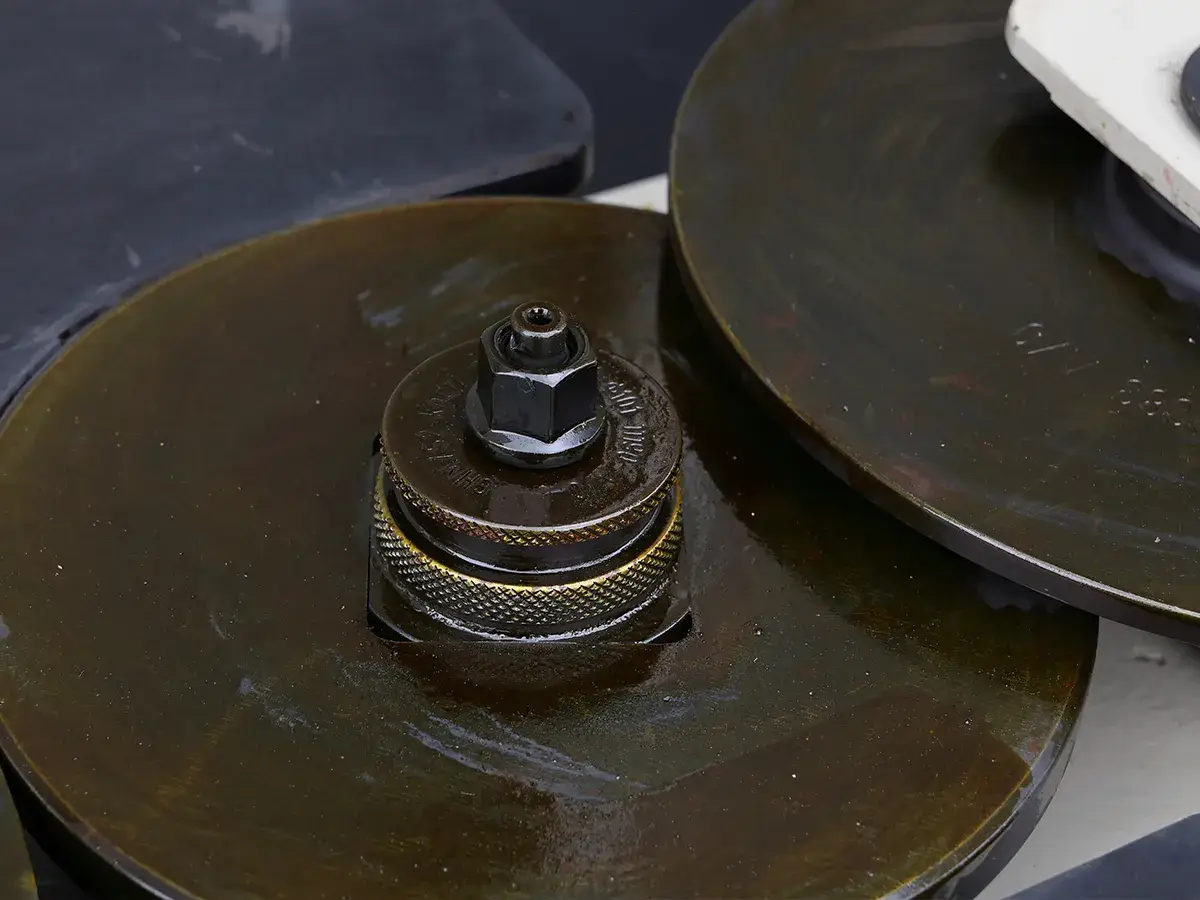

Roller Assembly
Standard Equipment
| Description | Net Weight |
| Drive Roll 1 ½” (O.D. 48.3 mm) | 1.50 kg |
| Drive Roll 2”–2 ½” (O.D. 60.3–73.0 mm) | 1.50 kg |
| Drive Roll 3”–3 ½” (O.D. 88.9–101.6 mm) | 2.00 kg |
| Drive Roll 4”–5” (O.D. 114.3–141.3 mm) | 1.20 kg |
| Drive Roll 6” (O.D. 168.3 mm) | 3.00 kg |
| Drive Roll 8”–12” (O.D. 219.1–323.9 mm) | 3.00 kg |
| Drive Roll 14”–16” (O.D. 355.6–406.4 mm) | 4.00 kg |
| Drive Roll 18”–24” (O.D. 457.2–609.6 mm) | 2.10 kg |
| Groove Roll 2”–5” (O.D. 60.3–141.3 mm) | 14.00 kg |
| Groove Roll 6” (O.D. 168.3 mm) | 14.00 kg |
| Groove Roll 8”–12” (O.D. 219.1–323.9 mm) | 13.50 kg |
