Pipe Cutting Machine, Steel Pipe Cutter

It is suitable for pipe sizes from 1"–20" (SCH10–SCH40) and is widely used in construction, fire protection systems, and piping installation projects.

1/2"–5.5" Portable Pipe Cutting Machine, PTC140
  • 1/2"–5.5" Portable Pipe Cutting Machine, PTC140
  • 1/2"–5.5" Portable Pipe Cutting Machine, PTC140
  • 1/2"–5.5" Portable Pipe Cutting Machine, PTC140
  • 1/2"–5.5" Portable Pipe Cutting Machine, PTC140
  • 1/2"–5.5" Portable Pipe Cutting Machine, PTC140
  • 1/2"–5.5" Portable Pipe Cutting Machine, PTC140

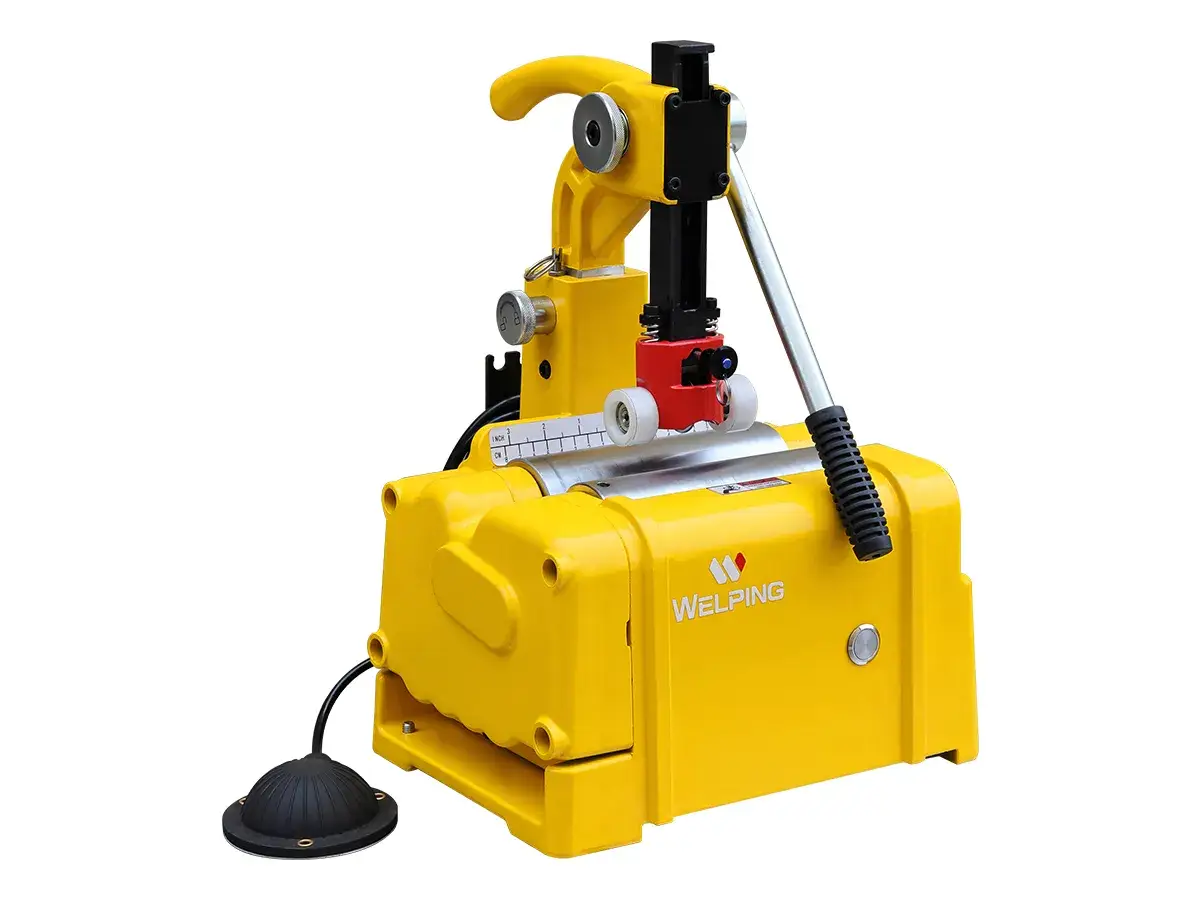

PTC140 1/2"–5.5" Portable Pipe Cutting Machine

This compact bench-type pipe cutting machine is designed for fast and precise cutting of small-diameter pipes. It supports a wide cutting range and reaches a maximum speed of 350 RPM. The pipe cutter supports both AC power and lithium battery operation, so it is suitable for fixed workshop use as well as mobile applications such as field work and elevated installation environments without power supply.

  • Capacity 12–141 mm
  • Max. Wall Thickness 3 mm for Metal pipes, 5 mm for PVC pipe
  • Applicable Materials Thin-walled Steel, Stainless Steel, Copper, Aluminum, PVC Pipe
Request a Quote
Specifications
Model PTC-140
Applicable Materials Thin-walled Steel, Stainless Steel, Copper, Aluminum, PVC Pipe
Capacity 12–141 mm
Motor Power 500 W
Spindle Speed 0–350 RPM
Power Requirements 220 V, Single Phase
Max. Wall Thickness 3 mm for Metal pipes, 5 mm for PVC pipe
Packaging Dimensions (L×W×H) 37 × 35 × 56 cm
Gross Weight 32 kg
Net Weight 20 kg
Features

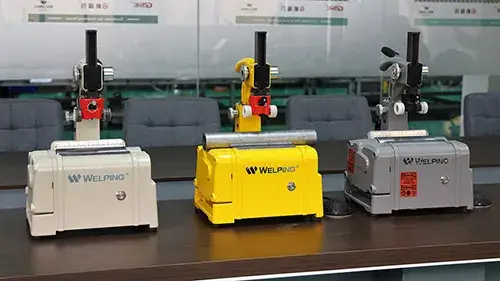

    • Compact Built made of Aluminum Alloy
      Compact Built made of Aluminum Alloy
      • Compact design suitable for bench-top operation, allowing single-person handling and easy use.
      • The aluminum alloy built provides structural rigidity and long-term durability.
      • Custom colors and OEM branding are available.

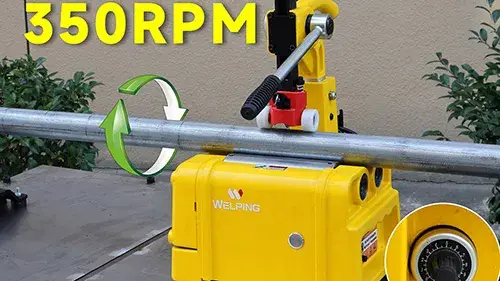

    • Cutting Performance
      Cutting Performance
      • 10-speed stepless speed control allows adjustment based on pipe diameter and material.

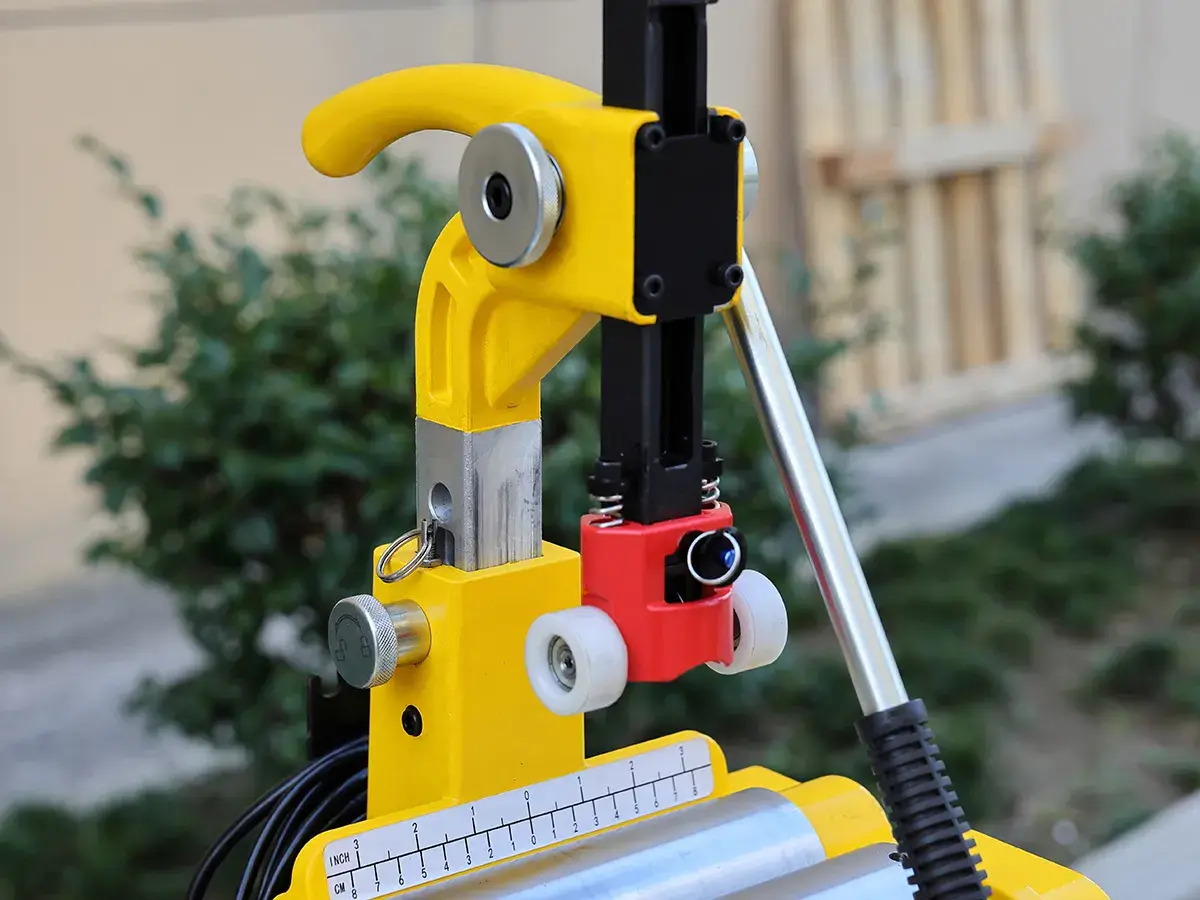

      • Quick-change cutting head design enables fast blade replacement for improved efficiency.

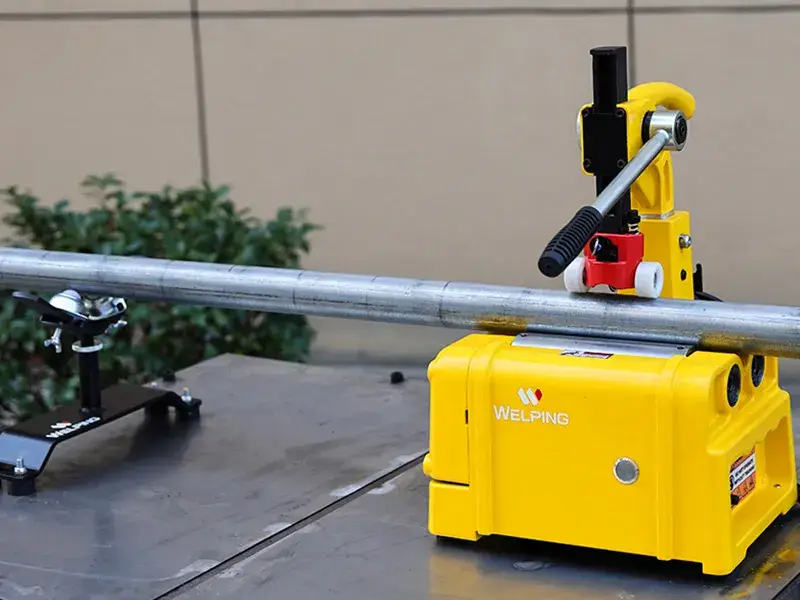

    • Pipe Support Tand & Mobility Structure
      Pipe Support Tand & Mobility Structure

      Adjustable handle design allows repositioning when operating space is limited, improving usability during cutting tasks.

    • High Compatibility for Thin-Wall Pipes
      High Compatibility for Thin-Wall Pipes
      • Suitable for a wide range of thin-wall pipes including steel, stainless steel, copper, aluminum, and PVC pipes.
      • Three-level height adjustment system supports different pipe sizes and working conditions.
    • Adjustable Cutting Speed
      Adjustable Cutting Speed
      • Cutting speed can be adjusted according to pipe diameter.
      • Higher speed is recommended for small pipes, while lower speed is recommended for larger diameter pipes.
