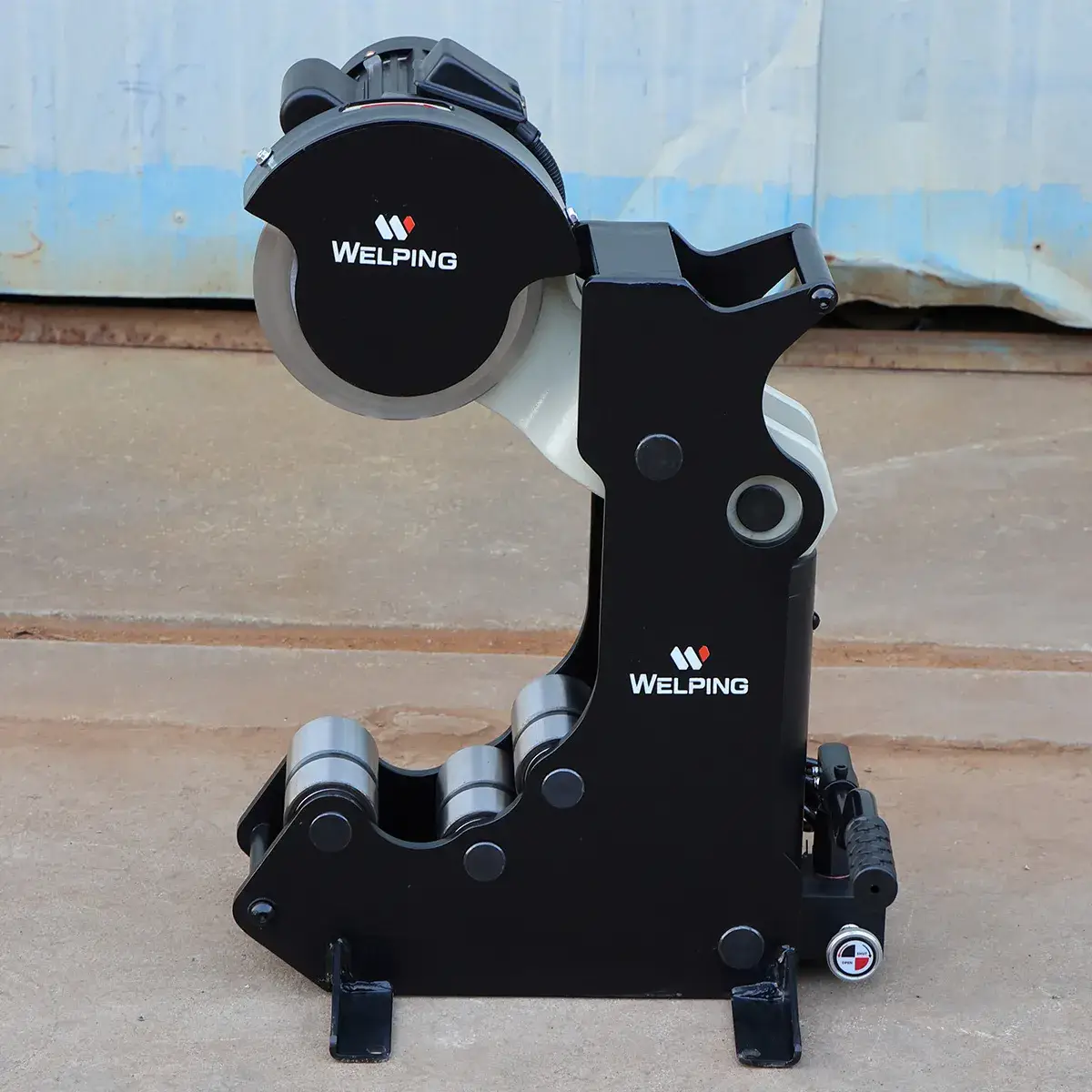

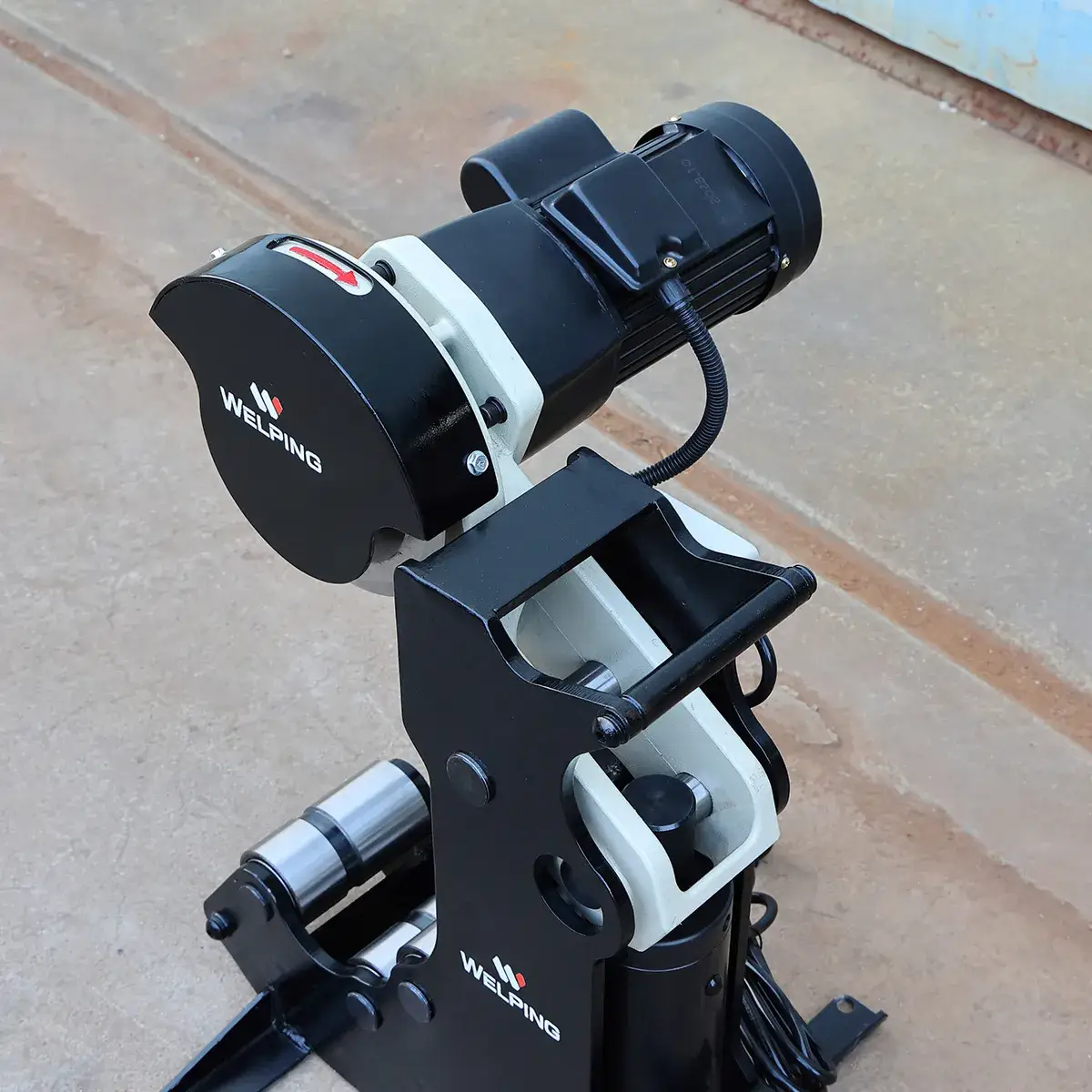

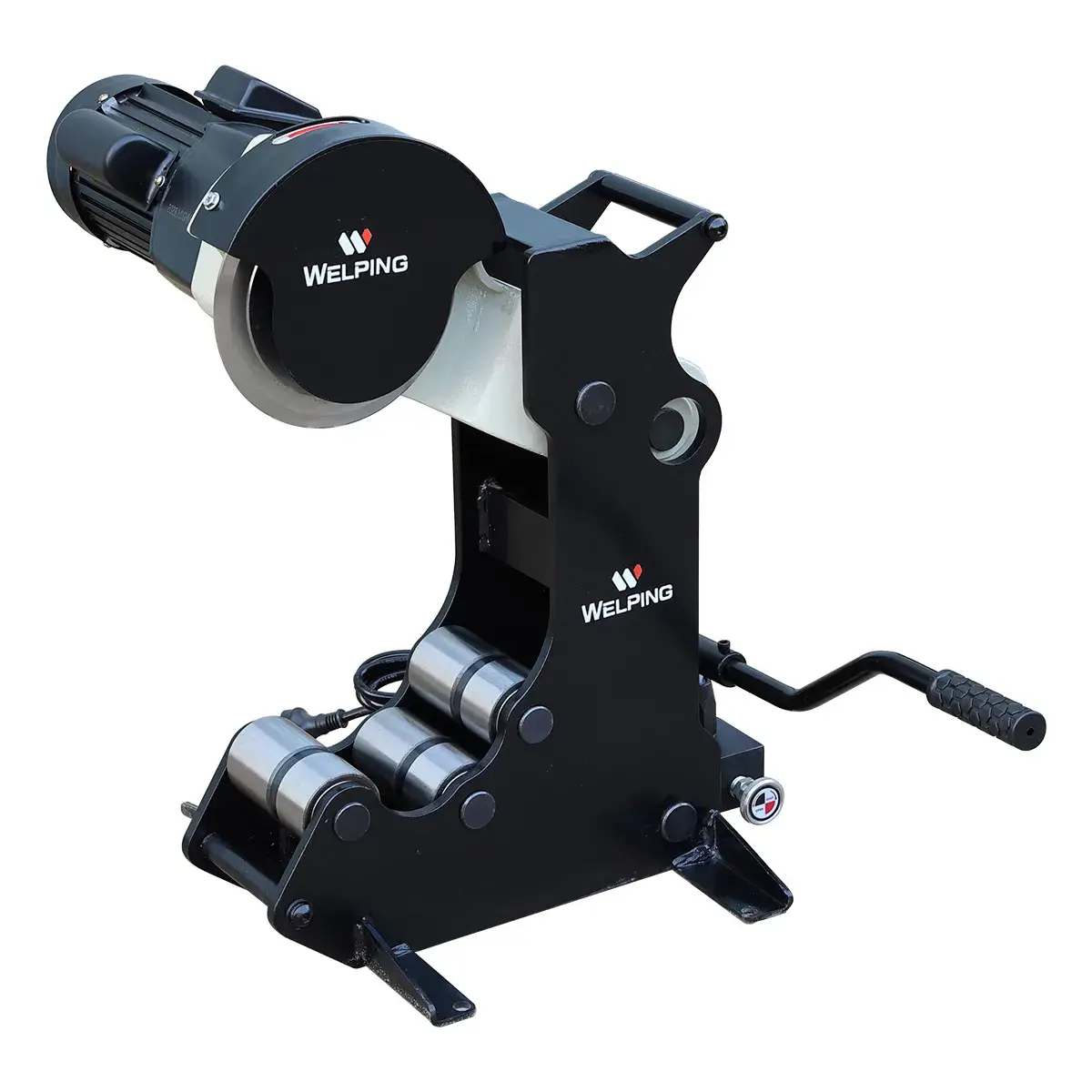

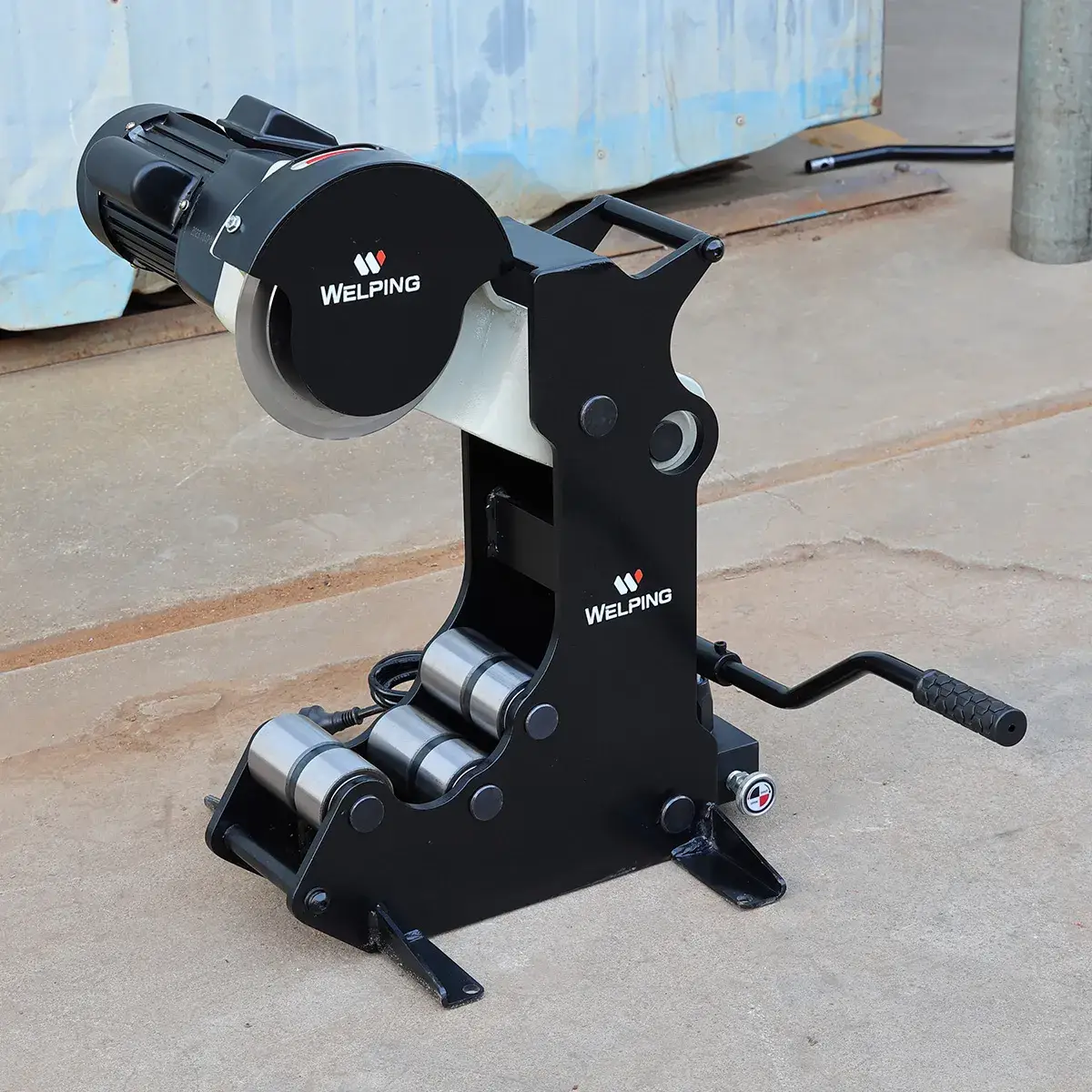

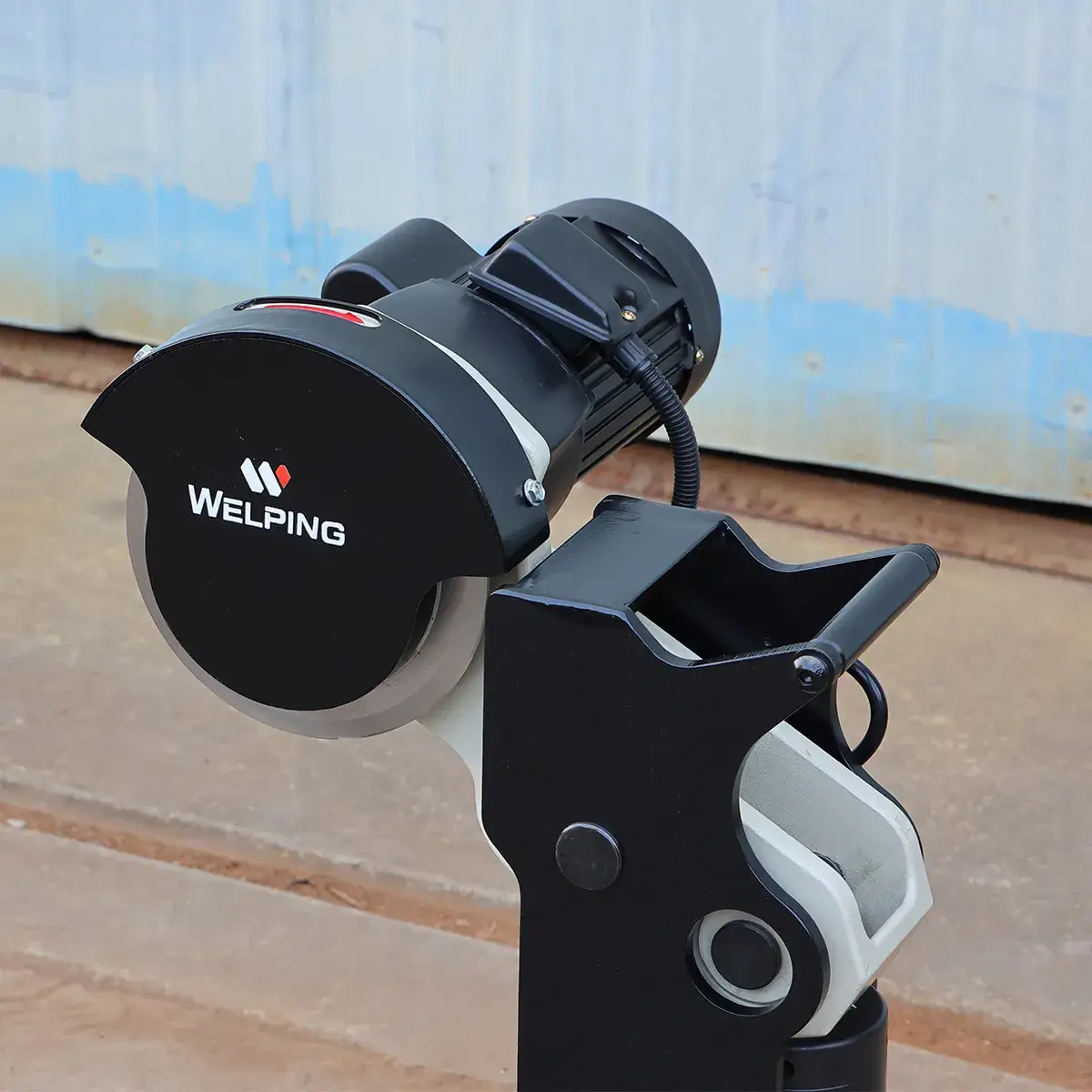

CM-8 2"–8" Hydraulic Pipe Cutting Machine

The 2"–8" electric hydraulic pipe cutting machine is designed for stable cold cutting of multiple pipe materials. It supports steel, carbon steel, stainless steel, ductile iron, aluminum pipes, as well as PE and PVC pipes. The pipe cutter is suitable for straight, burr-free cutting in construction, fire protection, and pipeline installation projects. The hydraulic drive system provides stable cutting performance and precise control during operation. It uses a cold cutting process that eliminates sparks during cutting for safety in environments with flammable materials and to avoid heat impact on pipe structure.

  • Capacity 2"–8" (O.D. 60.3–219.1 mm)
  • Max. Wall Thickness 8 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe, Ductile Iron Pipe
Request a Quote Comparison of Pipe Cutting Machines PDF
Specifications
Model CM-8
Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe, Ductile Iron Pipe
Capacity 2"–8" (O.D. 60.3–219.1 mm)
Motor Power 700 W
Spindle Speed 30 RPM
Power Requirements 110V/220V, 50/60Hz, Single Phase
Max. Wall Thickness 8 mm
Packaging Dimensions (L×W×H) 60 × 47 × 75 cm
Gross Weight 84 kg
Features

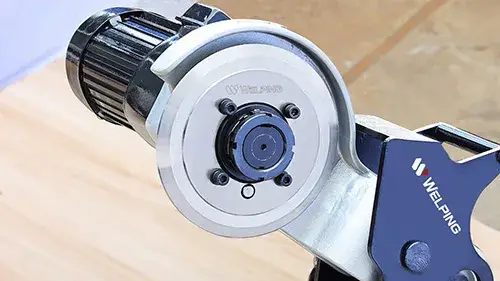

    • Cast Iron Housing
      Cast Iron Housing
      • The pipe cutting machine head uses thickened ductile iron construction for stable performance under heavy-duty working conditions.
      • Custom color options are available.

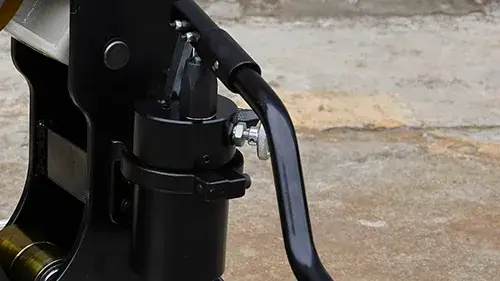

    • Hydraulic Pump
      Hydraulic Pump
      • Split hydraulic pump and cylinder structure with fully enclosed design and high-quality sealing components for long-term field operation without leakage.
      • Precision-machined cylinder ensures accurate dimensions.
      • Hardened piston rod improves durability and service life.

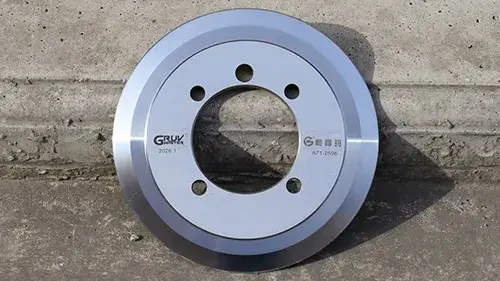

    • Cutting Blade
      Cutting Blade
      • High-strength alloy steel cutting blade with long service life and easy replacement.
      • Optional blade set available for ductile iron pipe cutting.

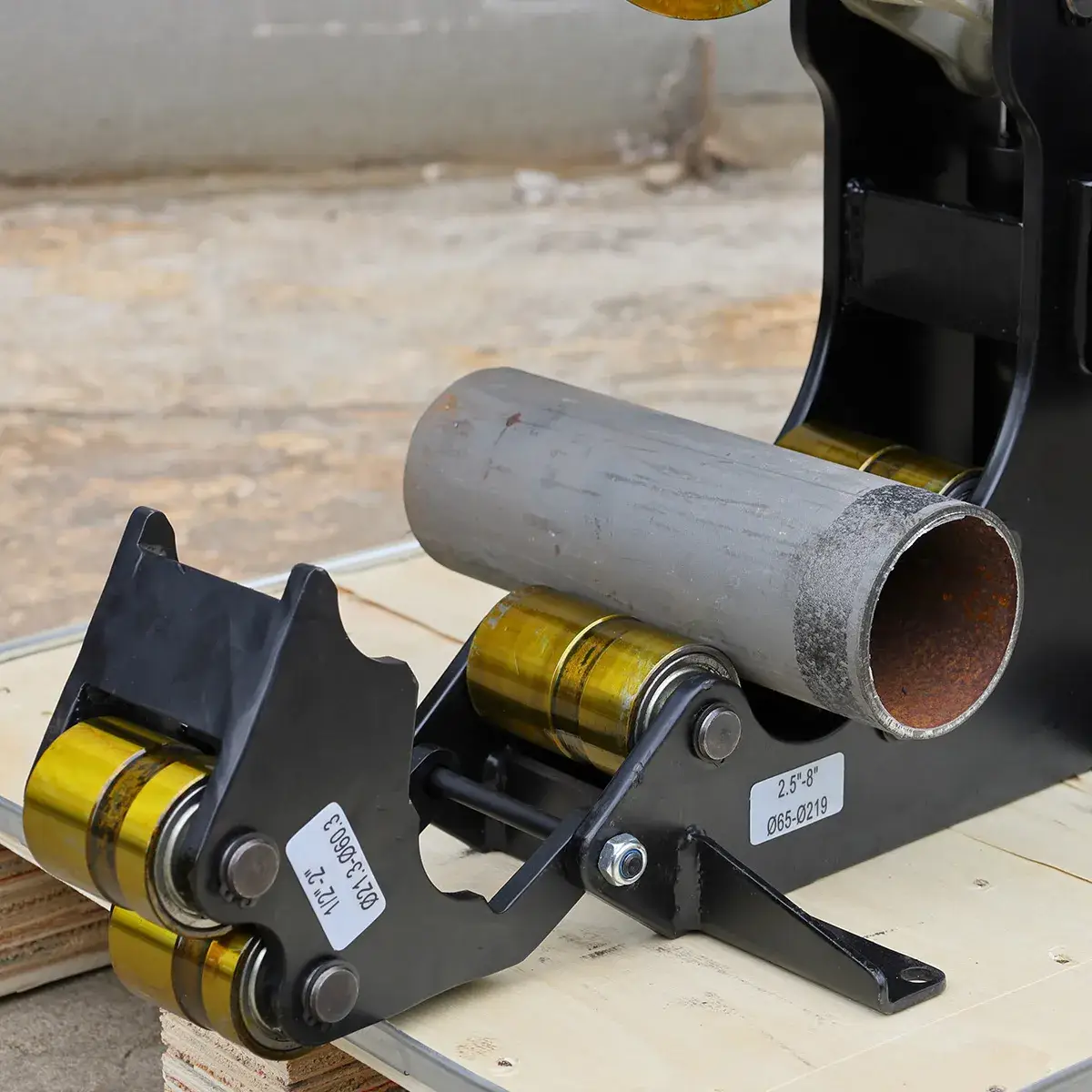

    • Pipe Stand
      Pipe Stand
      • Designed for 2"–8" pipe support and positioning.
      • Bottom adjustment screws allow height adjustment for different pipe sizes.
More
Standard Equipment
Description Net Weight
Pipe Stand 2"–8" (O.D. 60.3–219.1 mm) 4.00 kg
Cutter Wheel 1.25 kg
