Pipe Cutting Machine, Steel Pipe Cutter

It is suitable for pipe sizes from 1"–20" (SCH10–SCH40) and is widely used in construction, fire protection systems, and piping installation projects.

8"–20" Hydraulic Pipe Cutting Machine, CM-20
  • 8"–20" Hydraulic Pipe Cutting Machine, CM-20
  • 8"–20" Hydraulic Pipe Cutting Machine, CM-20
  • 8"–20" Hydraulic Pipe Cutting Machine, CM-20
  • 8"–20" Hydraulic Pipe Cutting Machine, CM-20

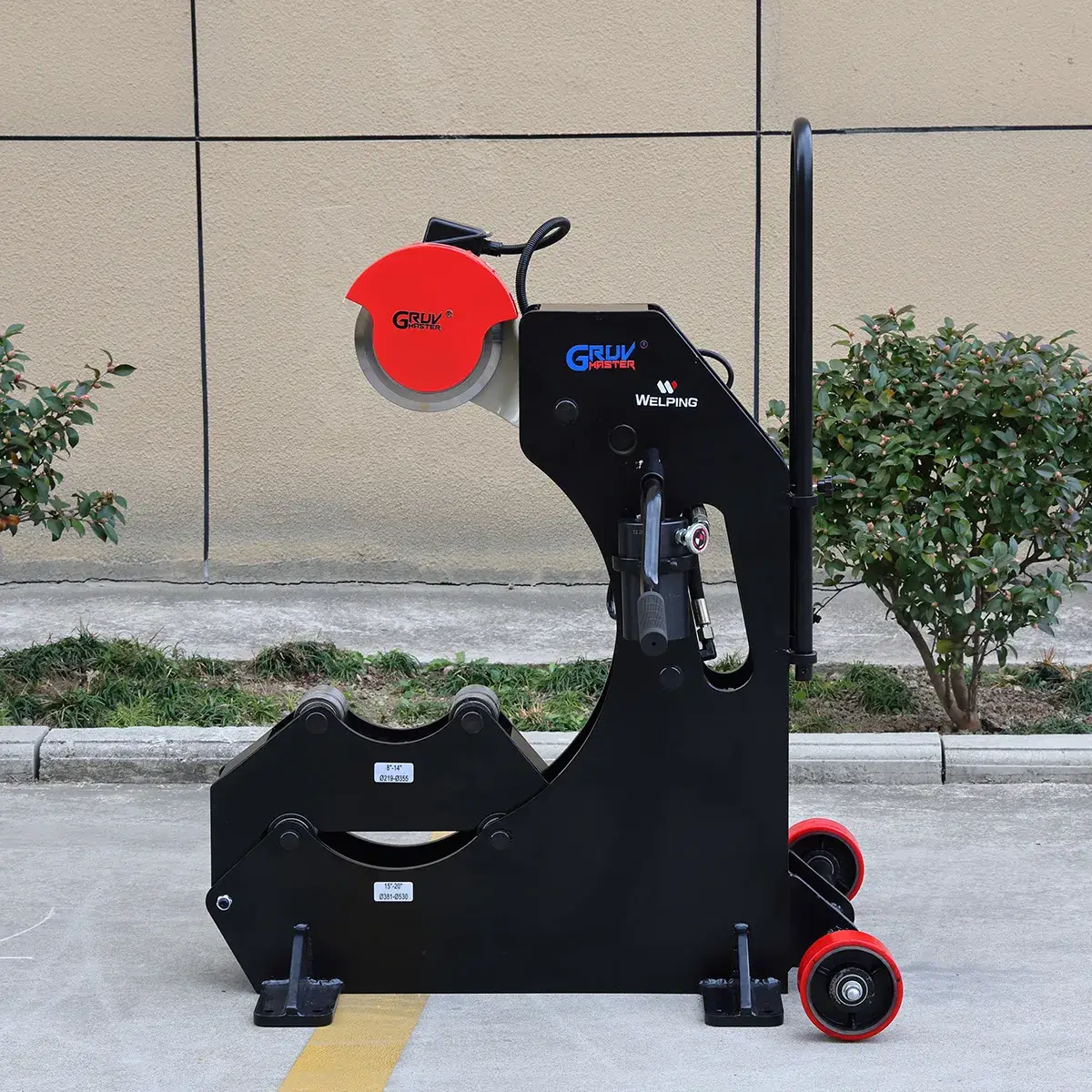

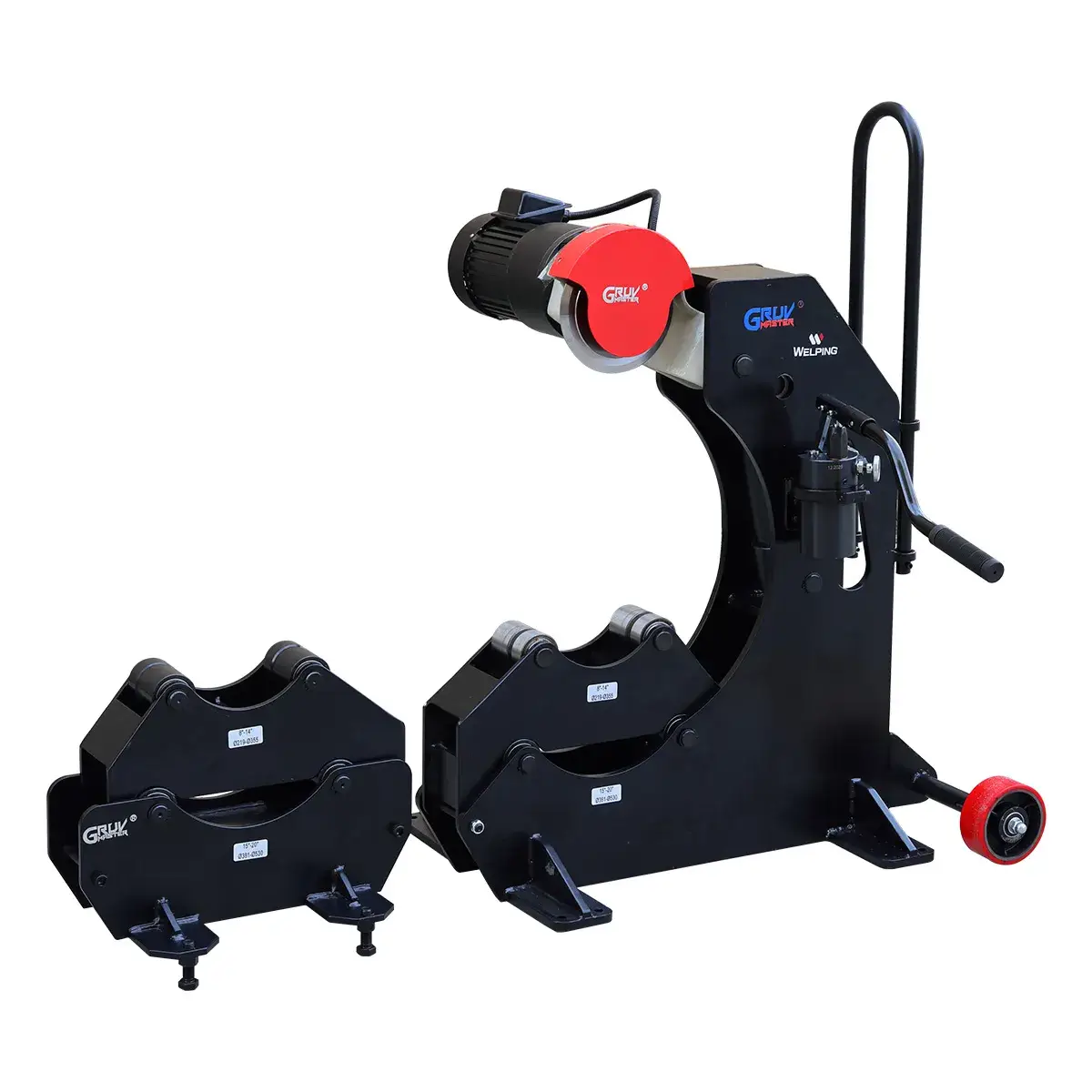

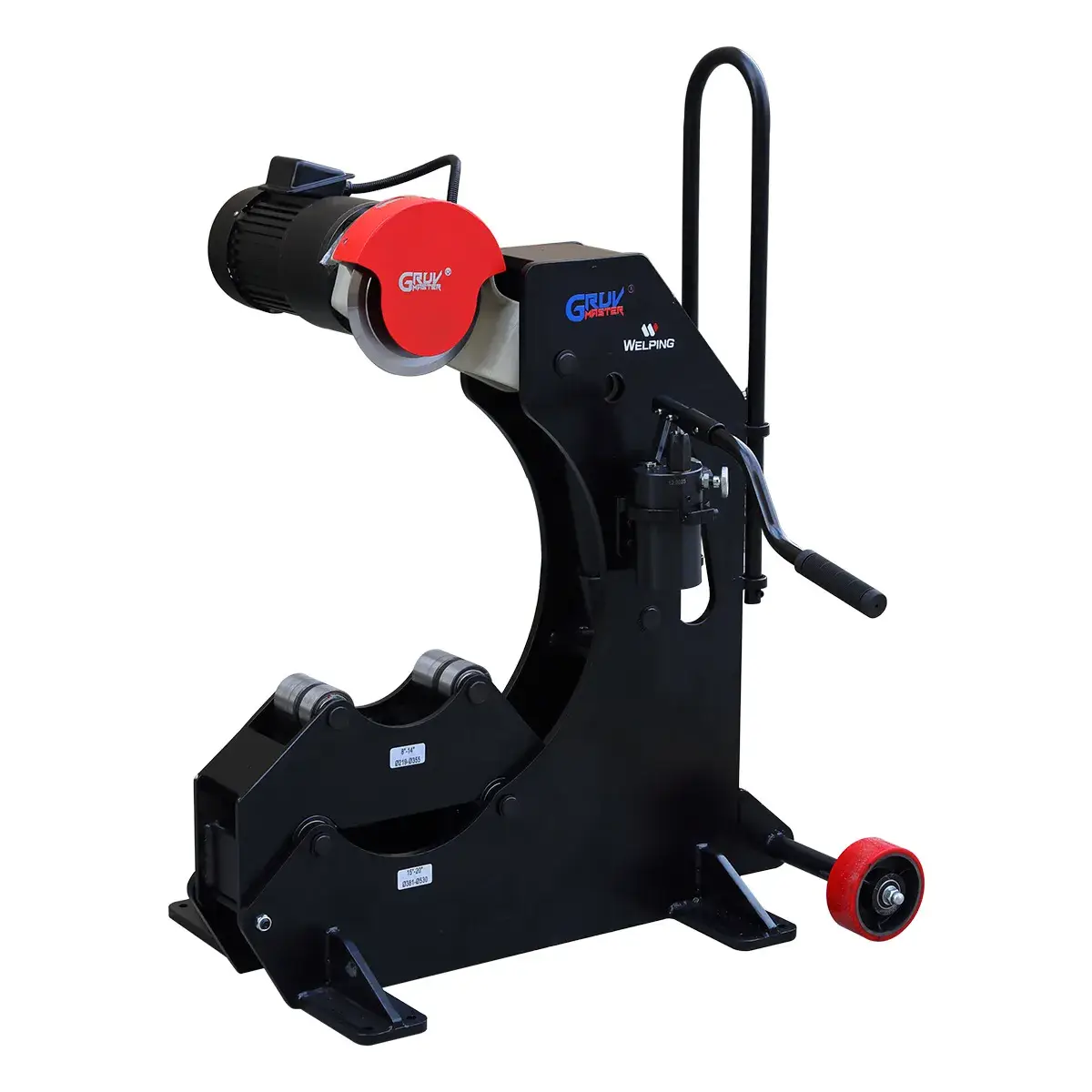

CM-20 8"–20" Hydraulic Pipe Cutting Machine

CM-20 electric hydraulic pipe cutting machine is designed for cold cutting of 8"–20" steel pipes. It features stable feed control, efficient operation, and a split-type sealed hydraulic system structure. The pipe fabricating equipment delivers clean cutting results with reliable performance and is suitable for both field installation and batch production environments.

  • Capacity 8"–20", SCH 10/40
  • Max. Wall Thickness 12 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe, PE Pipe
Request a Quote Comparison of Pipe Cutting Machines PDF
Specifications
Model CM-20
Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe, PE Pipe
Capacity 8"–20", SCH 10/40
Motor Power 1100 W
Spindle Speed 23 RPM
Power Requirements 110V/220V, 50/60Hz
Max. Wall Thickness 12 mm
Packaging Dimensions (L×W×H) 92 × 82 × 114 cm
Gross Weight 235 kg
Features

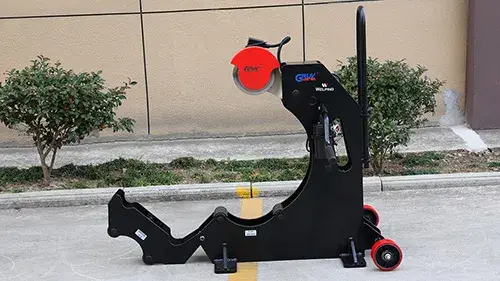

    • Cold Cutting Process
      Cold Cutting Process
      • Suitable for 8"–20" large diameter steel pipes.
      • The cutting process produces no sparks and no heat-affected zone, ensuring smooth edges and reducing the need for secondary finishing.

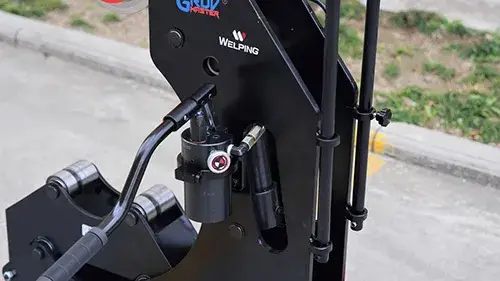

    • Split Sealed Hydraulic System
      Split Sealed Hydraulic System
      • Independent oil pump and cylinder with fully enclosed design that reduces oil contamination and maintenance frequency while extending service life.
      • Hydraulic feed is stable and controllable, improving cutting consistency and reducing operator effort for continuous operation.
    • Pipe Support Tand & Mobility Structure
      Pipe Support Tand & Mobility Structure
      • Standard heavy-duty pipe support frame ensures stable positioning during cutting.
      • Equipped with transport wheels and a handle design for easy movement and positioning, suitable for different jobsite environments.

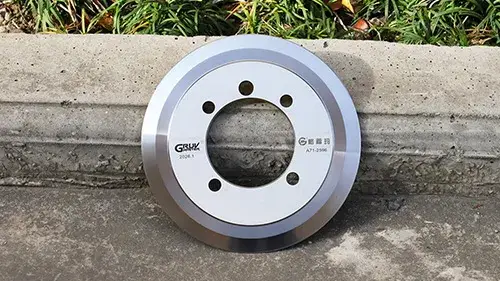

    • Upgraded Durable Blade
      Upgraded Durable Blade
      • Suitable for steel pipes, galvanized pipes, and stainless-steel pipes.
      • Compatible with multiple models and supports customization.
More
Standard Equipment
Description Net Weight

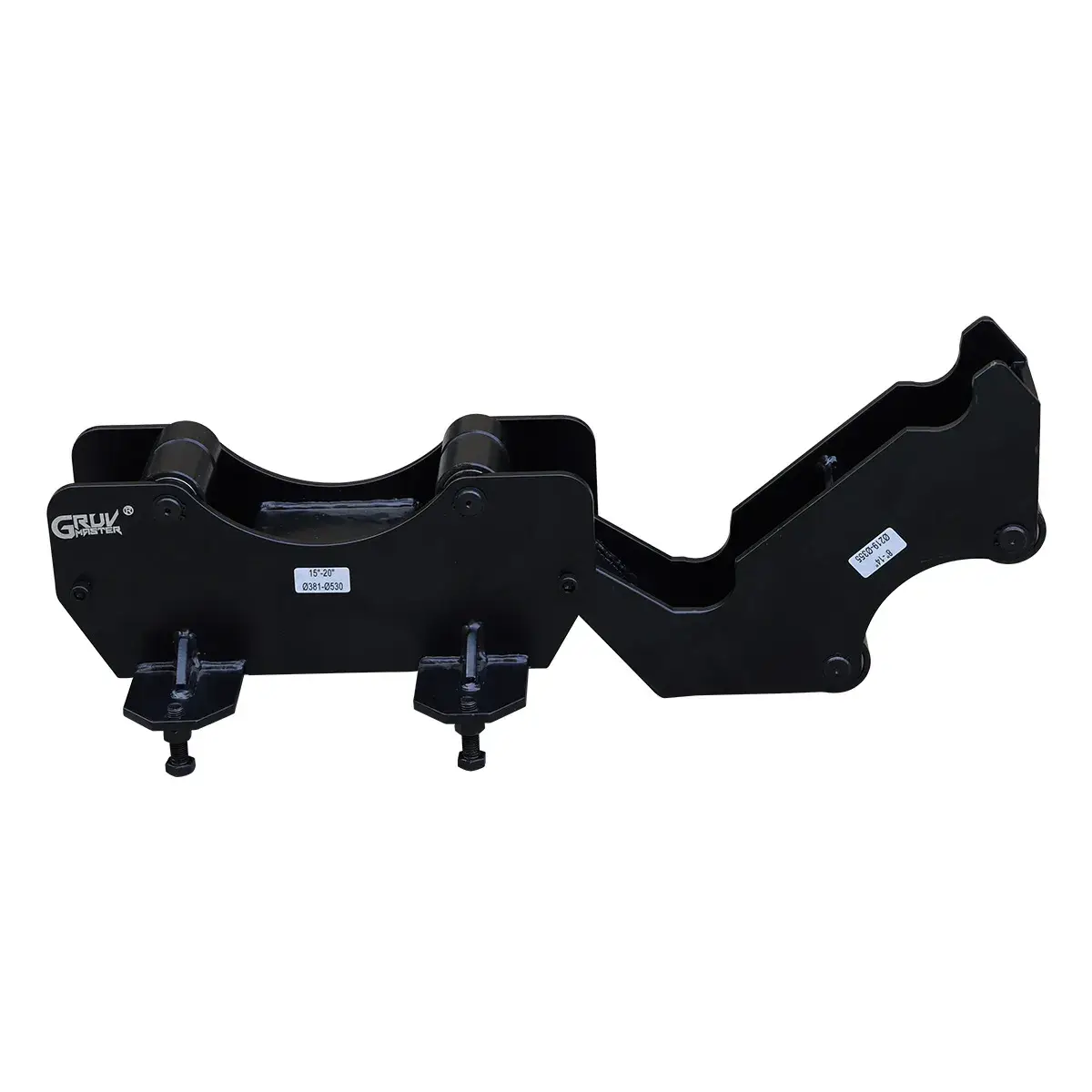

Pipe Stand 8"–20" 45.00 kg
Standard Cutter Wheel 1.25 kg
Ductile Iron Cutter Wheel 1.30 kg
Drive Unit Specifications
Phase Power Requirements
Single Phase 1100 W, 220 V, 50/60 Hz
Single Phase 1100 W, 110 V, 50/60 Hz
