2"–12" Hydraulic Pipe Cutting Machine, CM-12
  • 2"–12" Hydraulic Pipe Cutting Machine, CM-12
  • 2"–12" Hydraulic Pipe Cutting Machine, CM-12
  • 2"–12" Hydraulic Pipe Cutting Machine, CM-12
  • 2"–12" Hydraulic Pipe Cutting Machine, CM-12
  • 2"–12" Hydraulic Pipe Cutting Machine, CM-12

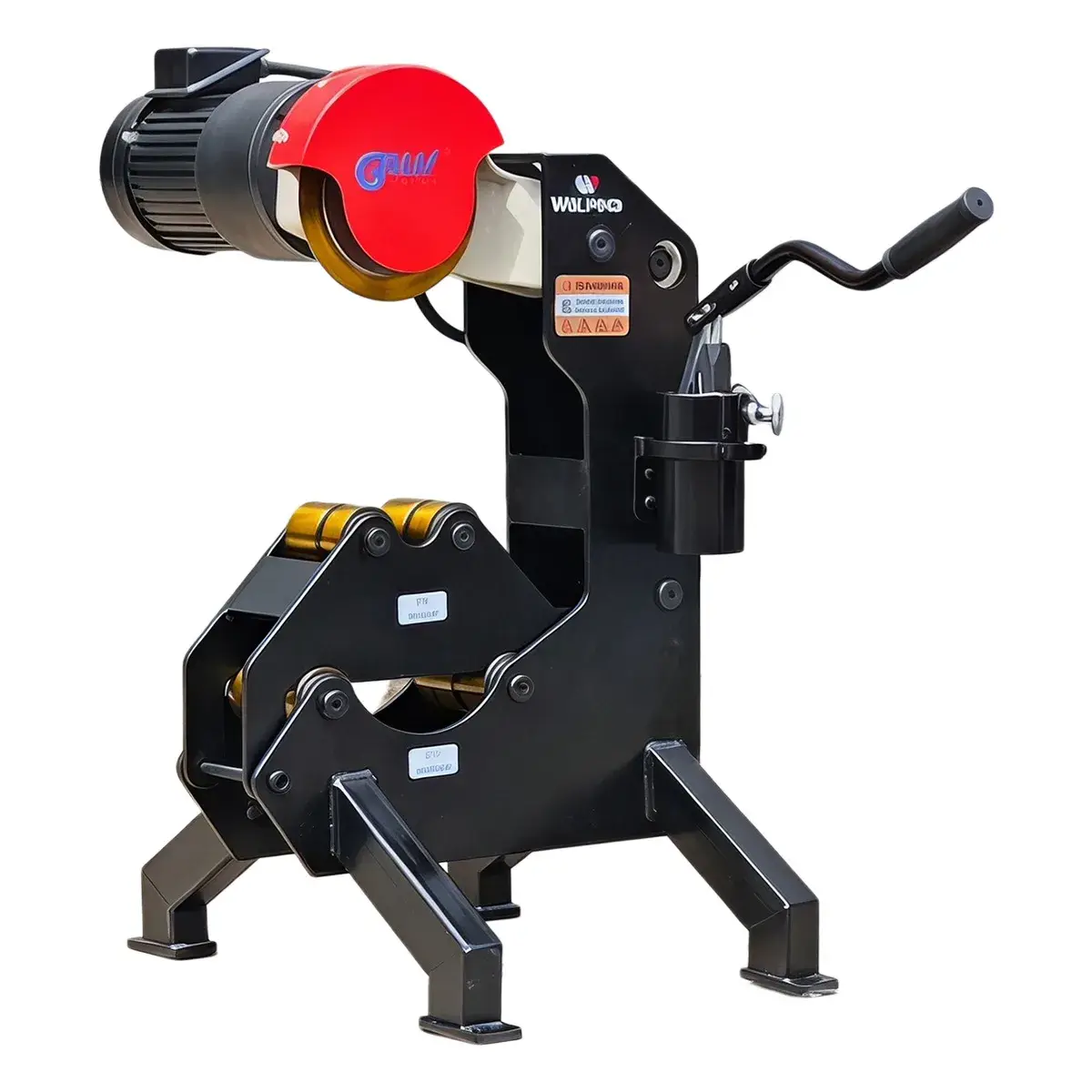

CM-12 2"–12" Hydraulic Pipe Cutting Machine

CM-12 electric hydraulic pipe cutting machine is designed for cold cutting of 2"–12" steel pipes. It uses an electric hydraulic feed system and a split-type sealed hydraulic unit to ensure stable cutting performance. The pipe cutter is equipped with upgraded durable blades suitable for steel and stainless-steel pipe cutting applications.

  • Capacity 2"–12", SCH 10/40
  • Max. Wall Thickness 10 mm
  • Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Request a Quote Comparison of Pipe Cutting Machines PDF
Specifications
Model CM-12
Applicable Materials Carbon Steel Pipe, Stainless Steel Pipe
Capacity 2"–12", SCH 10/40
Motor Power 1100 W
Spindle Speed 23 RPM
Power Requirements 110V/220V, 50/60Hz
Max. Wall Thickness 10 mm
Packaging Dimensions (L×W×H) 75 × 59 × 100 cm
Gross Weight 125 kg
Features
    • Cold Cutting Process
      Cold Cutting Process

      Suitable for 2"–12" steel pipe cutting, the cutting process produces no sparks and no heat-affected zone, ensuring smooth cut edges and reducing the need for secondary finishing.

    • Electric Hydraulic Drive

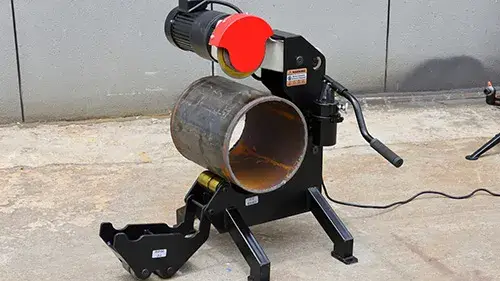

      Electric Hydraulic Drive
      • Hydraulic feed provides stable and smooth cutting control.
      • The system reduces manual effort and improves overall cutting efficiency.

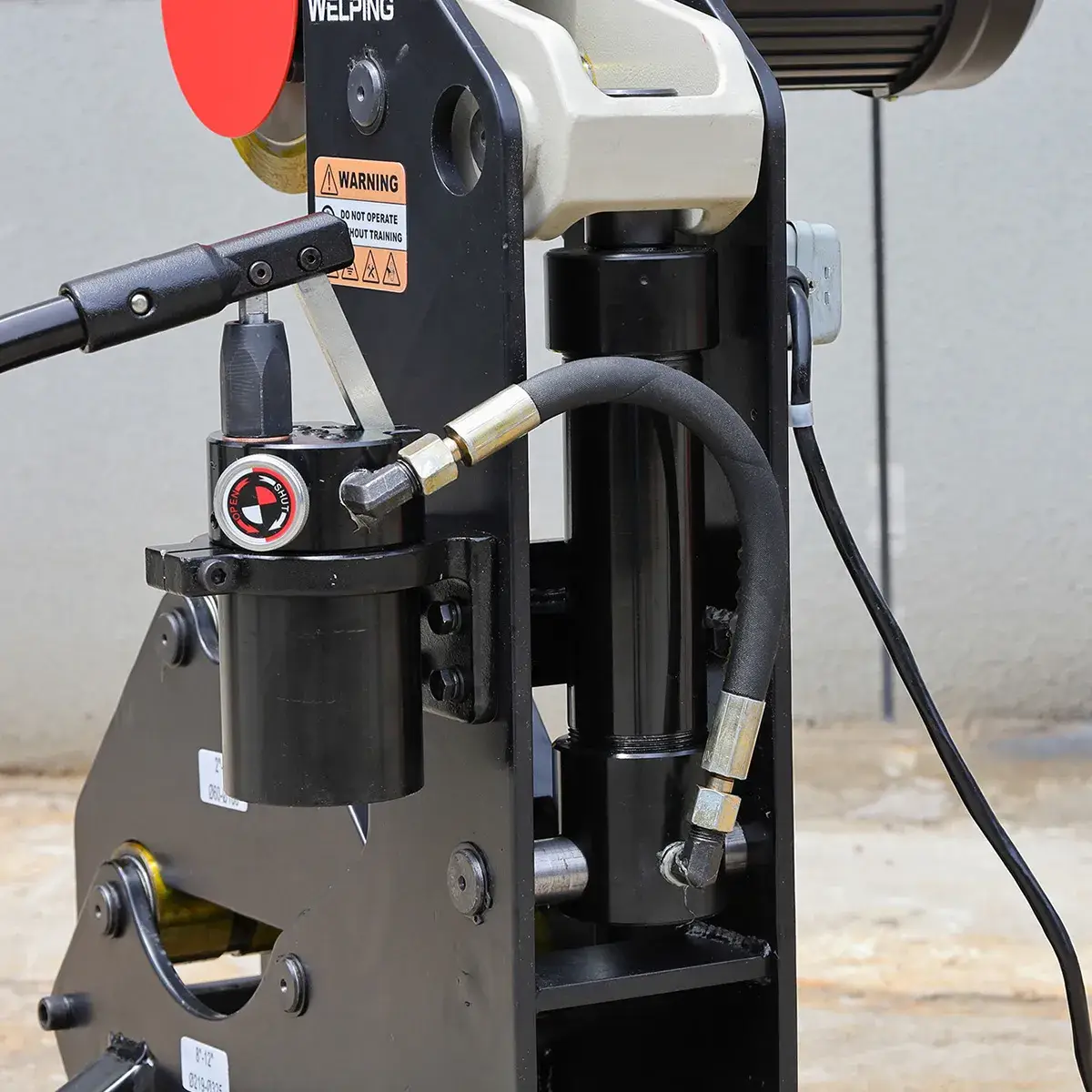

    • Split Sealed Hydraulic System

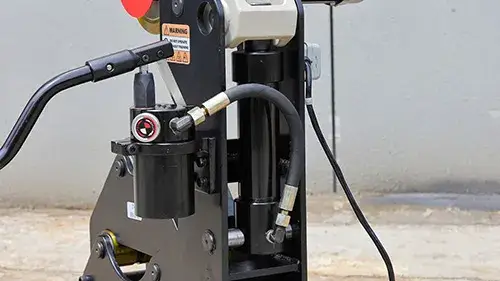

      Split Sealed Hydraulic System
      • Independent oil pump and cylinder design with fully enclosed structure.
      • It reduces oil contamination and maintenance frequency while extending service life.
    • Compact Structure

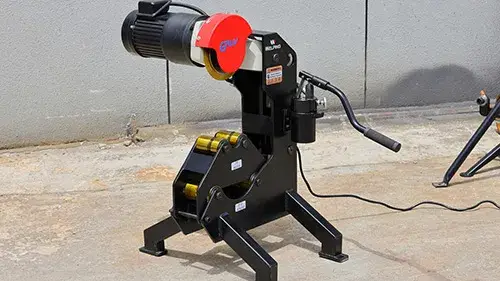

      Compact Structure
      • Compact overall design with reduced footprint.
      • Suitable for different working environments while maintaining stability and mobility.
    • Upgraded Durable Blade

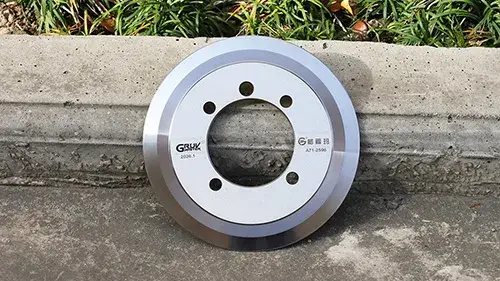

      Upgraded Durable Blade
      • Suitable for steel and galvanized steel pipes with maximum cutting wall thickness up to 13 mm.
      • Compatible with multiple models and supports customization.
    • Pipe Stand

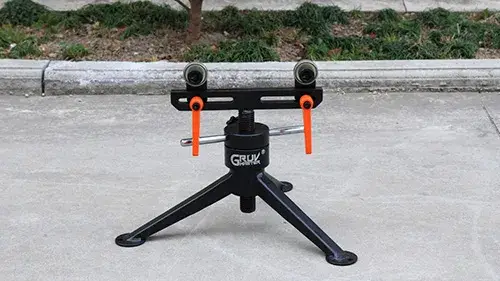

      Pipe Stand
      • Provides stable pipe positioning during cutting to reduce vibration and deviation.
      • Standard roller support system, with optional universal ball-type support available.
More
Standard Equipment
Description Net Weight
Pipe Stand 2"–12" 4.00 kg
Cutter Wheel 1.25 kg
Optional Equipment
Description Net Weight
Ductile Iron Cutter Wheel 1.25 kg
Ordering Information
Phase Power Requirements
Single Phase 1100 W, 220 V, 50/60 Hz
Single Phase 1100 W, 110 V, 50/60 Hz
