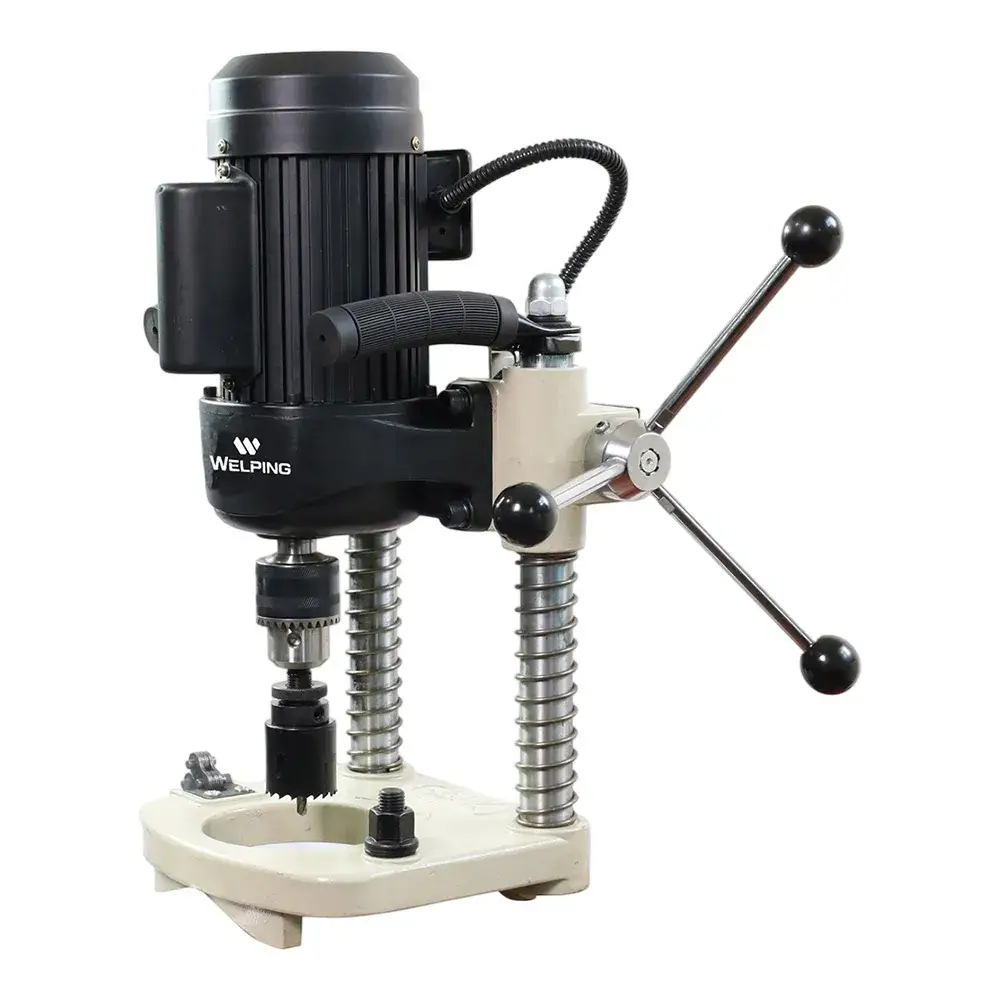

HC-2X 4.5" Pipe Hole Cutting Machine
HC-2X is a pipe hole cutting machine with a maximum hole diameter of 114 mm, suitable for steel pipes, aluminum pipes, PVC pipes, and other materials. Equipped with a gear reduction motor, the machine operates smoothly with stable power output. The optimized transmission structure also helps reduce operating noise, ideal choice for pipe installation and maintenance work where a quieter working environment is required.
- Pipe Cutting Capacity Up to 4" (O.D. 114.3 mm)

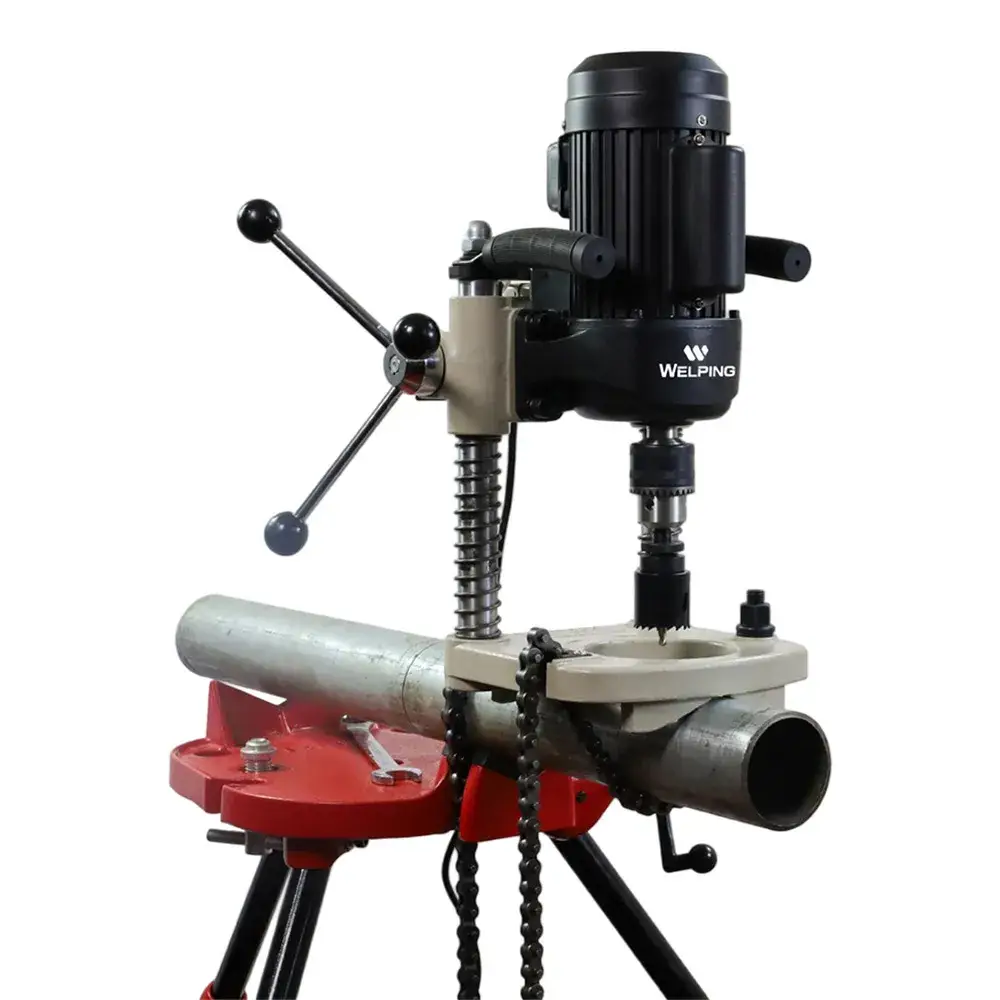

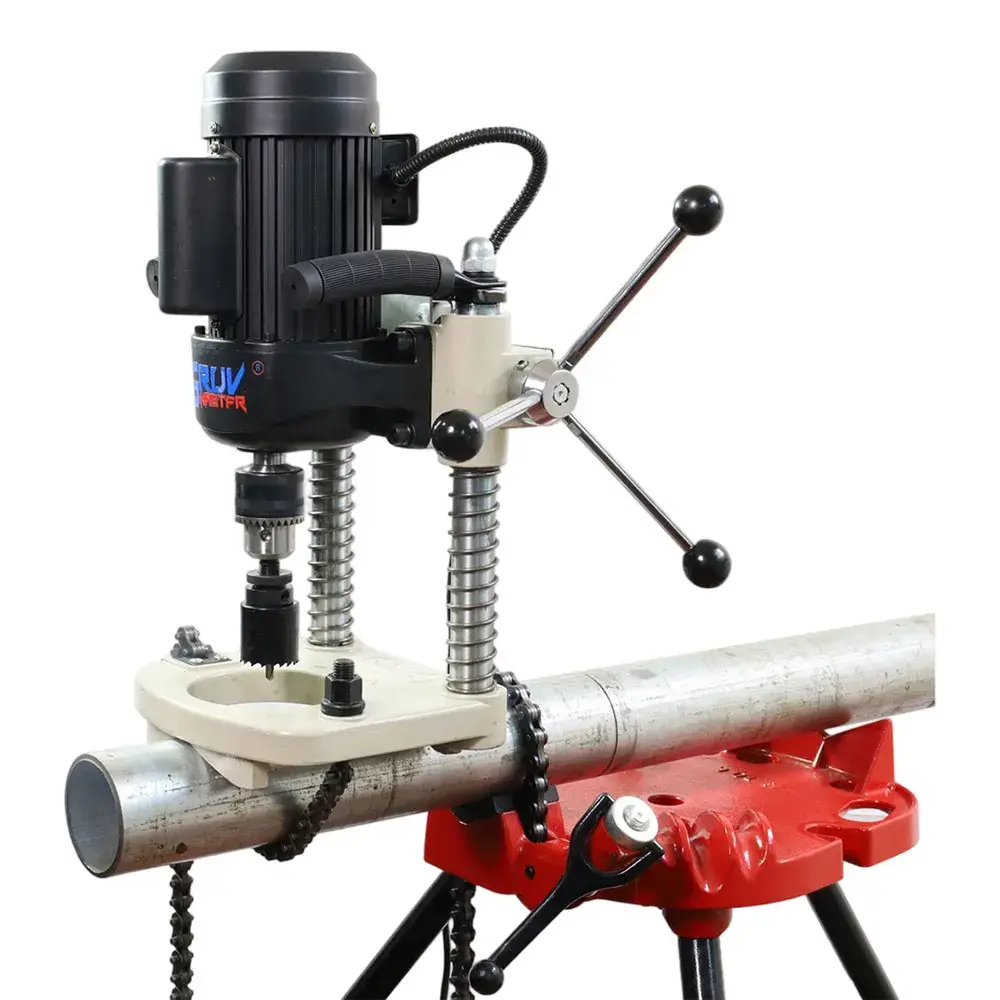

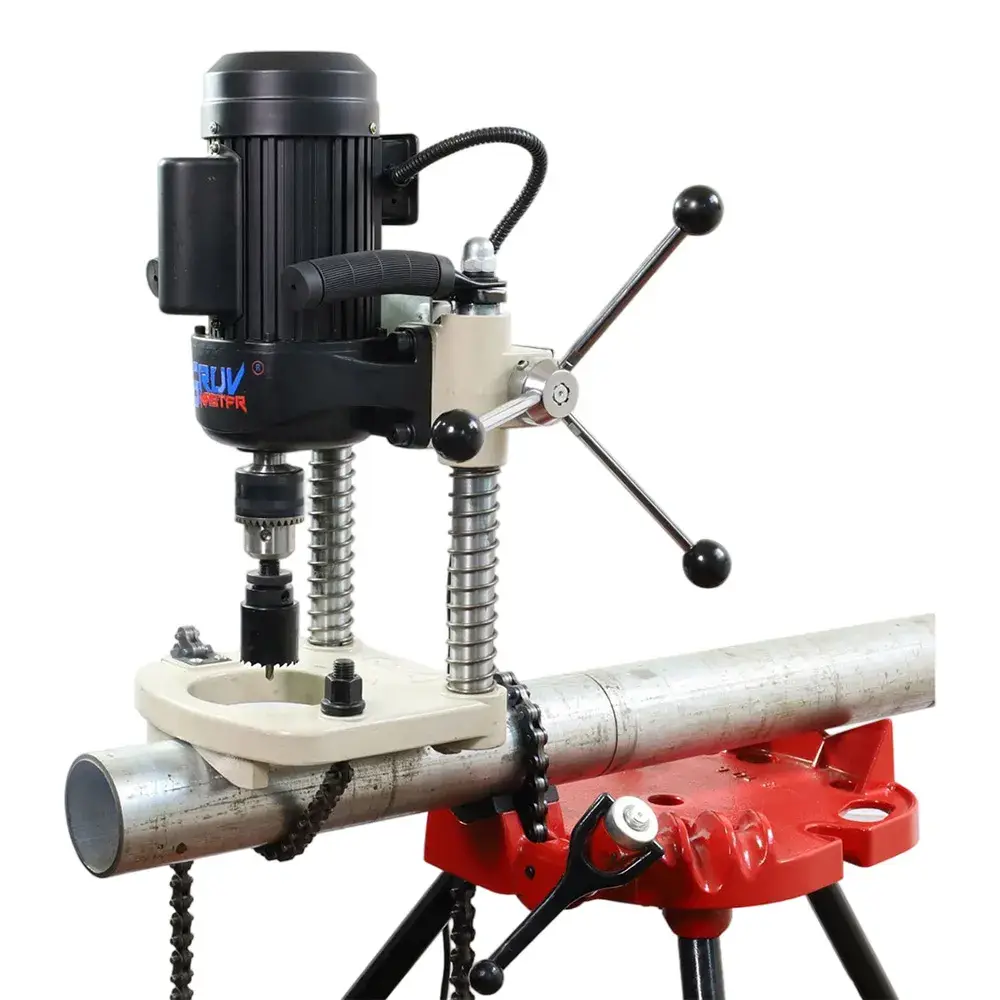

- Pipe Clamping Capacity 1 1/4"–8" (O.D. 32–219.1 mm)
- Applicable Materials Carbon Steel, PE Pipe
| Model | |
| Applicable Materials | Carbon Steel, PE Pipe |
| Pipe Cutting Capacity | Up to 4" (O.D. 114.3 mm) |
| Pipe Clamping Capacity | 1 1/4"–8" (O.D. 32–219.1 mm) |

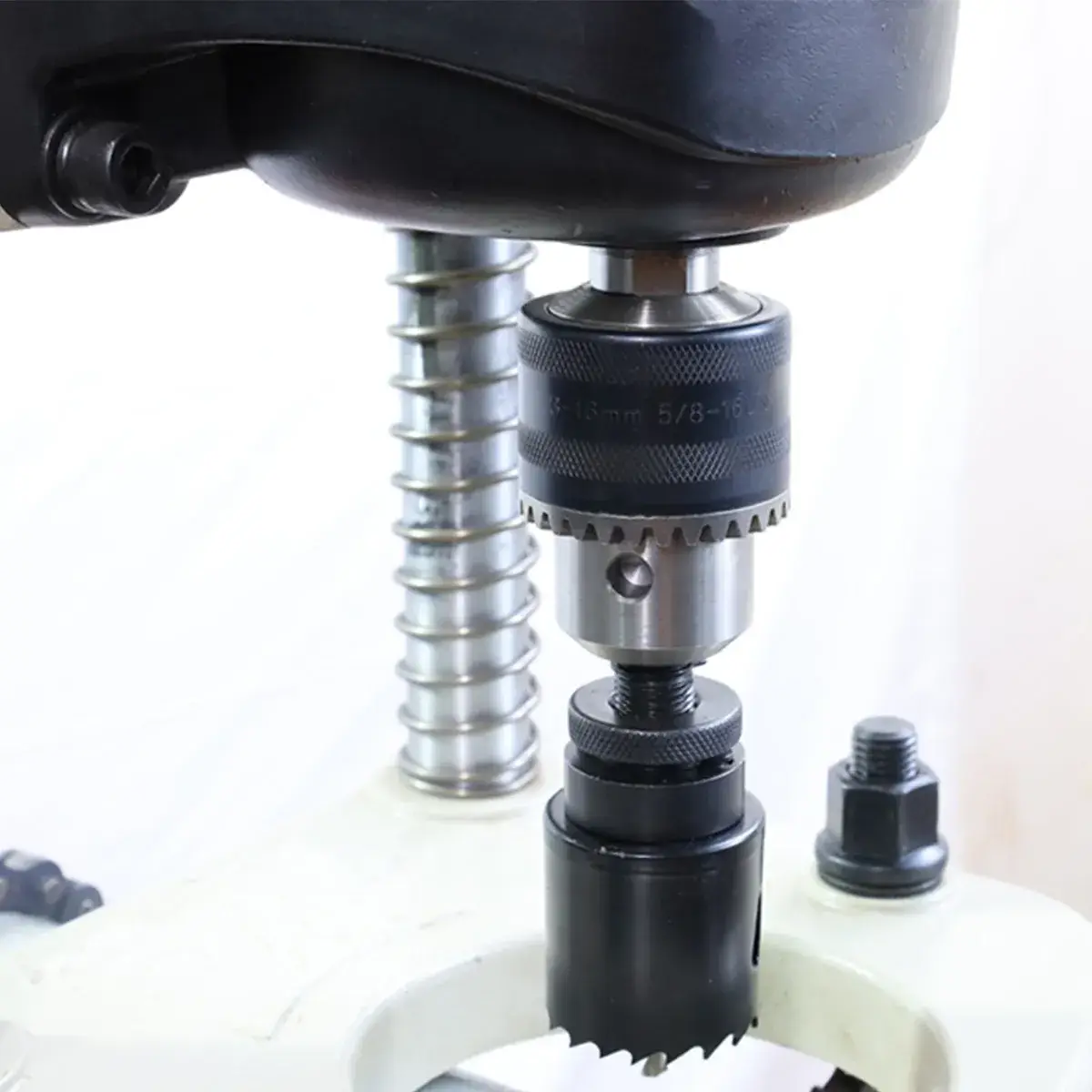

| Drill Chuck Capacity | 1/16"–5/8" (2–16 mm) |
| Chuck Speed | 110 RPM |
| Electrical Rating | 8 A @ 220–240 V / 15 A @ 120 V |
| Packaging Dimensions (L×W×H) | 32 × 32 × 62 cm |
| Gross Weight | 20 kg |
-
Efficient OperationThe pipe hole cutting machine completes hole cutting tasks quickly, reducing operation time during installation and maintenance work.
-
Portable DesignThe compact structure allows easy transportation and use across different job sites. It is a practical tool for pipe installation and maintenance applications.
-
High PrecisionEquipped with a leveling system and positioning cutting technology, the hole cutter helps control hole location and diameter accuracy while reducing material waste.
| Phase | Power Requirements |
| Single Phase | 700 W, 220 V, 50/60 Hz |
| Single Phase | 700 W, 110 V, 50/60 Hz |
