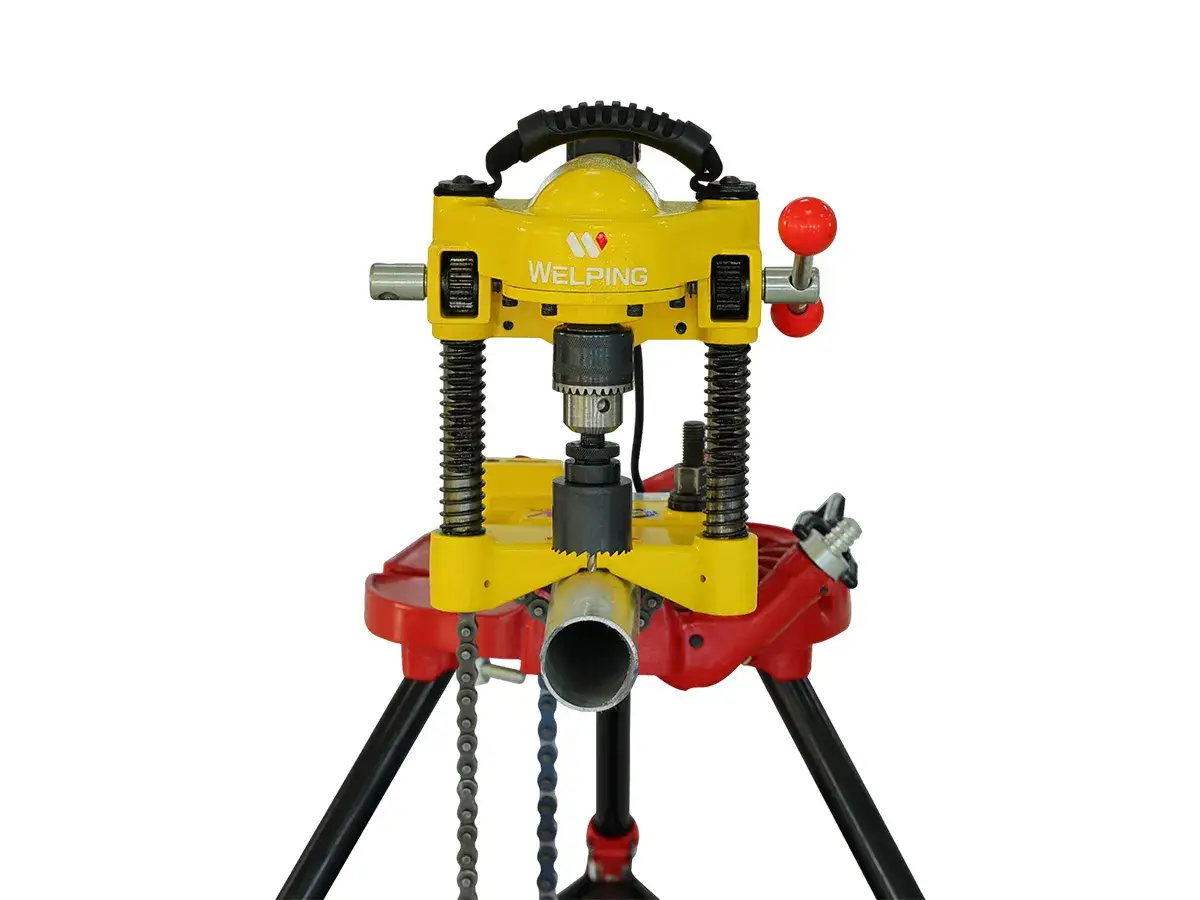

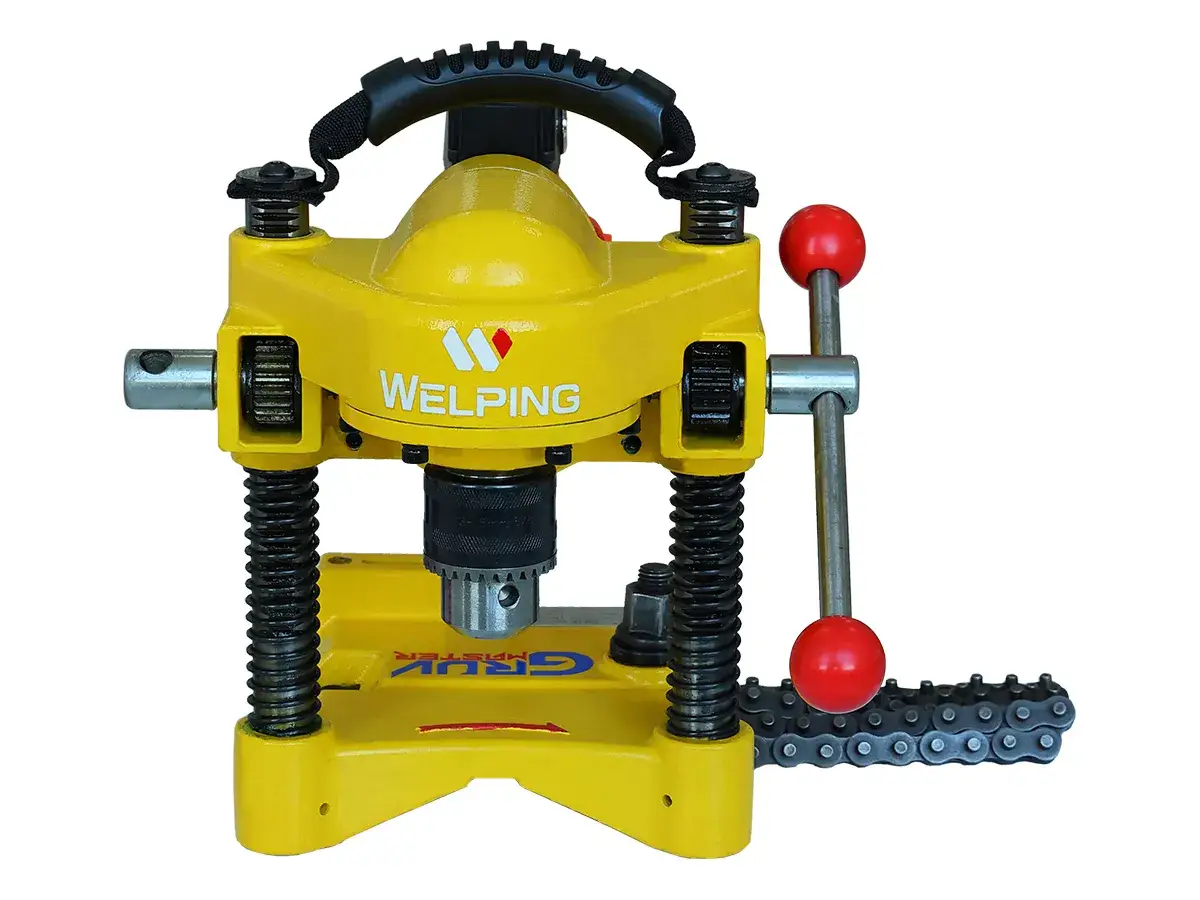

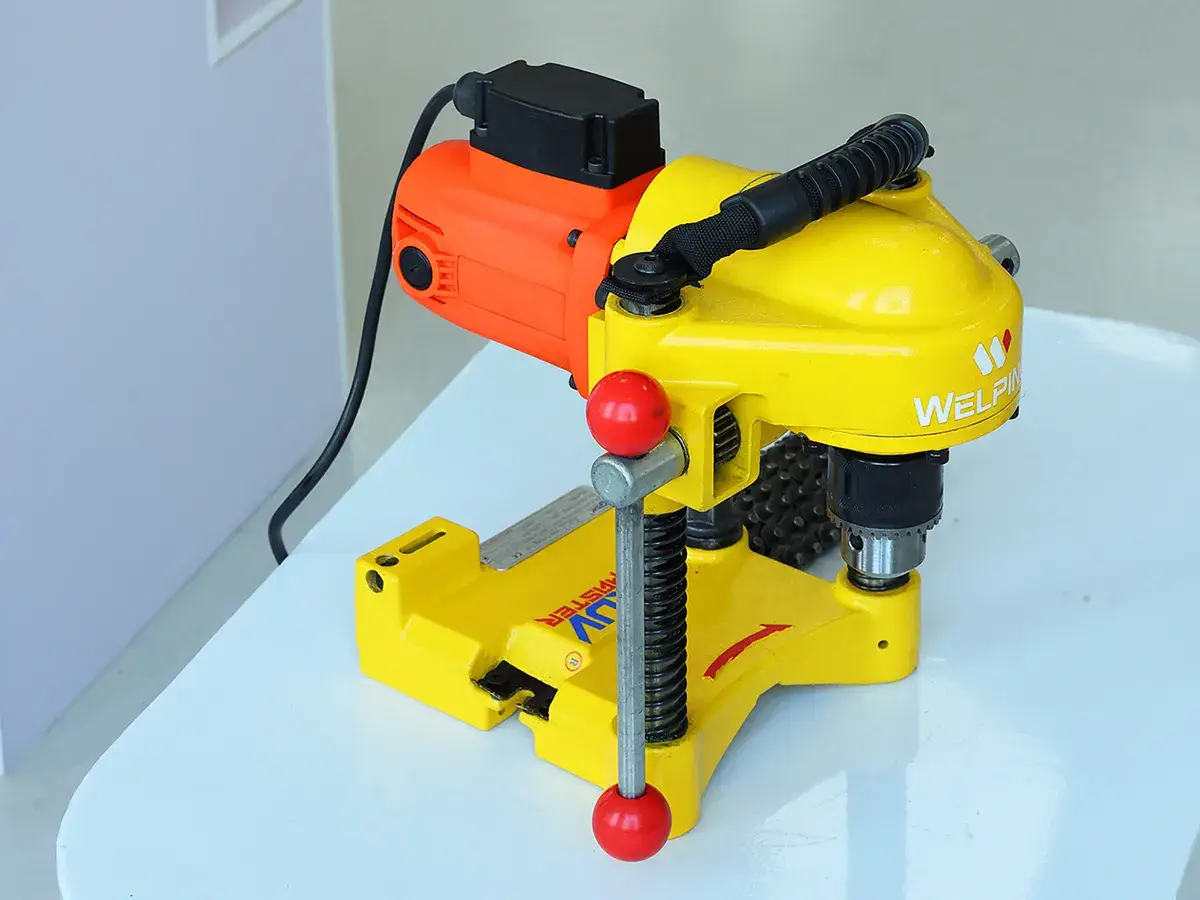

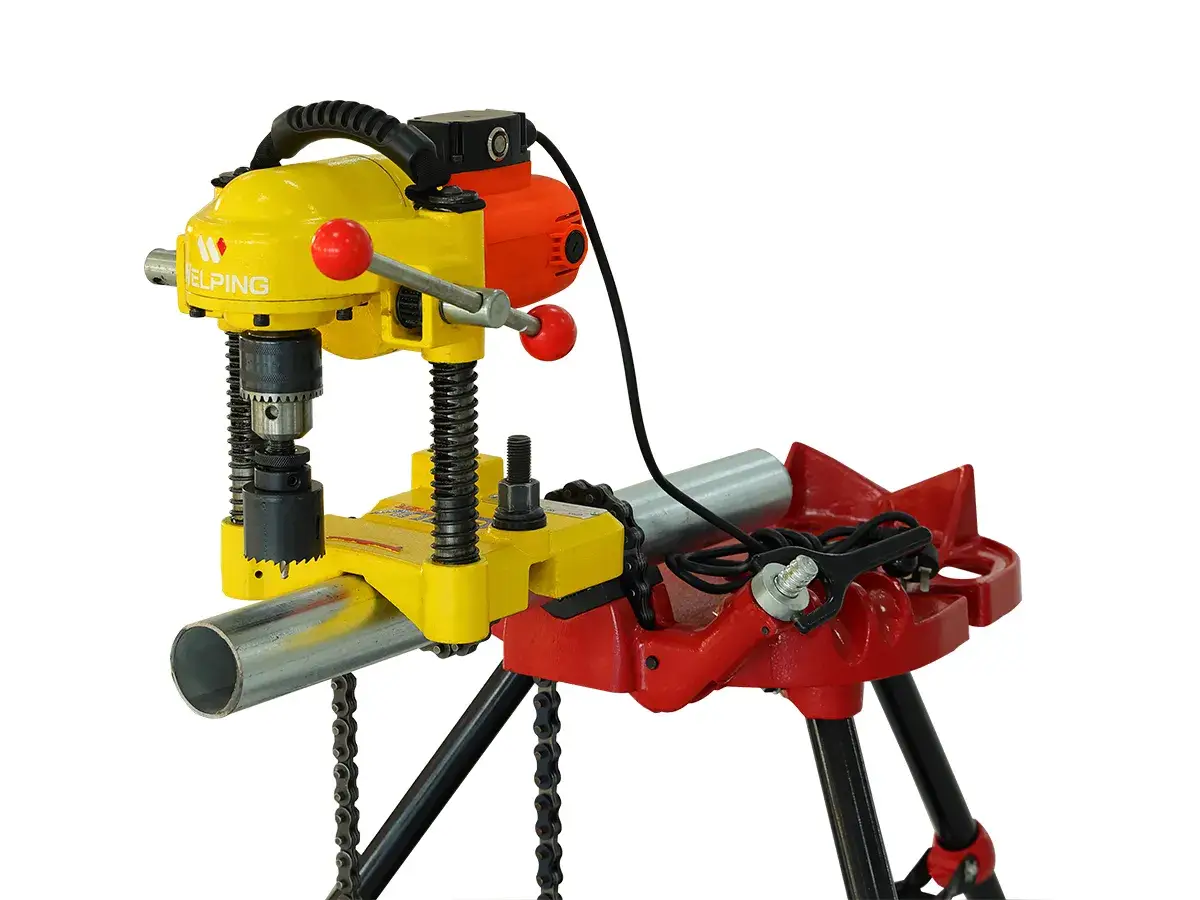

HC-1X 4.5" Pipe Hole Cutting Machine
HC-1X is a portable pipe hole cutting machine designed for creating holes up to 114 mm in steel pipes, carbon steel pipes, aluminum pipes, and other materials. With stable positioning and simple operation, it is suitable for hole cutting tasks in fire protection, HVAC, and building pipeline installation and maintenance projects.
- Pipe Cutting Capacity Up to 4" (O.D. 114.3 mm)
- Pipe Clamping Capacity 1 1/4"–8" (O.D. 32–219.1 mm)
- Applicable Materials Steel, Carbon Steel, Aluminum Pipe
Specifications
| Model | |
| Applicable Materials | Steel, Carbon Steel, Aluminum Pipe |
| Pipe Cutting Capacity | Up to 4" (O.D. 114.3 mm) |
| Pipe Clamping Capacity | 1 1/4"–8" (O.D. 32–219.1 mm) |
| Drill Chuck Capacity | 1/16"–5/8" (2–16 mm) |
| Chuck Speed | 240 RPM |
| Electrical Rating | 8 A @ 220–240 V / 15 A @ 120 V |
| Packaging Dimensions (L×W×H) | 37 × 33 × 33 cm |
| Gross Weight | 16 kg |
Features
-
- The compact structure allows easy transport and use across different job sites.
- It is a practical tool for pipe installation and maintenance operations.

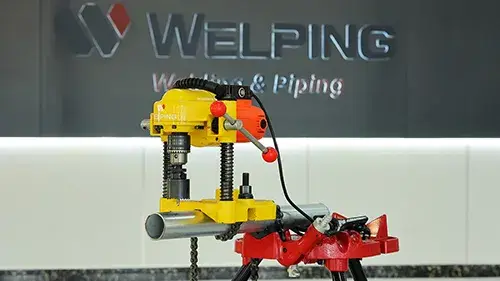

Portable Design -

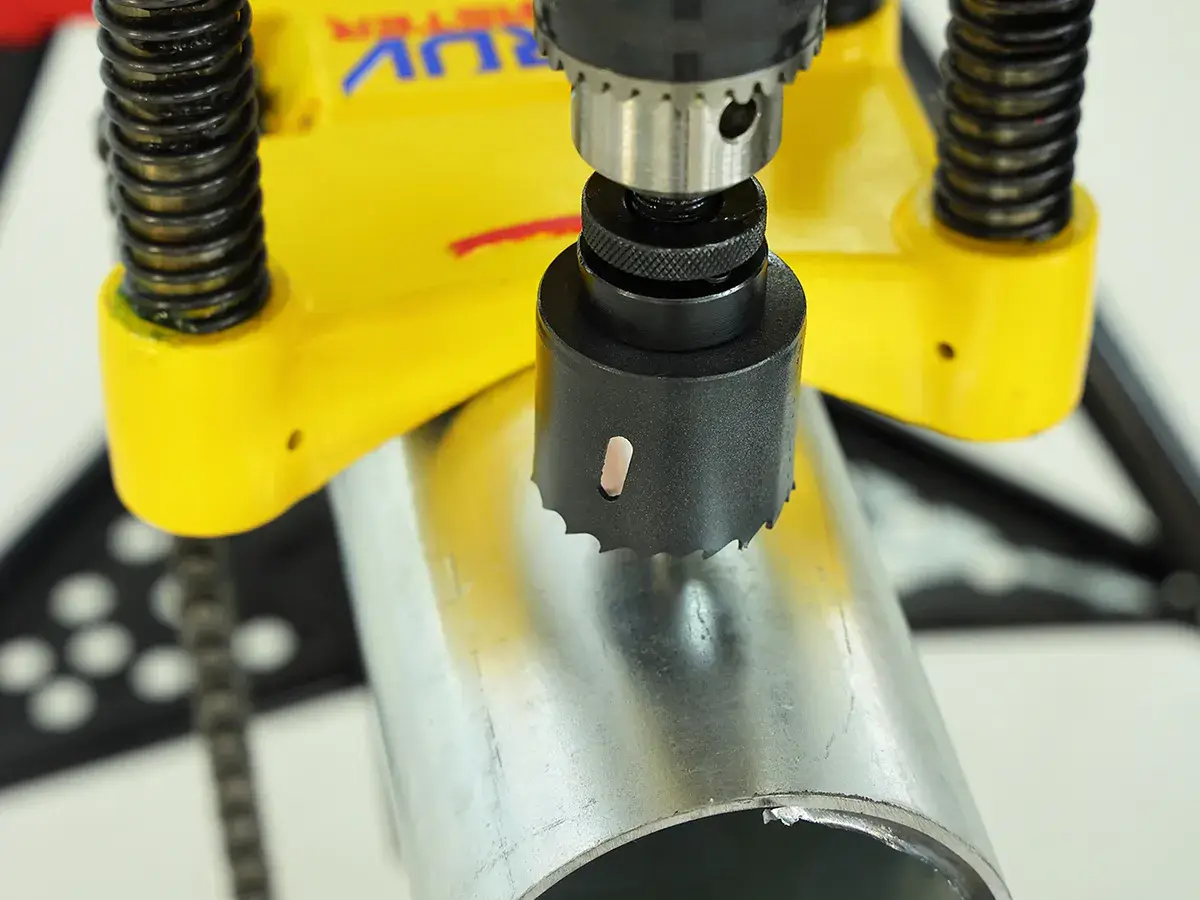

High PrecisionEquipped with a leveling system and positioning cutting technology, the cutting machine helps control hole location and diameter accuracy while reducing material waste.
More
Ordering Information
| Phase | Power Requirements |
| Single Phase | 1800 W, 220 V, 50/60 Hz |
| Single Phase | 1800 W, 110 V, 50/60 Hz |
